1996 Kawasaki KLX250R Gear Change Drum/shift Fork Diagram

← All diagrams

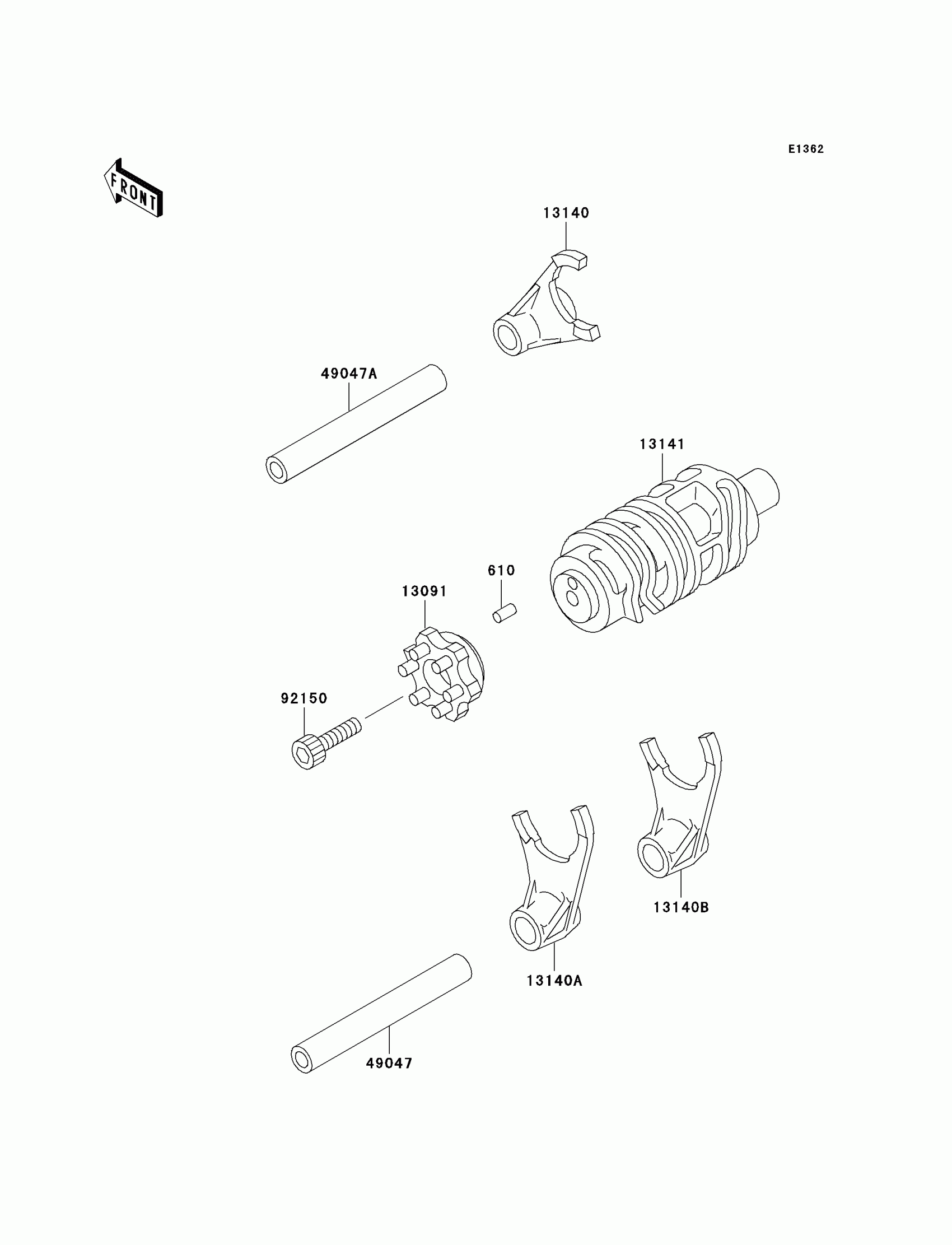

Find the part on the Gear Change Drum/shift Fork diagram for your 1996 Kawasaki KLX250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Kawasaki KLX250R Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

610

ROLLER,4X8

610A0408

1

$3.43

In stock

13091

HOLDER,CHANGE DRUM

13091-1722

1

$54.24

In stock

13140

FORK-SHIFT,5TH&TOP

13140-1216

1

$86.34

In stock

13140A

FORK-SHIFT,2ND&3RD

13140-1217

1

$86.34

In stock

13140B

FORK-SHIFT,LOW&4TH

13140-1218

1

$86.34

In stock

13141

DRUM-CHANGE

13141-1181

1
Out of stock

49047

ROD-SHIFT,L=106.7

49047-1056

1

$21.76

In stock

49047A

ROD-SHIFT,L=71.7

49047-1057

1

$16.34

In stock

92150

BOLT,6X18

92150-1645

1

$2.92

In stock
