1996 Kawasaki KLX250R Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1996 Kawasaki KLX250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

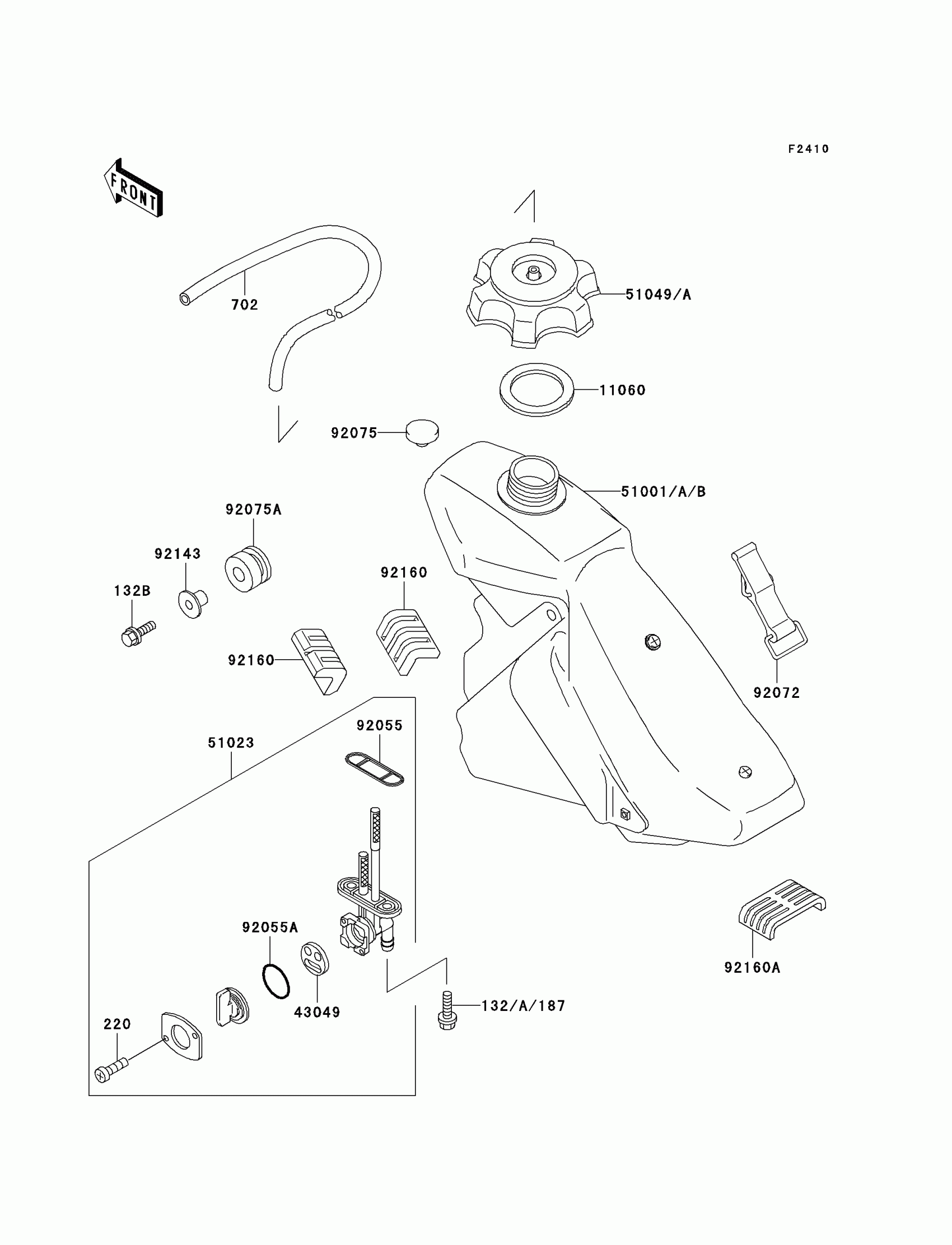

1996 Kawasaki KLX250R Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock

132B

BOLT-FLANGED-SMALL

132G0620

1
Out of stock

220

SCREW-PAN-CROS,3X8

220B0308

1
Out of stock

702

TUBE-RUBBER,5X350

702A05350

1
Out of stock

11060

GASKET,FUEL TANK CAP

11060-1340

1
Out of stock

43049

PACKING,TAP VALVE

43049-1066

1
Out of stock

51001A

TANK-COMP-FUEL,L.GREEN

51001-1470-6W

1
Out of stock

51023

TAP-ASSY,FUEL

51023-1198

1
Out of stock

51049A

CAP-TANK,FUEL

51049-1104

1
Out of stock

92055

RING-O,FUEL TAP PACKING

92055-1112

1
Out of stock

92055A

RING-O,TAP LEVER

92055-1419

1
Out of stock

92072

BAND,FUEL TANK

92072-1229

1
Out of stock

92075

DAMPER RUBB MAIN STND

92075-005

1
Out of stock

92075A

DAMPER,RUBBER

92075-1123

1
Out of stock

92143

COLLAR

92143-1353

1
Out of stock

92160

DAMPER,FUEL TANK

92160-1328

1
Out of stock

92160A

DAMPER,FUEL TANK,RR

92160-1397

1
Out of stock
