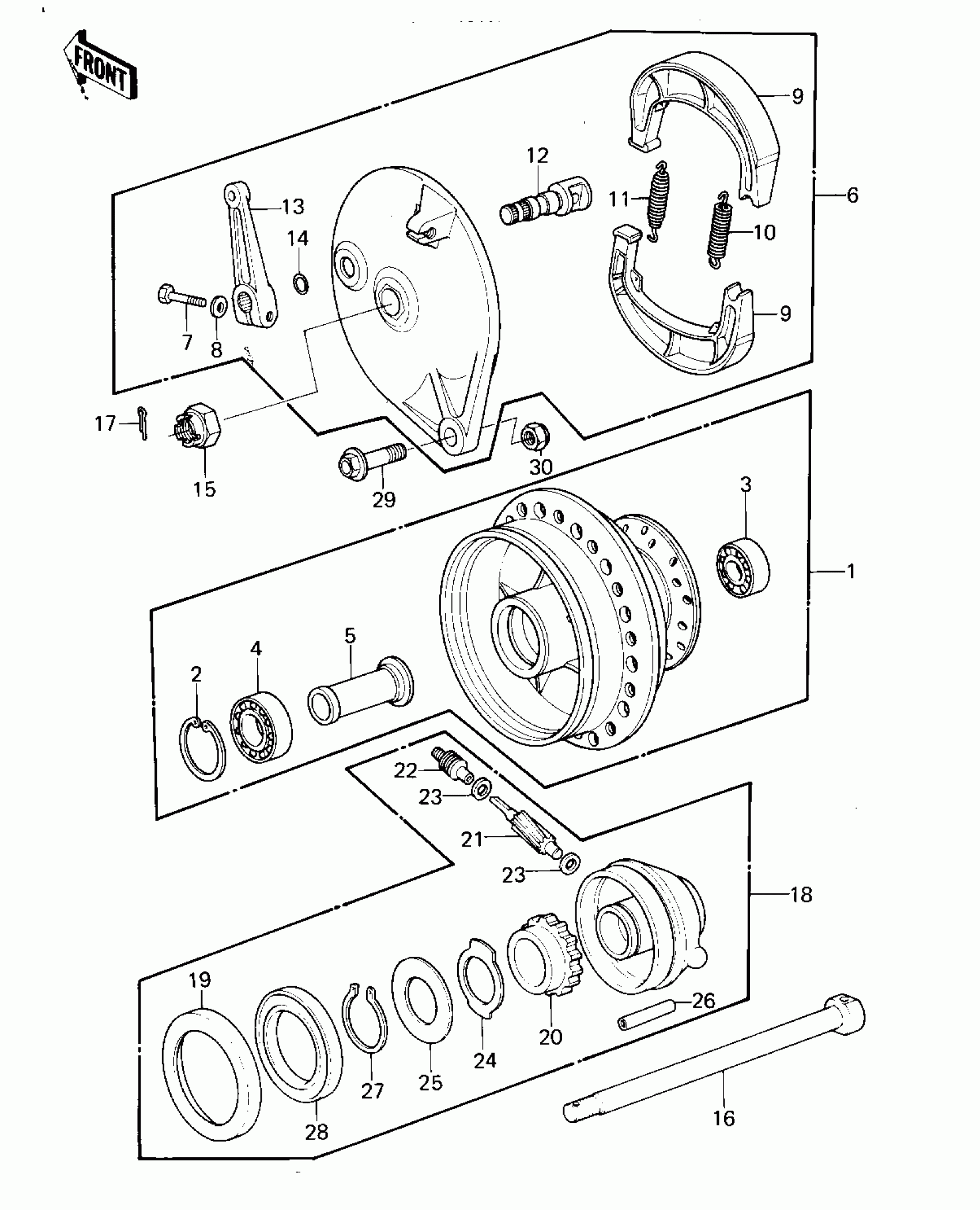

Find the part on the Front Hub/brake diagram for your 1980 Kawasaki KLX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Kawasaki KLX250 Front Hub/brake Diagram

#

Description
Price
Status
Order Qty

1

DRUM-ASSY,FR BRK

41034-1016

$411.43

In stock

2

CIRCLIP-TYPE-C,37MM

481J3700

Out of stock

3

BEARING-BALL,#6201LUC3/2A

601B6201U

Out of stock

4

BEARING-BALL,#6301U

601B6301U

Out of stock

5

COLLAR,FRONT BEARING

92027-1073

Out of stock

6

PANEL-ASY,FR BRK

41035-1024

$337.23

In stock

7

BOLT-UPSET

112G0622

Out of stock

8

WASHER-PLAIN-SMALL,6MM

410B0600

Out of stock

9

SHOE,BRAKE

41048-015

Out of stock

10

SPRING,BRAKE SHOE

92081-1766

Out of stock

11

SPRING,BRAKE SHOE

92081-1550

Out of stock

12

$27.66

In stock

13

$58.44

In stock

14

O RING,12MM

670B2012

Out of stock

15

NUT-CASTLE

320G1200

Out of stock

16

AXLE,FRONT

41068-1025

Out of stock

17

PIN,COTTER,3.2X28

550D3228

Out of stock

18

CASE ASSY,SPEED GEAR

41078-009

Out of stock

19

DUST COVER

41042-013

Out of stock

20

GEAR,SPEEDOMETER

41059-024

$37.43

In stock

21

GEAR-METER SCREW,8T

41060-015

Out of stock

22

$18.66

In stock

23

WASHER,5.1X9X0.4

41063-001

$4.17

In stock

24

$5.25

In stock

25

WASHER,19.5X26X0.8

41065-004

Out of stock

26

PIN,SPRING

41082-001

Out of stock

27

CIRCLIP-TYPE-C,19MM

480J1900

Out of stock

28

OIL SEAL

654A405208

Out of stock

29

BOLT,10X45

92001-1182

Out of stock

30

NUT,LOCK,10MM

92019-021

Out of stock
