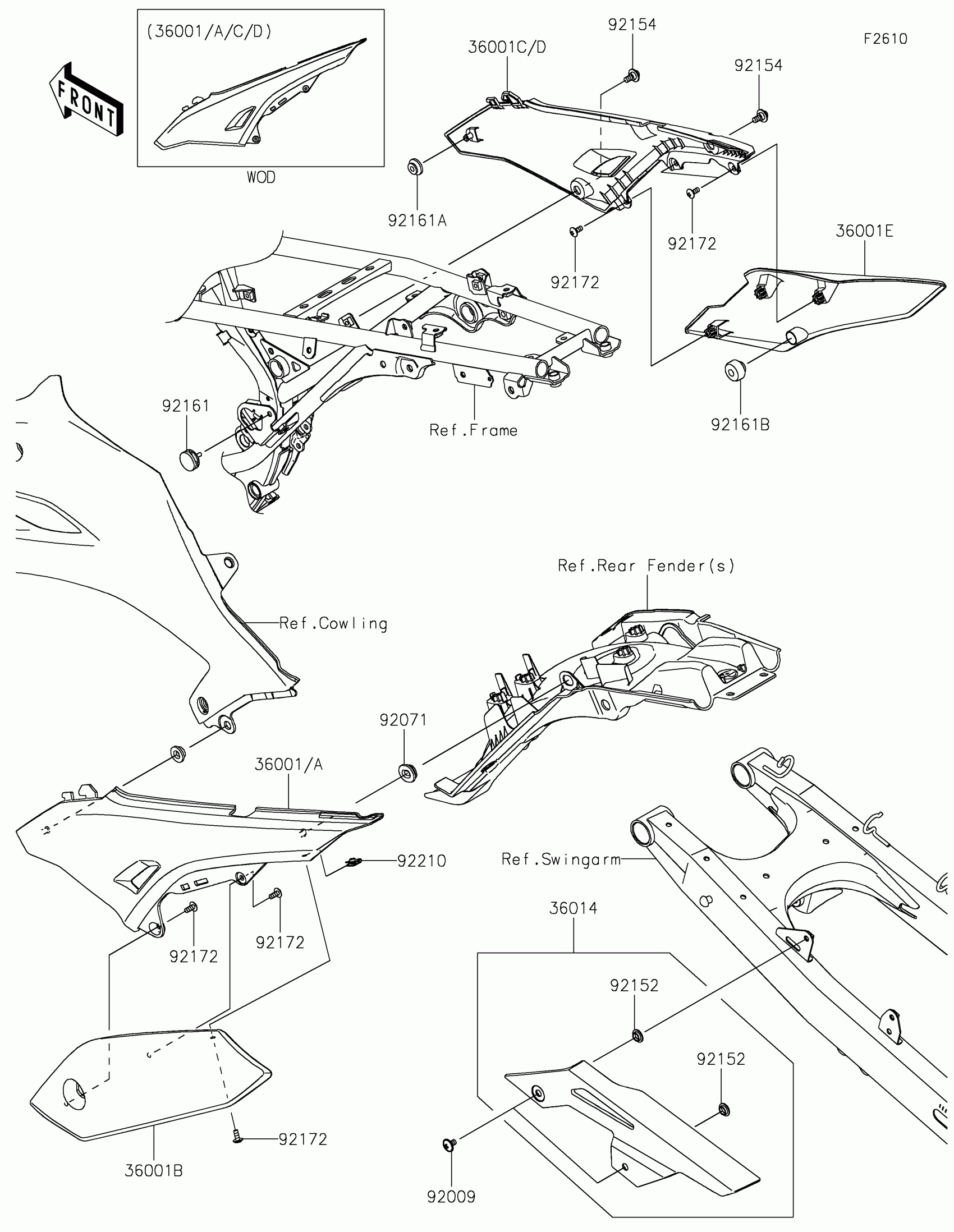

Kawasaki KLX230SM ABS Side Covers/Chain Cover Diagram

Description

Price

36001

COVER-SIDE,LH,UPP,B.GRAY

36001-0761-67A

$43.00

36001A

COVER-SIDE,LH,UPP,P.BLUE

36001-0761-67E

$43.00

36001B

COVER-SIDE,LH,LWR,EBONY

36001-0762-6C

$34.62

36001C

COVER-SIDE,RH,UPP,B.GRAY

36001-0763-67A

$44.37

36001D

COVER-SIDE,RH,UPP,P.BLUE

36001-0763-67E

$44.37

36001E

COVER-SIDE,RH,LWR,EBONY

36001-0764-6C

$37.18

36014

CASE-CHAIN

36014-0560

$16.37

92009

SCREW,6X10

92009-1729

$0.26

92071

GROMMET

92071-0795

$1.22

92152

COLLAR,8.8X16X4

92152-1731

$4.95

92154

BOLT,FLANGED,6X13

92154-4411

$2.84

92161

DAMPER

92161-0581

$1.66

92161A

DAMPER

92161-1531

$2.11

92161B

DAMPER

92161-1783

$4.78

92172

SCREW,5X12

92172-1095

Unavailable

92210

NUT,CLIP,5MM

92210-1666

$7.59
