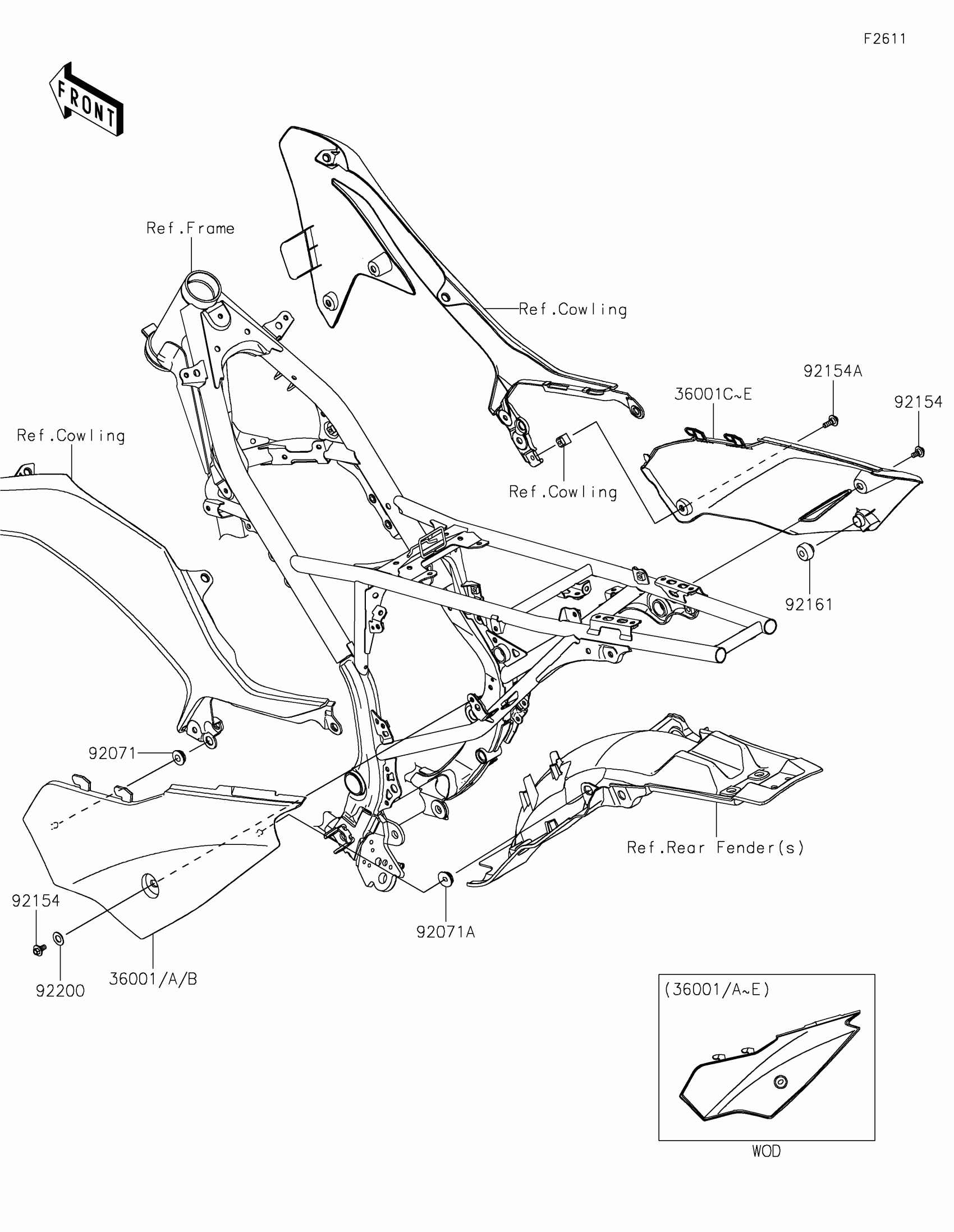

Kawasaki KLX230R S Side Covers Diagram

Description

Price

36001

COVER-SIDE,LH,B.WHITE

36001-0678-266

$49.16

36001A

COVER-SIDE,LH,L.GREEN

36001-0678-290

$49.16

36001B

COVER-SIDE,LH,B.GRAY

36001-0678-67A

$49.16

36001C

COVER-SIDE,RH,B.WHITE

36001-0693-266

$42.97

36001D

COVER-SIDE,RH,L.GREEN

36001-0693-290

$49.16

36001E

COVER-SIDE,RH,B.GRAY

36001-0693-67A

$49.16

92071

GROMMET

92071-0794

$1.22

92071A

GROMMET

92071-0795

$1.22

92154

BOLT,FLANGED,6X9

92154-0546

$2.84

92154A

BOLT,FLANGED,6X28

92154-1739

$1.95

92161

DAMPER

92161-1783

$4.78

92200

WASHER,10.5X20X1.0

92200-0870

$0.83
