2024 Kawasaki KLX230R S Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2024 Kawasaki KLX230R S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

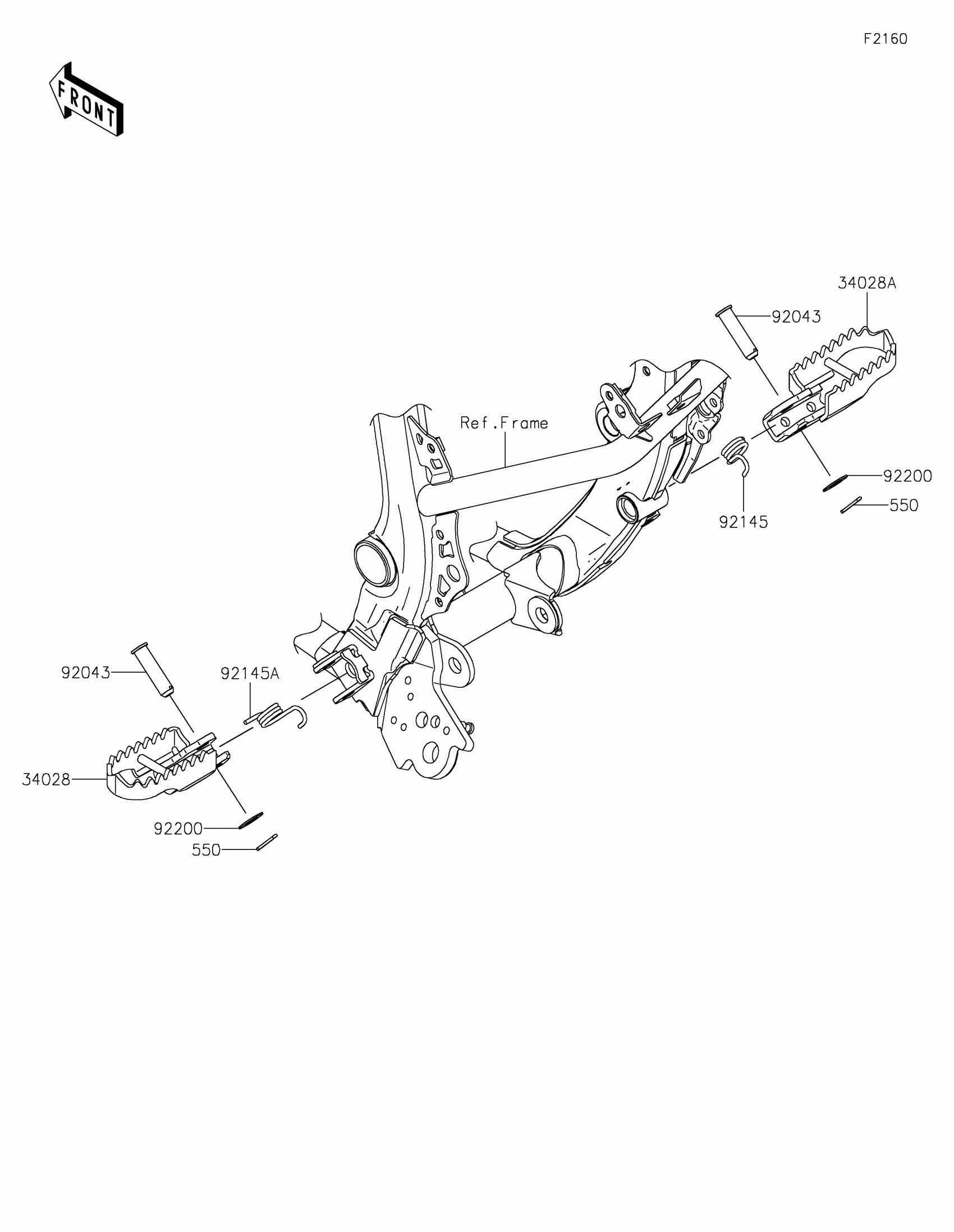

2024 Kawasaki KLX230R S Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34028

STEP,LH

34028-0369

1
Out of stock

34028A

STEP,RH

34028-0371

1
Out of stock

92043

PIN,10X35

92043-0744

1
Out of stock

92145

SPRING,STEP,RH

92145-2300

1
Out of stock

92145A

SPRING,STEP,LH

92145-2301

1
Out of stock

92200

WASHER,10.5X20X1.0

92200-0870

1
Out of stock

550

PIN-COTTER,2.0X18

550AA2018

1
Out of stock
