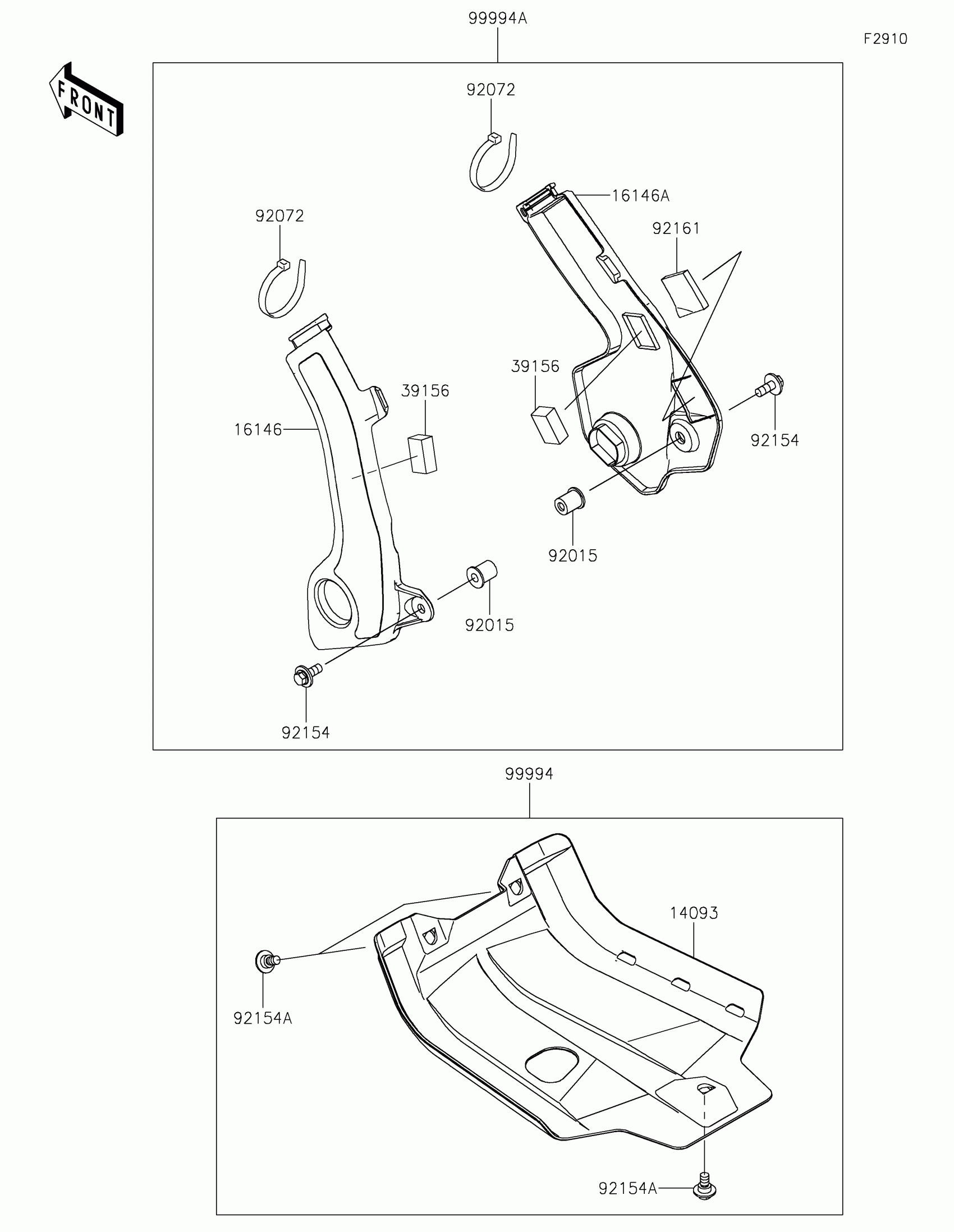

Find the part on the Accessory diagram for your 2024 Kawasaki KLX230R S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki KLX230R S Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,SKID PLATE

14093-1040

1
Out of stock

16146

COVER-ASSY,FRAME,LH

16146-0867

1
Out of stock

16146A

COVER-ASSY,FRAME,RH

16146-0868

1
Out of stock

39156

PAD,15X25X10

39156-2489

1
Out of stock

92015

NUT

92015-1700

1
Out of stock

92072

BAND,L=202

92072-1195

1
Out of stock

92154

BOLT,FLANGED-SMALL,6X16

92154-1183

1
Out of stock

92154A

BOLT,FLANGED,6X9

92154-4084

1
Out of stock

92161

DAMPER

92161-1591

1

$0.93

In stock

99994

SKID PLATE

99994-1246

1
Out of stock

99994A

COVER-FRAME

99994-1466

1
Out of stock
