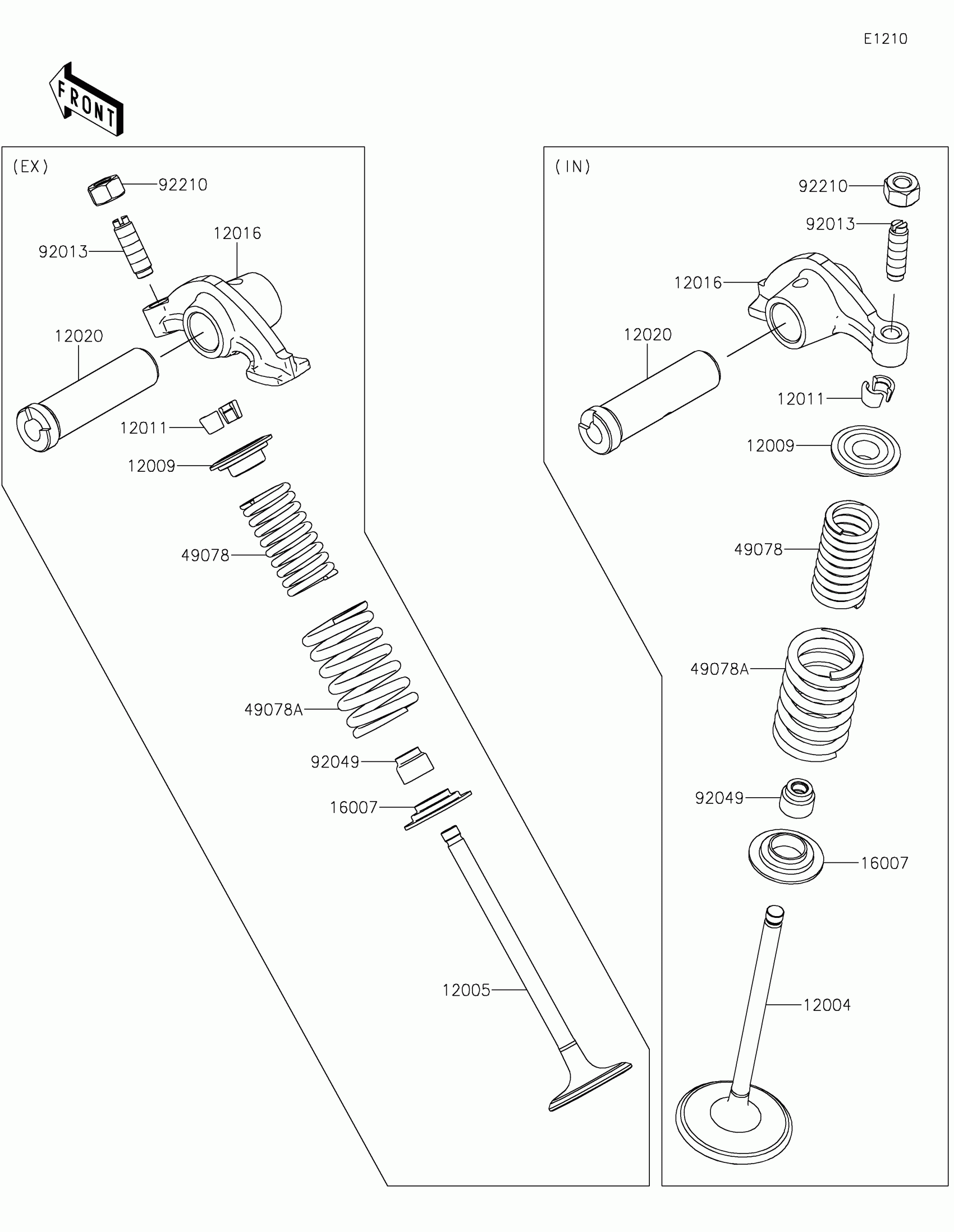

Kawasaki KLX230 S ABS Valve(s) Diagram

Description

Price

12004

VALVE-INTAKE

12004-0765

$38.47

12005

VALVE-EXHAUST

12005-0790

$62.14

12009

RETAINER-VALVE SPRING

12009-1054

$8.27

12011

COLLET

12011-1003

$3.54

12016

ARM-ROCKER

12016-0728

$56.34

12020

SHAFT-ROCKER

12020-0030

$14.56

16007

SEAT-SPRING

16007-1163

$20.29

49078

SPRING-ENGINE VALVE

49078-0756

$13.03

49078A

SPRING-ENGINE VALVE

49078-0757

$14.97

92013

SCREW,6MM

92013-009

$4.93

92049

SEAL-OIL,RVC2-5.5X8.5X8.3

92049-1062

$3.90

92210

NUT,6MM

92210-1490

$3.57
