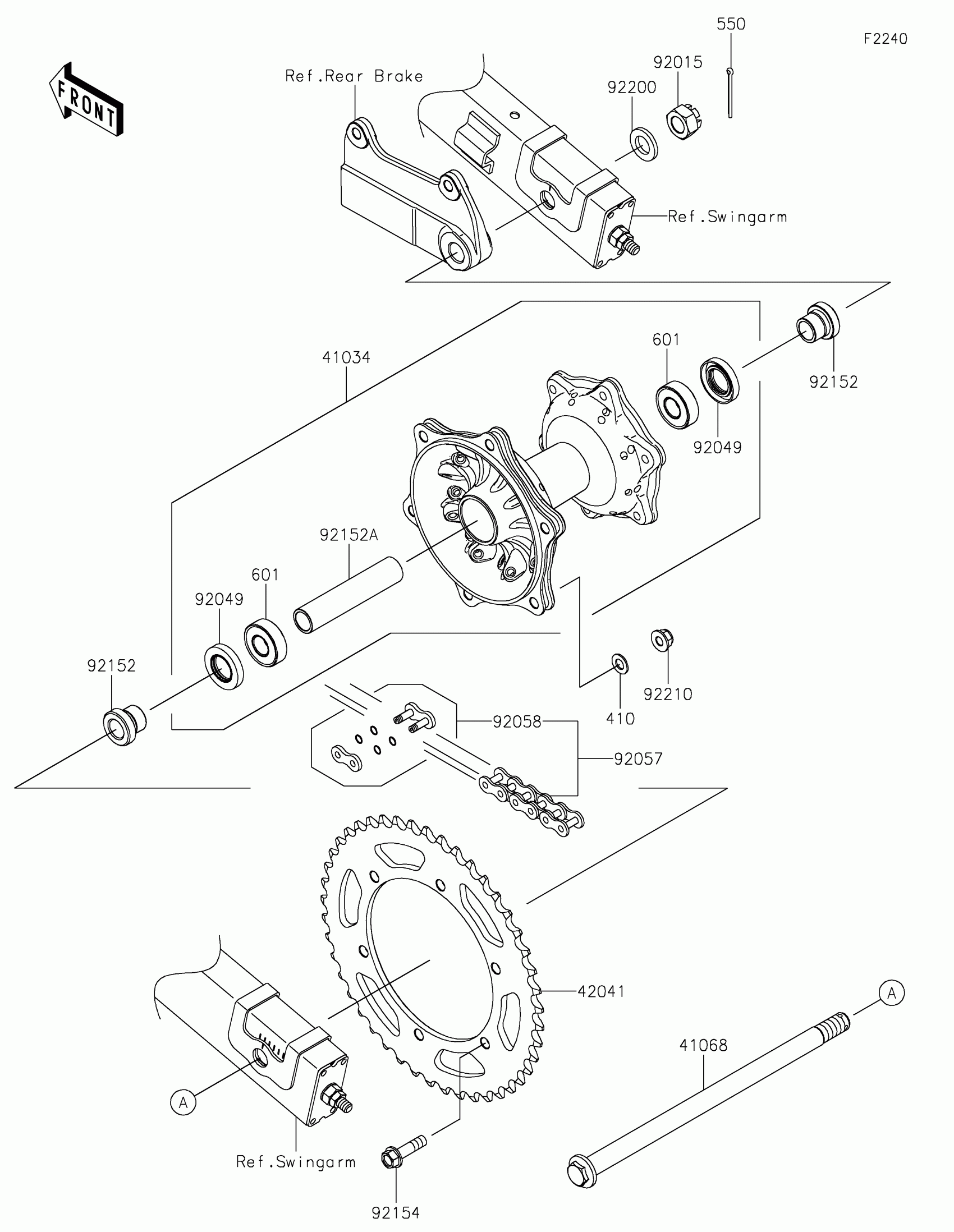

Kawasaki KLX230 S ABS Rear Hub Diagram

Description

Price

41034

DRUM-ASSY,RR

41034-0612

$524.99

41068

AXLE,RR,15X275

41068-0648

Unavailable

42041

SPROCKET-HUB,45T

42041-0174

Unavailable

92015

NUT,CASTLE,14MM

92015-1765

$7.49

92049

SEAL-OIL

92049-0114

$12.58

92057

CHAIN,DRIVE,520VF2X108L

92057-0802

$356.50

92058

JOINT-CHAIN

92058-0069

$11.34

92152

COLLAR

92152-2545

$15.63

92152A

COLLAR,15.2X20X96.2

92152-2546

$23.44

92154

BOLT,FLANGED,8X30

92154-3918

$1.98

92200

WASHER,14.2X26X3.2

92200-1428

Unavailable

92210

NUT,8MM

92210-0570

$2.12

410

WASHER-PLAIN-SMALL,8MM

410AA0800

$0.81

550

PIN-COTTER,3.0X35

550AA3035

$1.98

601

BEARING-BALL

601B6202UU

$17.77
