2023 Kawasaki KLX230 S ABS Owner's Tools Diagram

← All diagrams

Find the part on the Owner's Tools diagram for your 2023 Kawasaki KLX230 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

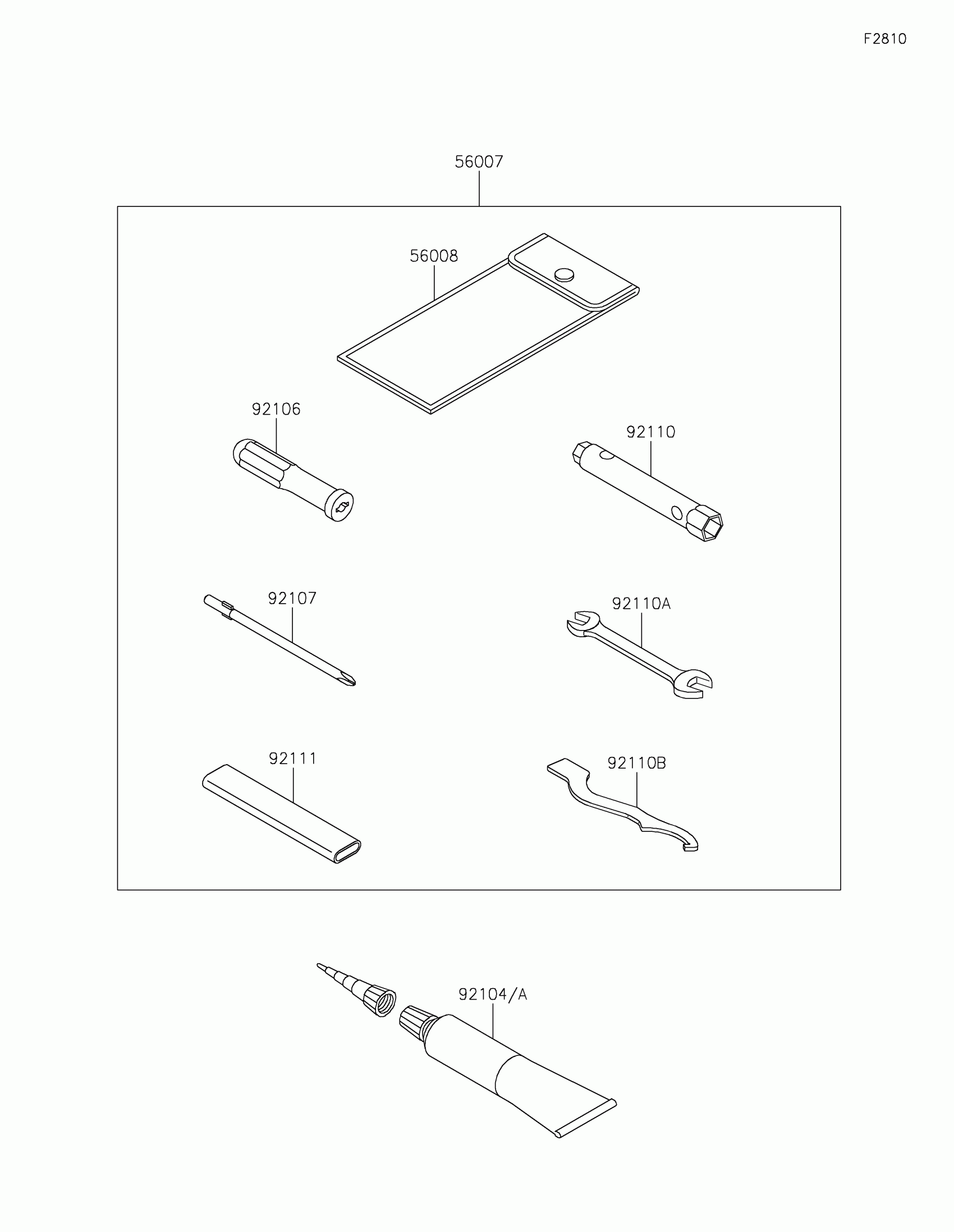

2023 Kawasaki KLX230 S ABS Owner's Tools Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56007

TOOL-KIT

56007-0190

1
Out of stock

56008

BAG,TOOL

56008-0050

1
Out of stock

92104

GASKET-LIQUID,TB1211F,CLEAR

92104-0004

1
Out of stock

92104A

GASKET-LIQUID,TB1216B,BLACK

92104-1064

1
Out of stock

92106

GRIP-SCREW DRIVER

92106-0005

1
Out of stock

92107

TOOL-DRIVER,#2PHILLIPS

92107-0022

1
Out of stock

92110

TOOL-WRENCH,BOX,8X10

92110-0584

1
Out of stock

92110A

TOOL-WRENCH,OPEN END,12X14

92110-0586

1
Out of stock

92110B

TOOL-WRENCH,SPRING ADJUST

92110-0624

1
Out of stock

92111

TOOL-BAR

92111-1057

1
Out of stock
