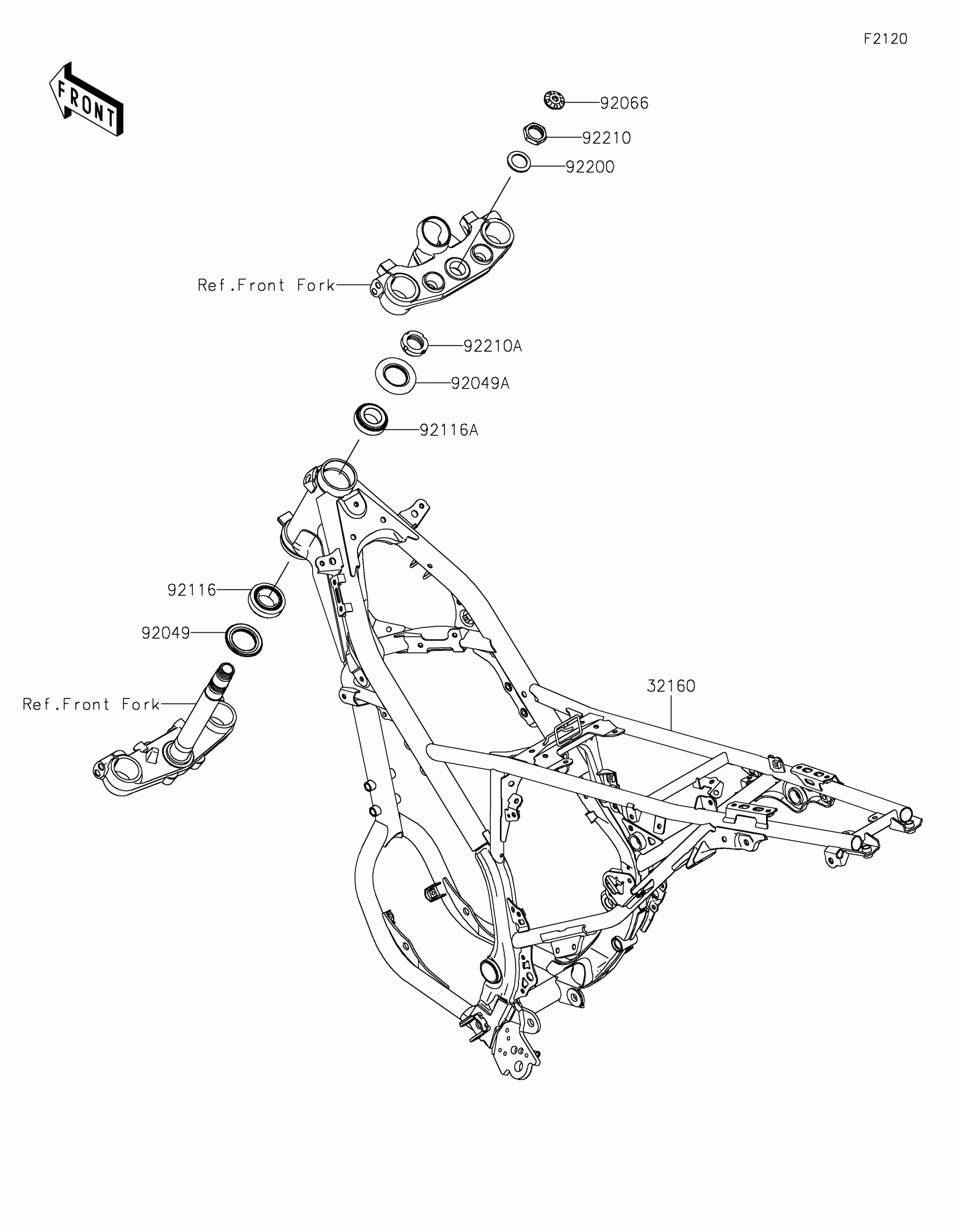

Kawasaki KLX230 S ABS Frame Diagram

#

Description
Price

32160

FRAME-COMP,P.SILVER

32160-1963-458

$1,167.47

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

$7.08

92049A

SEAL-OIL,STEERING STEM

92049-1214

$12.66

92066

PLUG

92066-0162

$4.22

92116

BEARING-ROLLER,HR320/28XJ

92116-1009

$32.44

92116A

BEARING-ROLLER,HICAP 32005JR

92116-1052

$37.01

92200

WASHER,STEERING STEM

92200-0517

$7.47

92210

NUT,STEERING STEM,22MM

92210-1521

$12.66

92210A

NUT,STEERING STEM,25MM

92210-1754

$18.66
