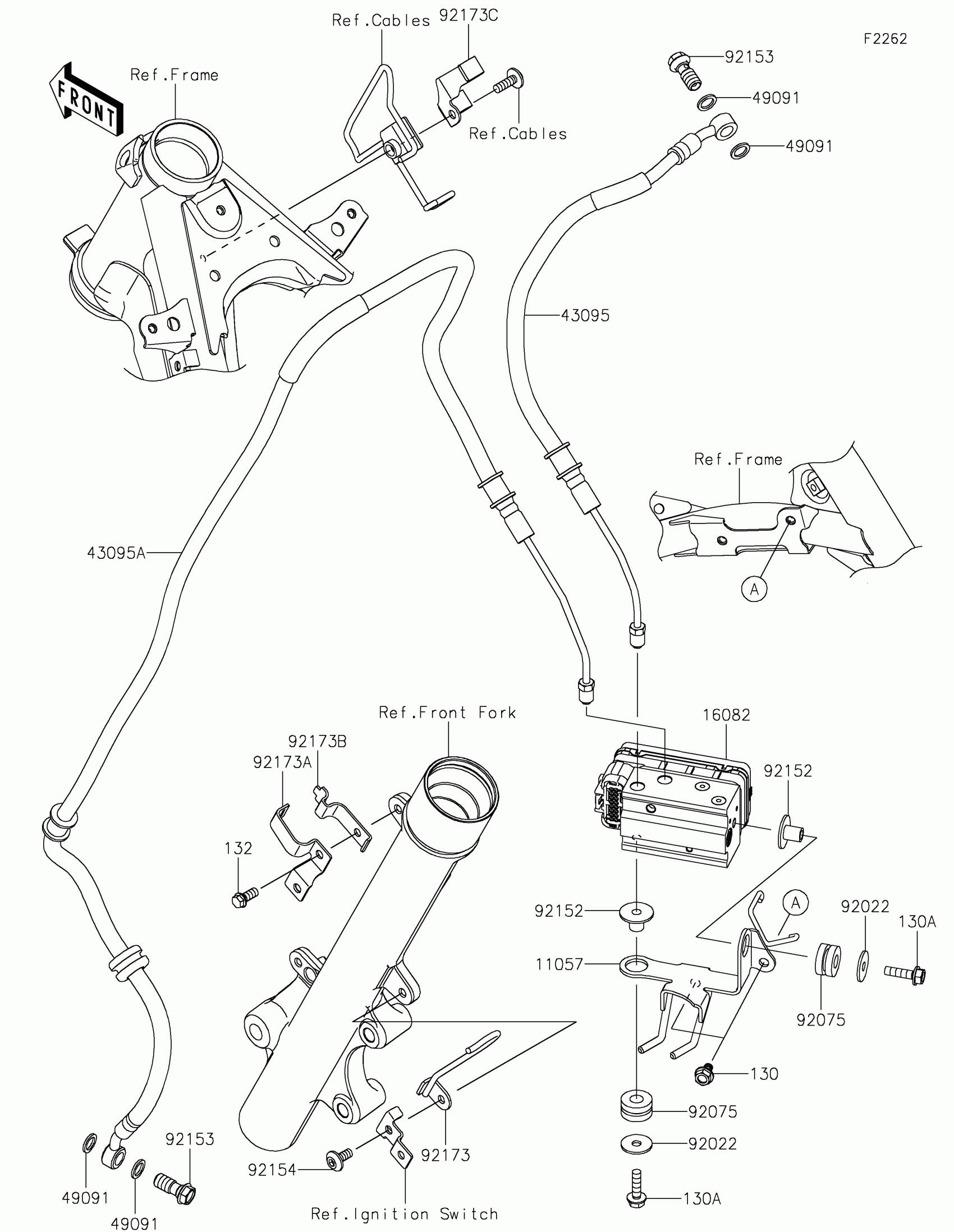

Kawasaki KLX230 S ABS Brake Piping Diagram

Description

Price

11057

BRACKET,ABS UNIT

11057-2358

$19.81

16082

PUMP-ASSY-OIL,ABS,BOSCH,10.3MB

16082-0883

$1,340.31

43095

HOSE-BRAKE,ABS UNIT-FR M/C

43095-1645

$243.34

43095A

HOSE-BRAKE,ABS UNIT-FR CALIPER

43095-1849

$226.93

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92022

WASHER,6.5X22X1.6

92022-237

$2.99

92075

DAMPER RUBBER,RR FENR

92075-209

$3.57

92152

COLLAR,6.5X10X13.6

92152-2204

$2.41

92153

BOLT,OIL,L=23

92153-0029

$1.44

92154

BOLT,SOCKET,6X14

92154-3763

Unavailable

92173

CLAMP,BRAKE HOSE,CALIPER

92173-1972

$4.31

92173A

CLAMP

92173-2043

$4.08

92173B

CLAMP

92173-2044

$1.93

92173C

CLAMP

92173-2045

$4.08

130

BOLT-FLANGED,6X10

130BA0610

$0.97

130A

BOLT-FLANGED,6X22

130BA0622

$1.00

132

BOLT-FLANGED-SMALL,6X14

132BA0614

$1.13
