Find the part on the Swingarm diagram for your 2025 Kawasaki KLX150L (Indonesia Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

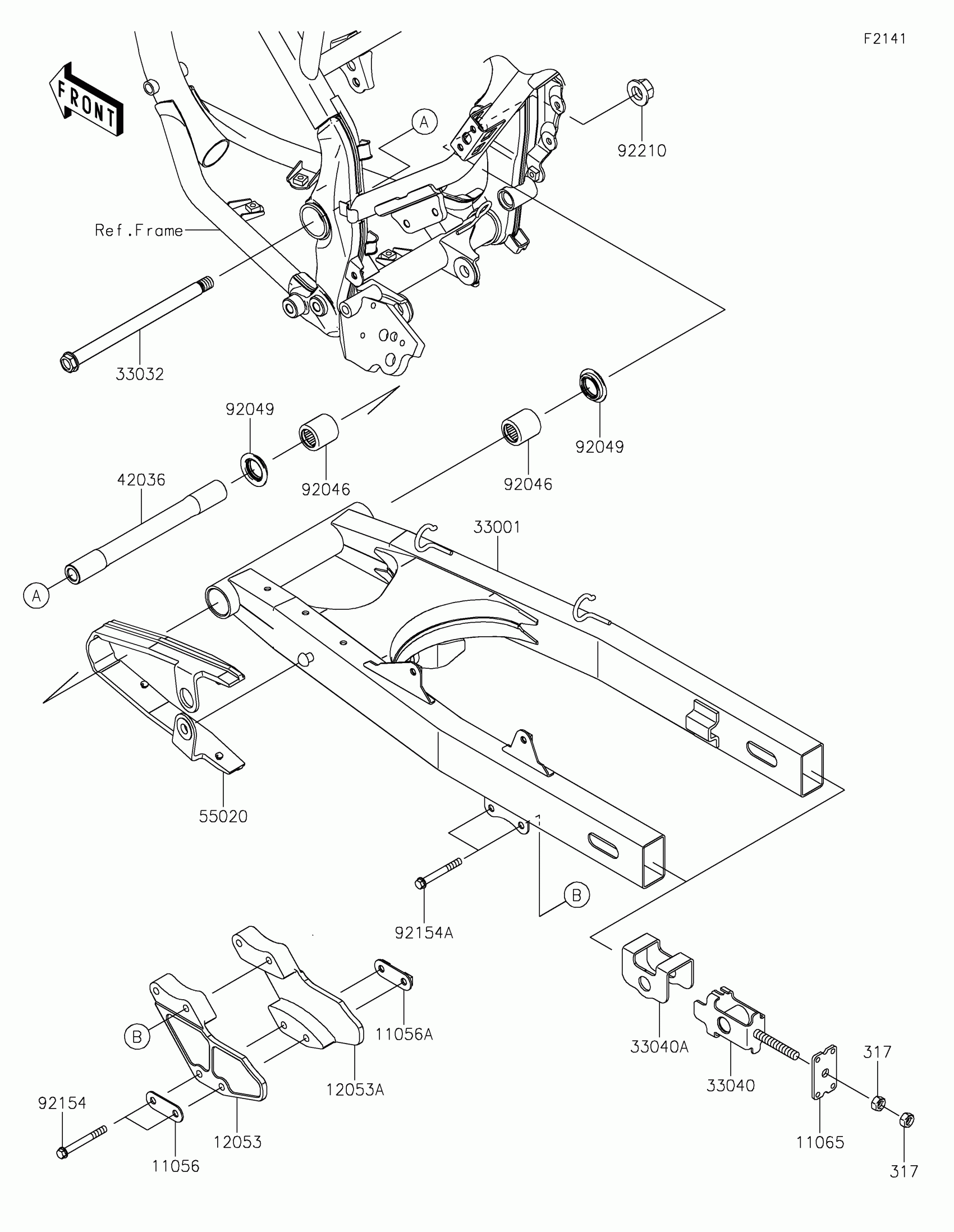

2025 Kawasaki KLX150L (Indonesia Only) Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-2395

1
Out of stock

11056A

BRACKET,WITH NUT

11056-2396

1
Out of stock

11065

CAP

11065-0805

1
Out of stock

12053

GUIDE-CHAIN,LH

12053-0200

1
Out of stock

12053A

GUIDE-CHAIN,RH

12053-0201

1
Out of stock

33001

ARM-COMP-SWING,P.SILVER

33001-0644-458

1
Out of stock

33032

SHAFT-SWING ARM,14X227

33032-0053

1
Out of stock

33040

ADJUSTER-CHAIN

33040-0019

1
Out of stock

33040A

ADJUSTER-CHAIN,OUTSIDE

33040-1162

1
Out of stock

42036

SLEEVE,PIVOT,15.1X20X197.8

42036-0070

1
Out of stock

55020

GUARD

55020-0858

1
Out of stock

92046

BEARING-NEEDLE,BM202726

92046-1110

1
Out of stock

92049

SEAL-OIL

92049-0849

1
Out of stock

92154

BOLT,FLANGED,6X55

92154-1190

1
Out of stock

92154A

BOLT,FLANGED,6X50

92154-1193

1
Out of stock

92210

NUT

92210-0855

1
Out of stock

317

NUT-HEX-SMALL,8MM

317AA0800

1
Out of stock
