2025 Kawasaki KLX150L (Indonesia Only) Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2025 Kawasaki KLX150L (Indonesia Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

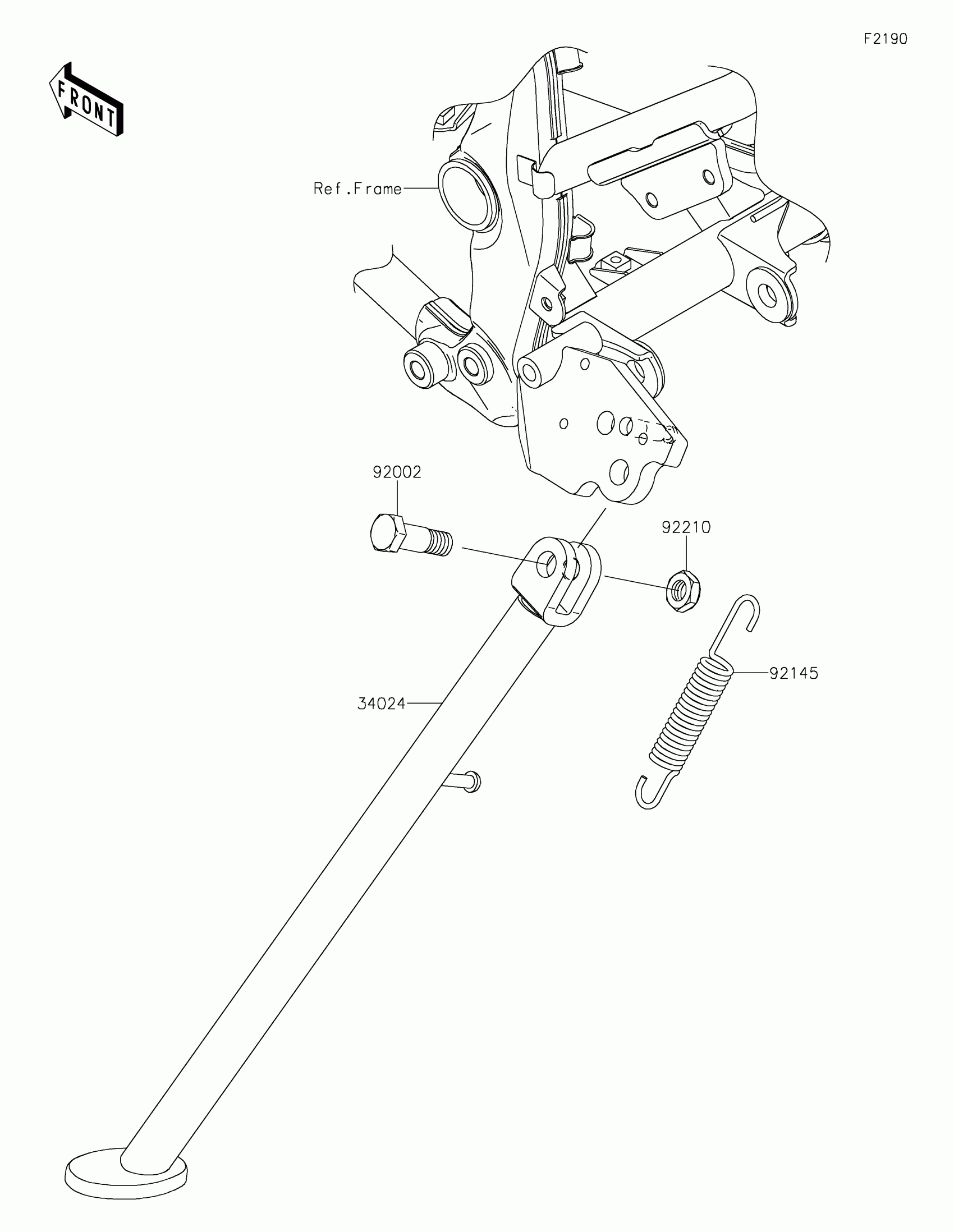

2025 Kawasaki KLX150L (Indonesia Only) Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34024

STAND-SIDE,P.SILVER

34024-0121-458

1
Out of stock

92002

BOLT,SIDE STAND

92002-1813

1
Out of stock

92145

SPRING

92145-1588

1
Out of stock

92210

NUT,LOCK,10MM

92210-1672

1
Out of stock
