2017 Kawasaki KLX150BF Rear Master Cylinder Diagram

← All diagrams

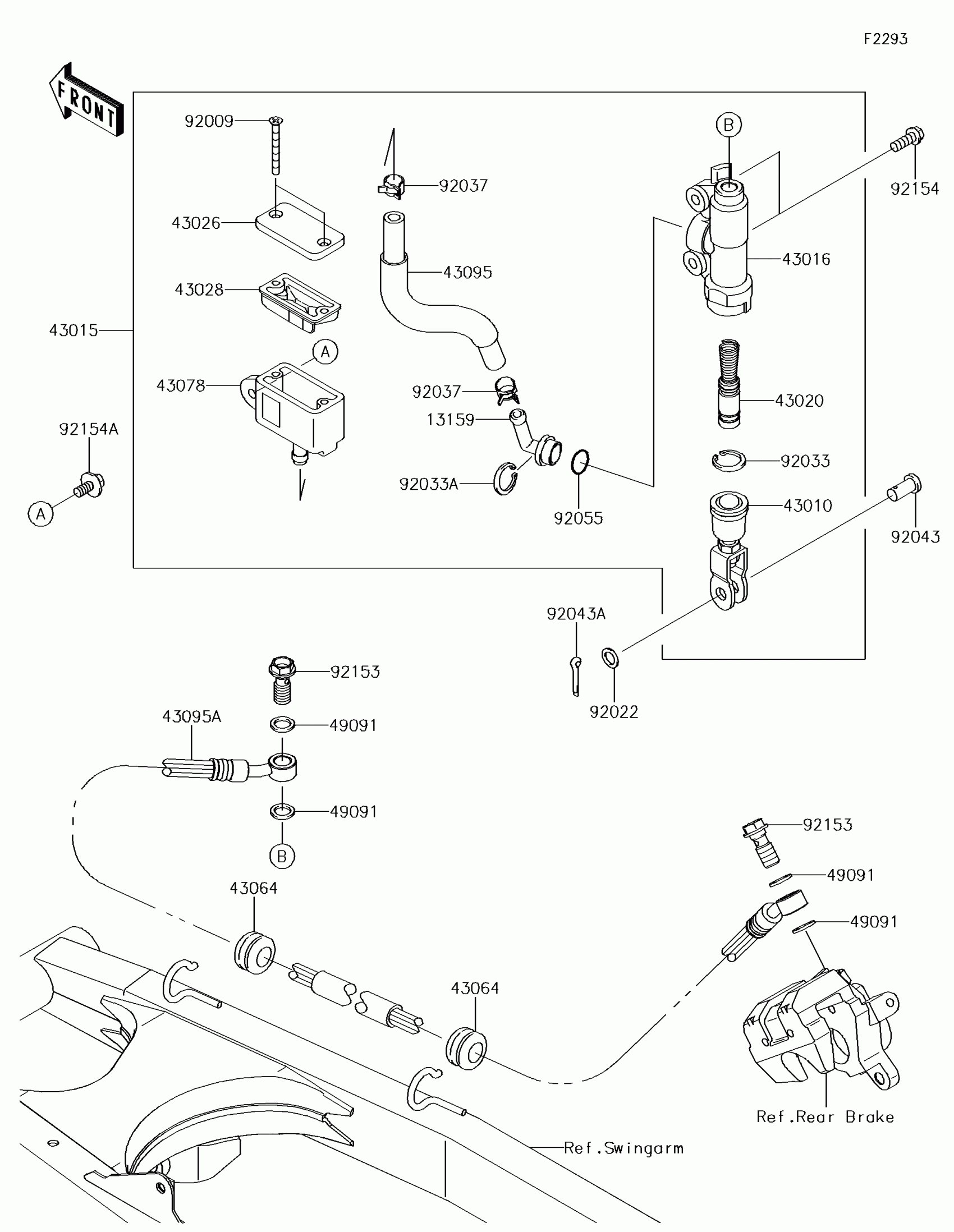

Find the part on the Rear Master Cylinder diagram for your 2017 Kawasaki KLX150BF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Kawasaki KLX150BF Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13159

CONNECTOR

13159-1056

1
Out of stock

43010

ROD-ASSY-BRAKE

43010-1068

1
Out of stock

43015

CYLINDER-ASSY-MASTER,RR

43015-0587

1
Out of stock

43016

CYLINDER-MASTER

43016-1149

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1094

1
Out of stock

43026

CAP-BRAKE

43026-1075

1
Out of stock

43028

DIAPHRAGM

43028-1067

1
Out of stock

43064

GROMMET,HOSE CLAMP

43064-006

1
Out of stock

43078

RESERVOIR

43078-1189

1
Out of stock

43095

HOSE-BRAKE,RR MASTER CYLINDER

43095-0550

1
Out of stock

43095A

HOSE-BRAKE,589MM

43095-0803

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92009

SCREW,4X40

92009-1596

1
Out of stock

92022

WASHER,8.5X13X1

92022-1028

1
Out of stock

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

1
Out of stock

92033A

RING-SNAP,20.5MM

92033-1186

1
Out of stock

92037

CLAMP

92037-1710

1
Out of stock

92043

PIN

92043-0004

1
Out of stock

92043A

PIN,COTTER,2.0X15

92043-0766

1
Out of stock

92055

RING-O,14.8X2.4

92055-0766

1
Out of stock

92153

BOLT,OIL,L=23

92153-0029

1
Out of stock

92154

BOLT,FLANGED,6X16

92154-0460

1
Out of stock

92154A

BOLT,FLANGED,6X14

92154-1231

1
Out of stock
