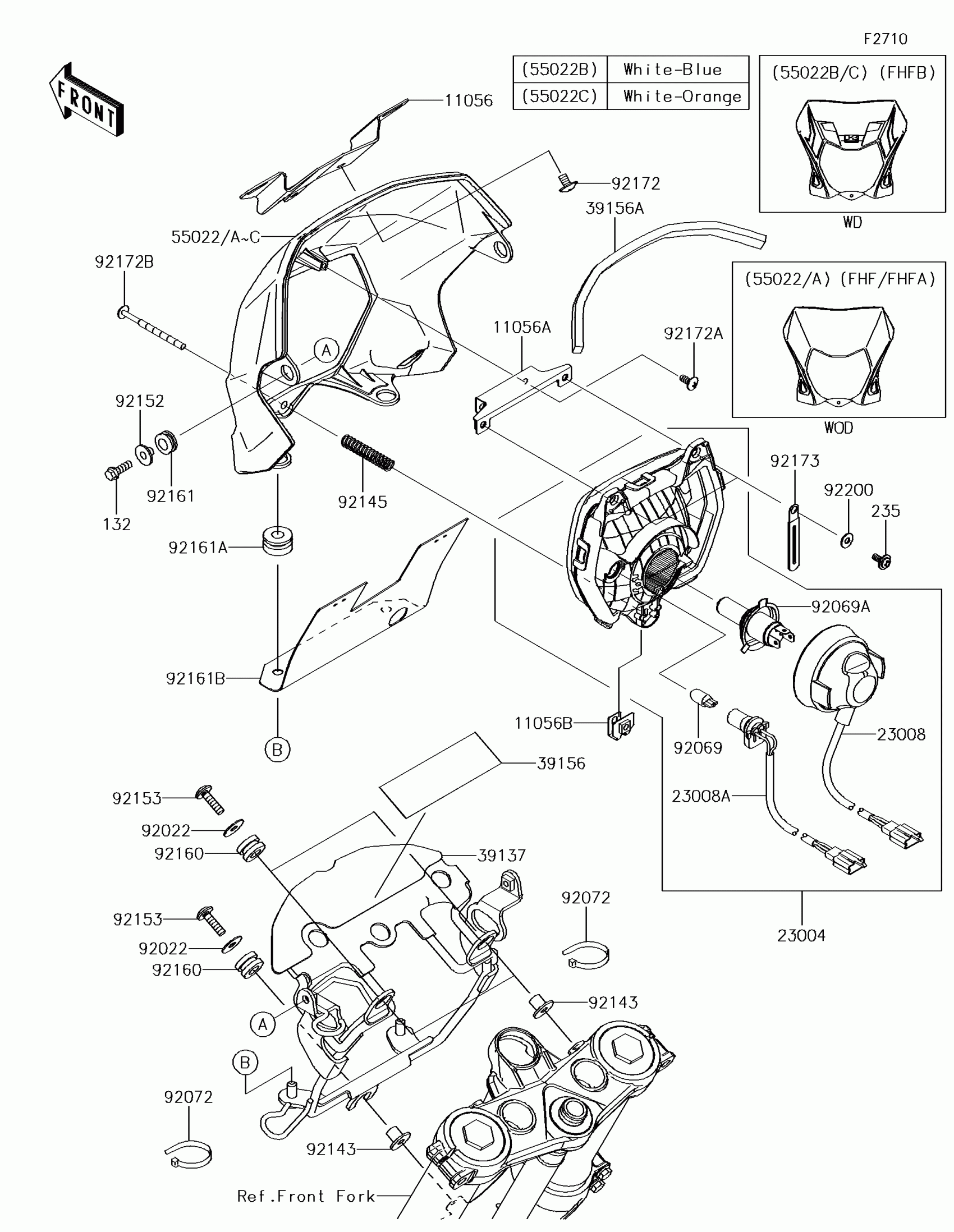

Kawasaki KLX150BF Headlight(s) Diagram

#

Description
Price

11056

BRACKET

11056-7198

$10.46

11056A

BRACKET

11056-7216

$11.93

11056B

BRACKET

11056-7968

$1.97

132

BOLT-FLANGED-SMALL,6X18

132BC0618

$2.15

23004

LAMP-HEAD

23004-0357

$317.22

23008

SOCKET-ASSY,HEAD LAMP

23008-0173

$82.89

23008A

SOCKET-ASSY,POSITION LAMP

23008-0174

$91.19

235

SCREW-PAN-WP-CROS,5X12

235AA0512

$4.45

39137

STAY-COMP,HEAD LAMP

39137-0674

$57.52

39156

PAD,35X110

39156-1764

$14.76

39156A

PAD,10X260X7

39156-1857

$3.56

55022A

COVER-HEAD LAMP,EBONY

55022-0311-6C

Unavailable

92022

WASHER,PLAIN,6.5X20X1

92022-165

$3.74

92069

BULB,12V 5W

92069-0059

Unavailable

92069A

BULB,12V35/35W

92069-0086

$35.53

92072

BAND,L=220

92072-0044

$3.19

92143

COLLAR

92143-1353

$8.58

92145

SPRING

92145-1645

$1.49

92152

COLLAR

92152-0295

$5.65

92153

BOLT,SOCKET,6X22

92153-0574

$2.61

92160

DAMPER,10X20X12

92160-1167

$4.69

92161

DAMPER,10X18X7.5

92161-1535

$1.78

92161A

DAMPER,7.5X22X11

92161-1536

$5.65

92161B

DAMPER

92161-1821

$19.92

92172

SCREW,6X10

92172-0098

$2.80

92172A

SCREW,TAPPING,5X10

92172-0262

$1.49

92172B

SCREW,5X70

92172-0909

$1.97

92173

CLAMP

92173-1424

$4.31

92200

WASHER,5.2X13X1

92200-1694

$3.02
