2017 Kawasaki KLX150BF Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 2017 Kawasaki KLX150BF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

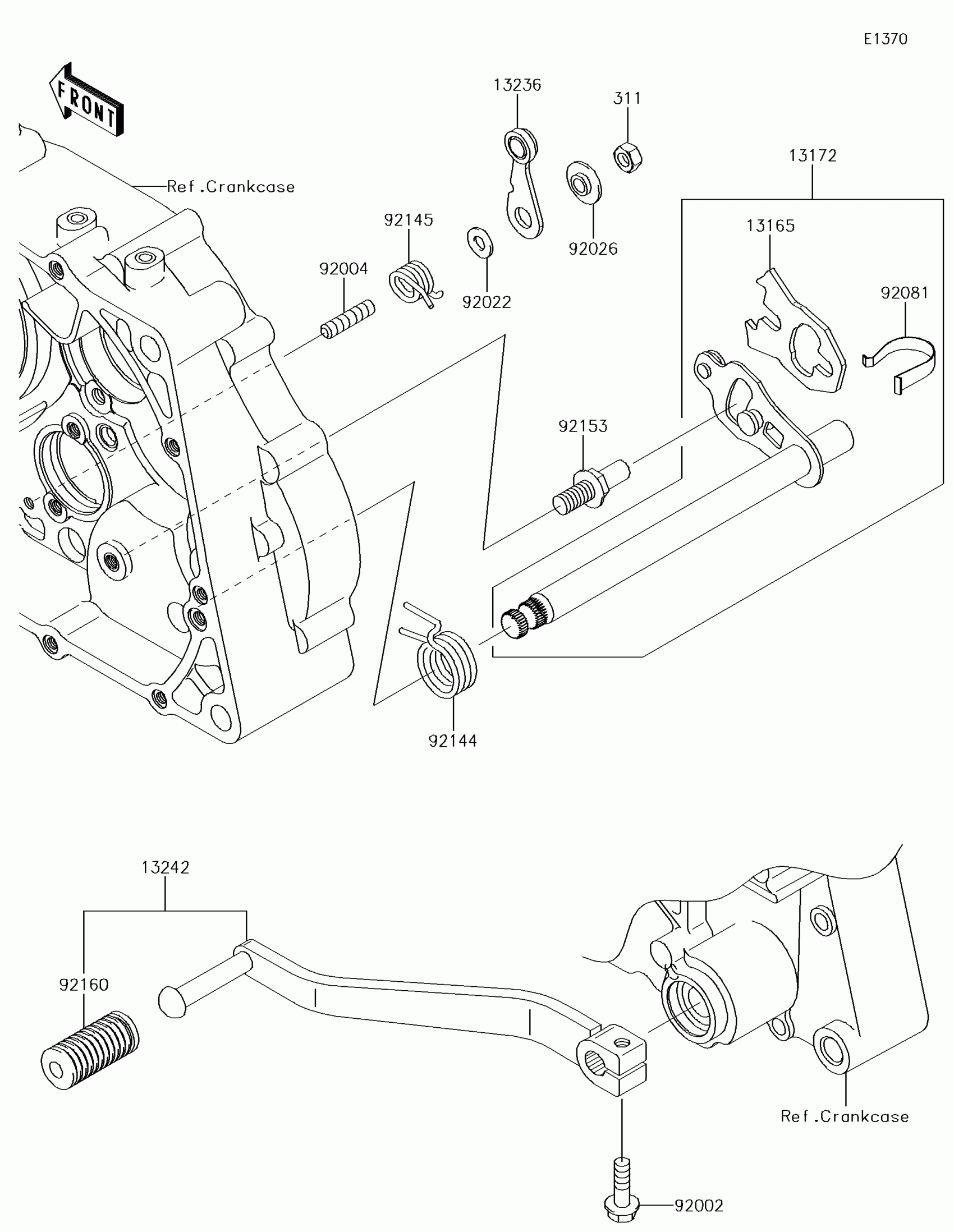

2017 Kawasaki KLX150BF Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13165

PAWL,CHANGE SHAFT

13165-0003

1

$3.66

In stock

13172

SHAFT-ASSY-CHANGE

13172-0009

1

$75.55

In stock

13236

1

$10.41

In stock

13242

LEVER-ASSY-CHANGE,PEDAL

13242-0123

1
Out of stock

311

NUT-HEX,6MM

311BA0600

1

$1.64

In stock

92002

BOLT,6X20

92002-1237

1

$3.43

In stock

92004

STUD,6X12

92004-0032

1
Out of stock

92022

WASHER,6X12.8X1.2

92022-1827

1
Out of stock

92026

SPACER

92026-0750

1
Out of stock

92081

SPRING,CHANGE LEVER

92081-1829

1

$6.98

In stock

92144

1

$16.34

In stock

92145

SPRING

92145-0349

1

$7.39

In stock

92153

BOLT,8X15.5

92153-1144

1
Out of stock

92160

DAMPER,CHANGE PEDAL

92160-1036

1

$4.01

In stock
