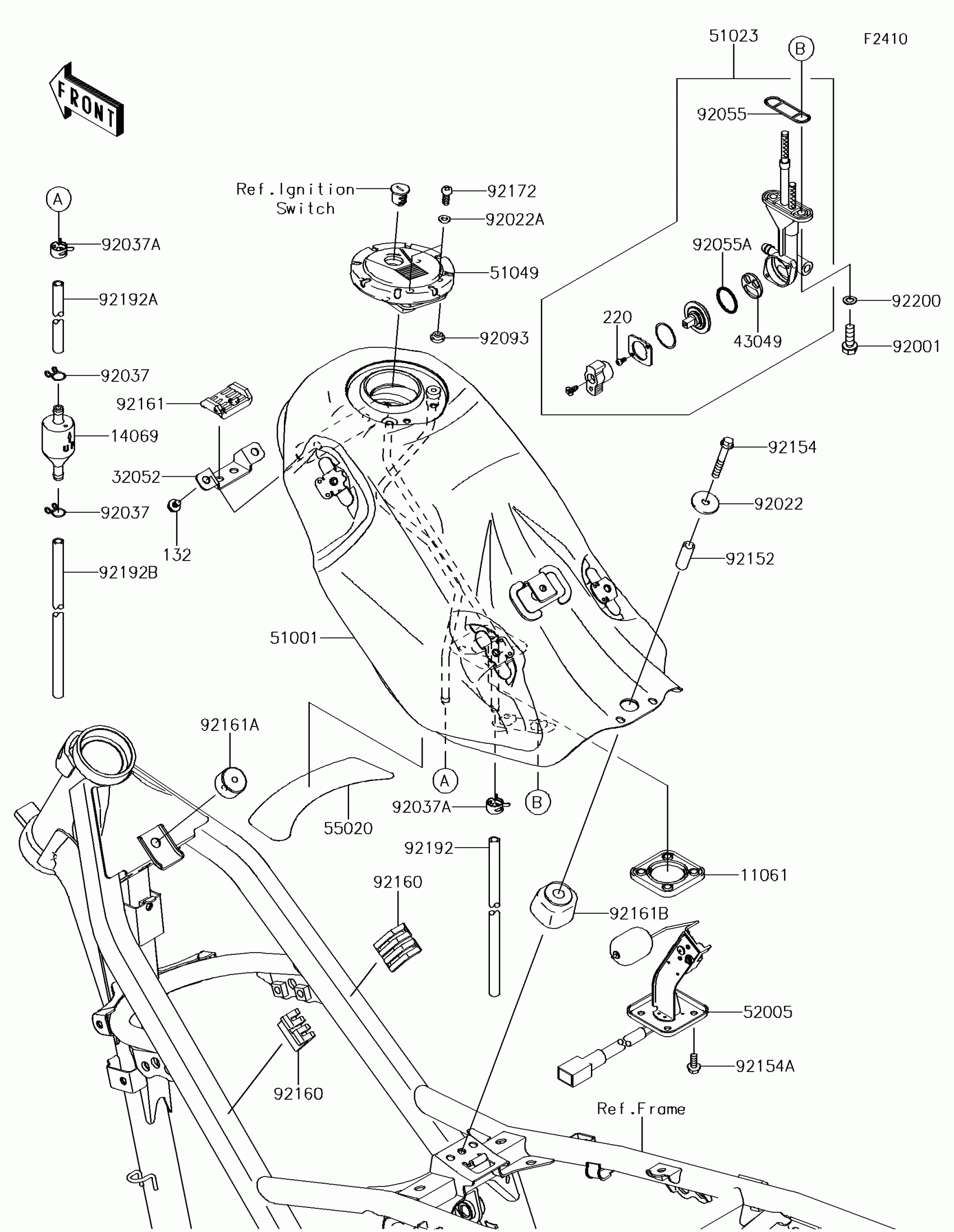

Kawasaki KLX150BF Fuel Tank Diagram

#

Description
Price

11061

GASKET,FUEL GAUGE

11061-0279

$13.48

132

BOLT-FLANGED-SMALL,6X8

132BB0608

$3.67

14069

BREATHER,FUEL TANK

14069-1004

$10.19

220

SCREW-PAN-CROS,3X8

220AA0308

$1.49

32052

BRACKET-TANK

32052-0735

$4.10

43049

PACKING,TAP VALVE

43049-1091

$7.26

51001

TANK-COMP-FUEL,F.S.BLACK

51001-0828-25Q

$663.64

51023

TAP-ASSY,FUEL

51023-0037

$87.96

51049

CAP-TANK,FUEL

51049-0049

$108.49

52005

GAUGE,FUEL TANK

52005-0748

$98.11

55020

GUARD

55020-0950

$7.52

92001

BOLT,6X20

92001-1091

$3.92

92022

WASHER,6.5X24X2

92022-1690

$3.92

92022A

WASHER,5.1X10X1.0

92022-1977

$3.65

92037

CLAMP,TUBE

92037-147

$7.34

92037A

CLAMP

92037-1601

$12.92

92055

RING-O,FUEL TAP PACKING

92055-1112

$5.00

92055A

RING-O,TAP LEVER

92055-1419

$5.00

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92152

COLLAR,6.8X10X27

92152-2175

$2.49

92154

BOLT

92154-1134

$3.71

92154A

BOLT,FLANGED,5X12

92154-1215

$2.67

92160

DAMPER,FUEL TANK

92160-1328

$7.34

92161

DAMPER

92161-0705

$2.32

92161A

DAMPER

92161-1533

$10.28

92161B

DAMPER

92161-1817

$10.65

92172

SCREW,5X10

92172-0496

$4.20

92192

TUBE,6X9X620

92192-1085

$13.37

92192A

TUBE,6X9X56

92192-1442

$1.49

92192B

TUBE,6X9X260

92192-1443

$3.74

92200

WASHER,6.5X11.5X0.8

92200-0177

$2.61
