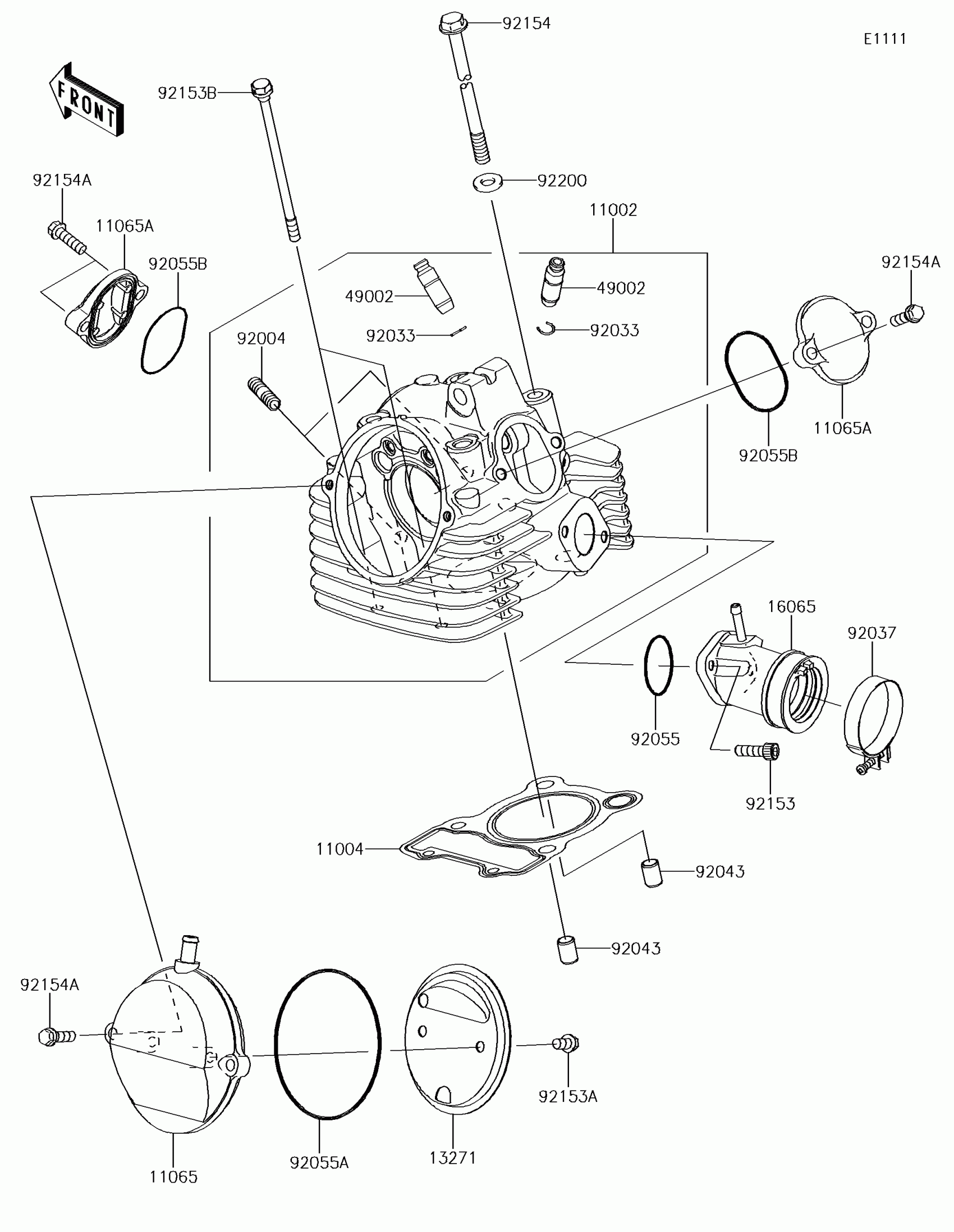

Kawasaki KLX150BF Cylinder Head Diagram

Description

Price

11002

HEAD-ASSY-CYLINDER

11002-0144

$644.55

11004

GASKET-HEAD

11004-0751

Unavailable

11065

CAP

11065-0799

$56.33

11065A

CAP,VALVE,ADJUSTING

11065-0800

$21.90

13271

PLATE,BREATHER

13271-1844

$1.29

16065

HOLDER-CARBURETOR

16065-0061

$53.09

49002

GUIDE-VALVE

49002-0019

$19.47

92004

STUD,8X22

92004-0722

$4.95

92033

RING-SNAP

92033-0789

$3.53

92037

CLAMP

92037-1305

$7.54

92043

PIN,8.2X10X14

92043-0100

$2.82

92055

RING-O,32X1.9

92055-0191

$12.76

92055A

RING-O,86X1.9

92055-0202

$5.53

92055B

RING-O

92055-1697

$7.84

92153

BOLT,6X20

92153-0481

$0.81

92153A

BOLT,6X10

92153-1140

$0.71

92153B

BOLT,FLANGED,6X110

92153-1970

$9.93

92154

BOLT,FLANGED,8X201

92154-1155

$5.75

92154A

BOLT,FLANGED,6X20

92154-1219

$2.05

92200

WASHER,8.2X17X2.3

92200-1631

$0.48
