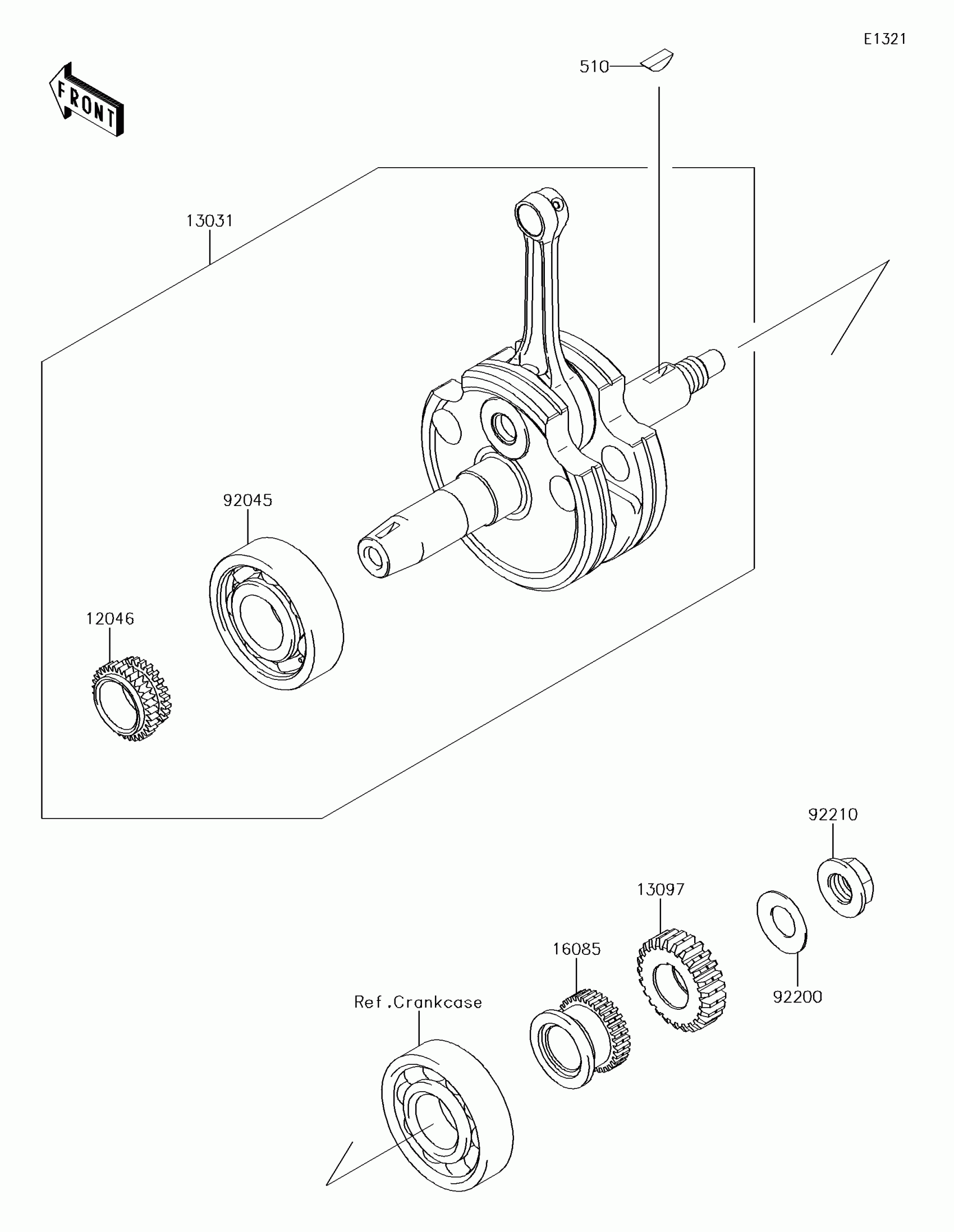

Kawasaki KLX150BF Crankshaft Diagram

#

Description
Price

12046

SPROCKET,18T

12046-0575

$37.40

13031

CRANKSHAFT-COMP

13031-0805

$559.91

13097

GEAR-PRIMARY SPUR,25T

13097-0569

$91.54

16085

GEAR,21T

16085-0607

$105.75

510

KEY-WOODRUFF

510A4200

$2.04

92045

BEARING-BALL

92045-0018

$46.04

92200

WASHER,14.2X28X1.5

92200-0553

$24.59

92210

NUT,14MM,LEFT HANDED

92210-0600

$12.58
