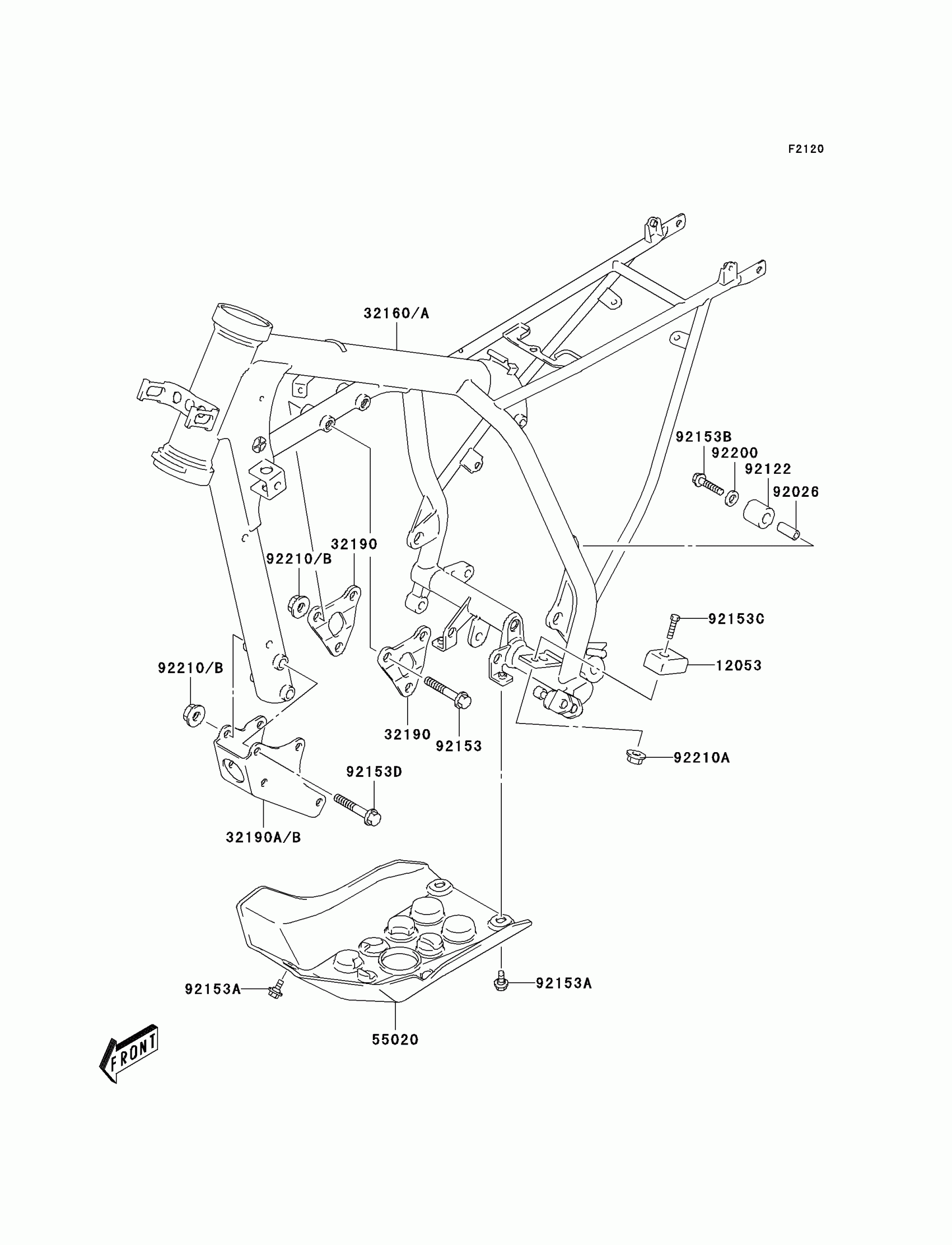

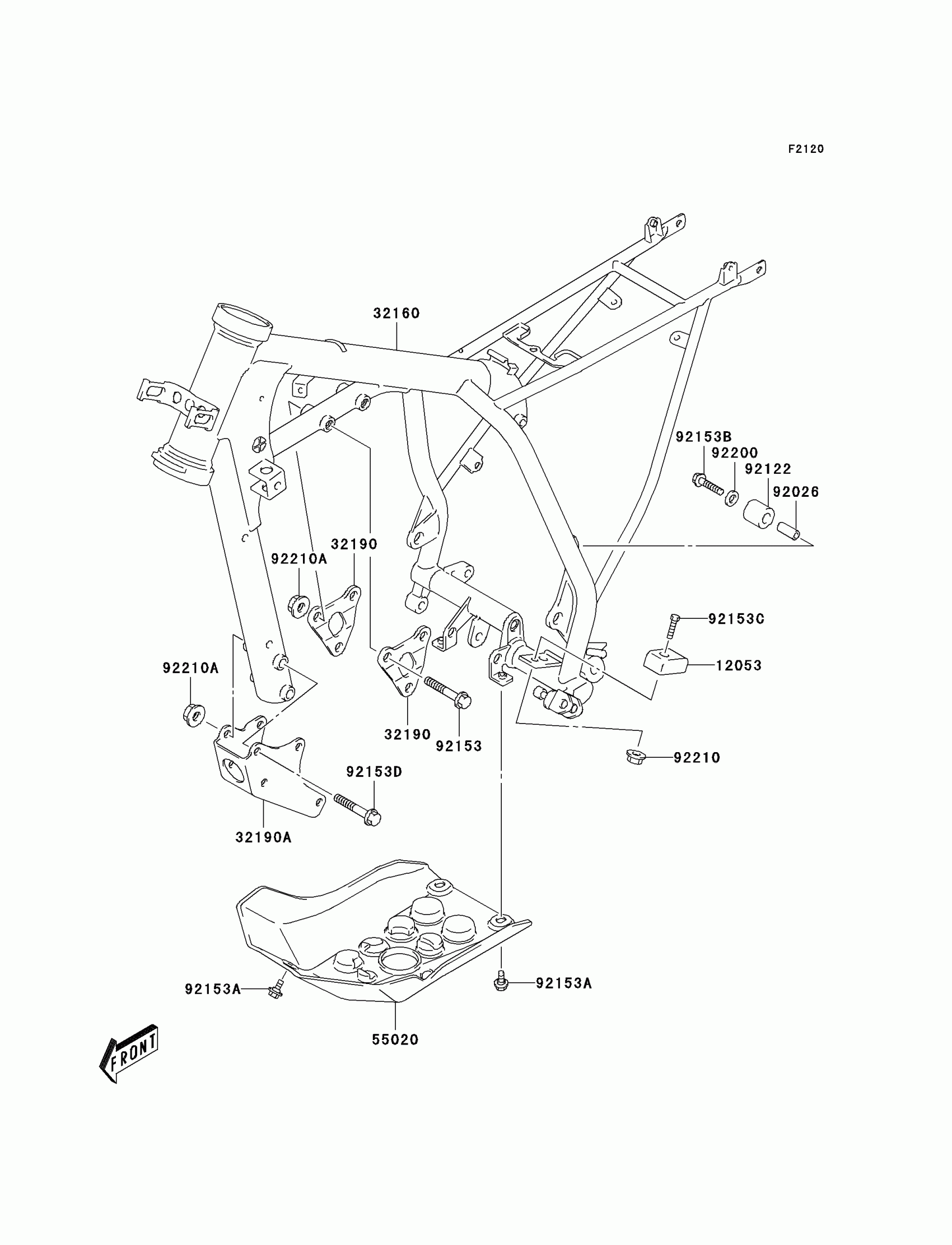

Kawasaki KLX125 Frame Diagram

Description

Price

12053

GUIDE-CHAIN

12053-S012

$24.27

32160A

FRAME-COMP,P.SILVER

32160-S003-909

$1,212.32

32190

BRACKET-ENGINE

32190-S003

Unavailable

32190B

BRACKET-ENGINE,P.SILVER

32190-S005-909

$34.03

55020

GUARD,ENGINE

55020-S004

$46.52

92026

SPACER

92026-S053

$4.44

92122

ROLLER,CHAIN CONTROL,UPP

92122-S006

$24.02

92153

BOLT

92153-S151

$4.17

92153A

BOLT

92153-S161

Unavailable

92153B

BOLT

92153-S183

$4.44

92153C

BOLT

92153-S184

$2.00

92153D

BOLT

92153-S188

$5.10

92200

WASHER

92200-S125

$2.10

92210A

NUT

92210-S054

$2.39

92210B

NUT

92210-S094

$2.97
