2005 Kawasaki KLX125 Brake Pedal Diagram

← All diagrams

Find the part on the Brake Pedal diagram for your 2005 Kawasaki KLX125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

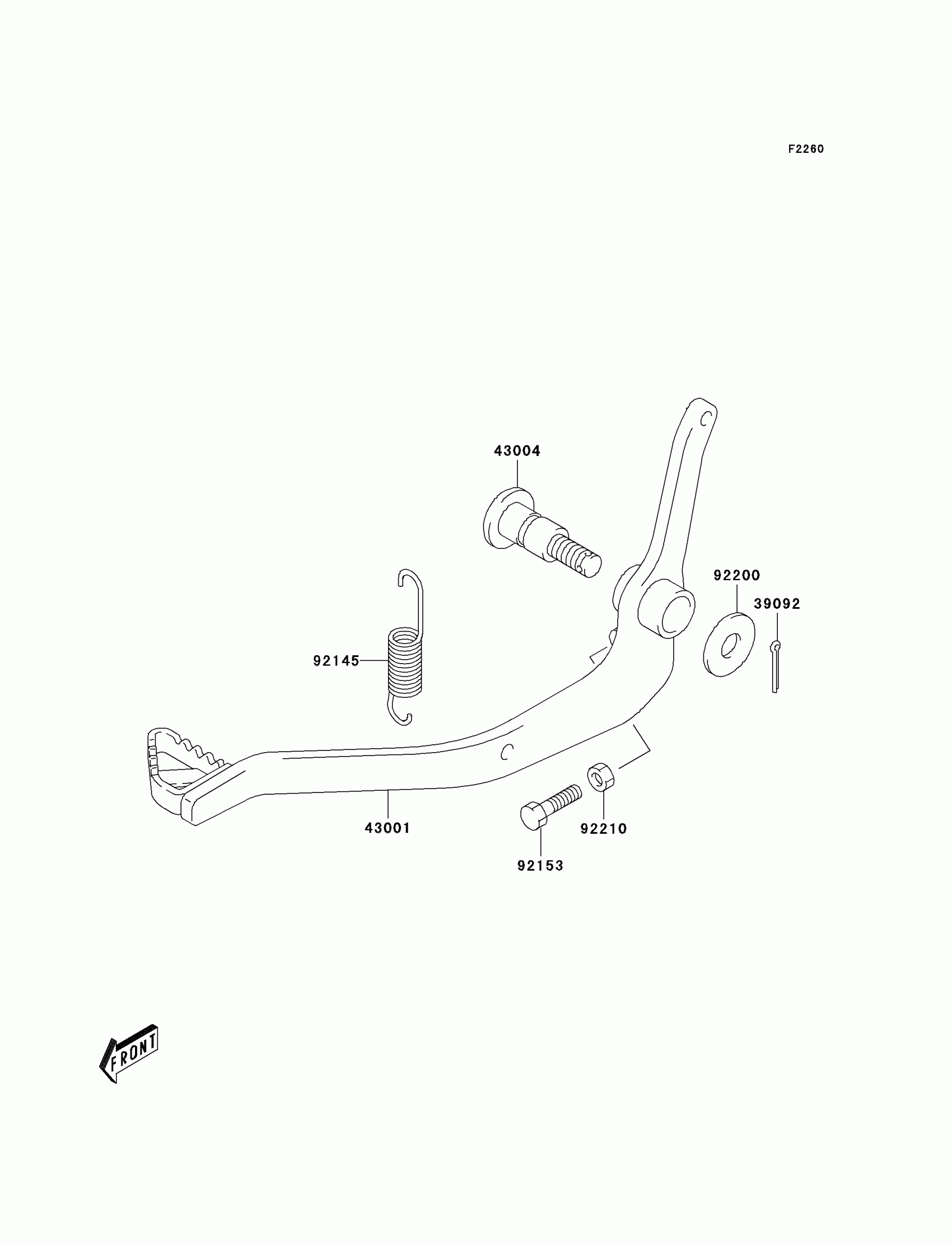

2005 Kawasaki KLX125 Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39092

PIN-HAIR,COTTER

39092-S005

1

$1.64

In stock

43001

LEVER-BRAKE

43001-S001

1

$66.92

In stock

43004

SHAFT-BRAKE

43004-S001

1

$25.20

In stock

92145

1

$5.24

In stock

92153

BOLT

92153-S182

1
Out of stock

92200

WASHER

92200-S067

1
Out of stock

92210

NUT

92210-S001

1
Out of stock
