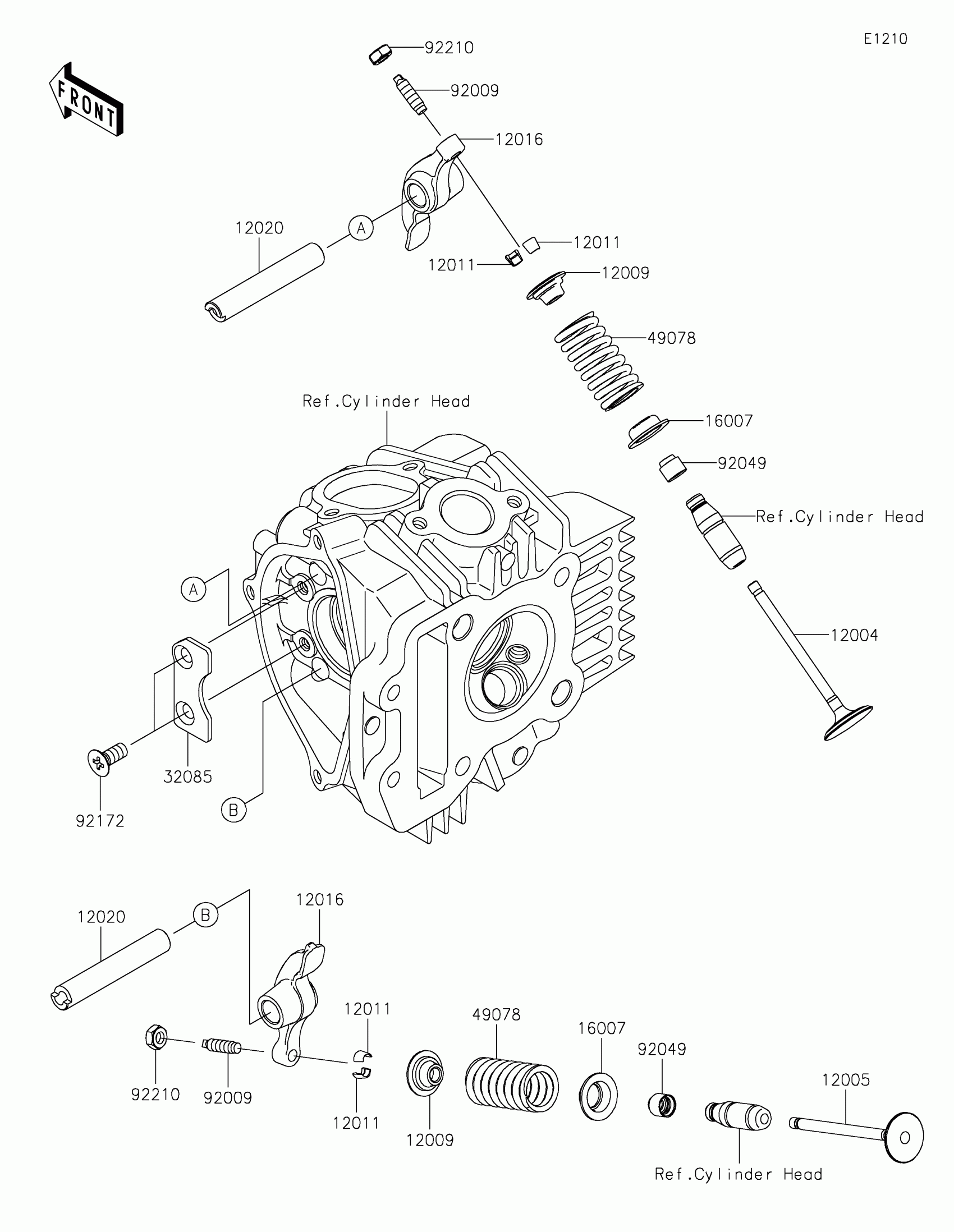

Kawasaki KLX110L Valve(s) Diagram

Description

Price

12004

VALVE-INTAKE

12004-0710

$19.48

12005

VALVE-EXHAUST

12005-0713

$16.51

12009

RETAINER-VALVE SPRING

12009-1073

$8.10

12011

COLLET

12011-1053

$4.14

12016

ARM-ROCKER

12016-0001

$35.47

12020

SHAFT-ROCKER

12020-0023

$19.54

16007

SEAT-SPRING,VALVE

16007-1187

$2.79

32085

STOPPER

32085-0893

$3.90

49078

SPRING-ENGINE VALVE

49078-1151

$5.73

92009

SCREW,VALVE ADJUST

92009-1109

$1.43

92049

SEAL-OIL,VSB 4.3 7.5 5.3 8.3

92049-1349

$8.77

92172

SCREW,6X15

92172-0143

$1.81

92210

NUT,VALVE ADJUST LOCK

92210-1491

$0.81
