2022 Kawasaki KLX110L Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2022 Kawasaki KLX110L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

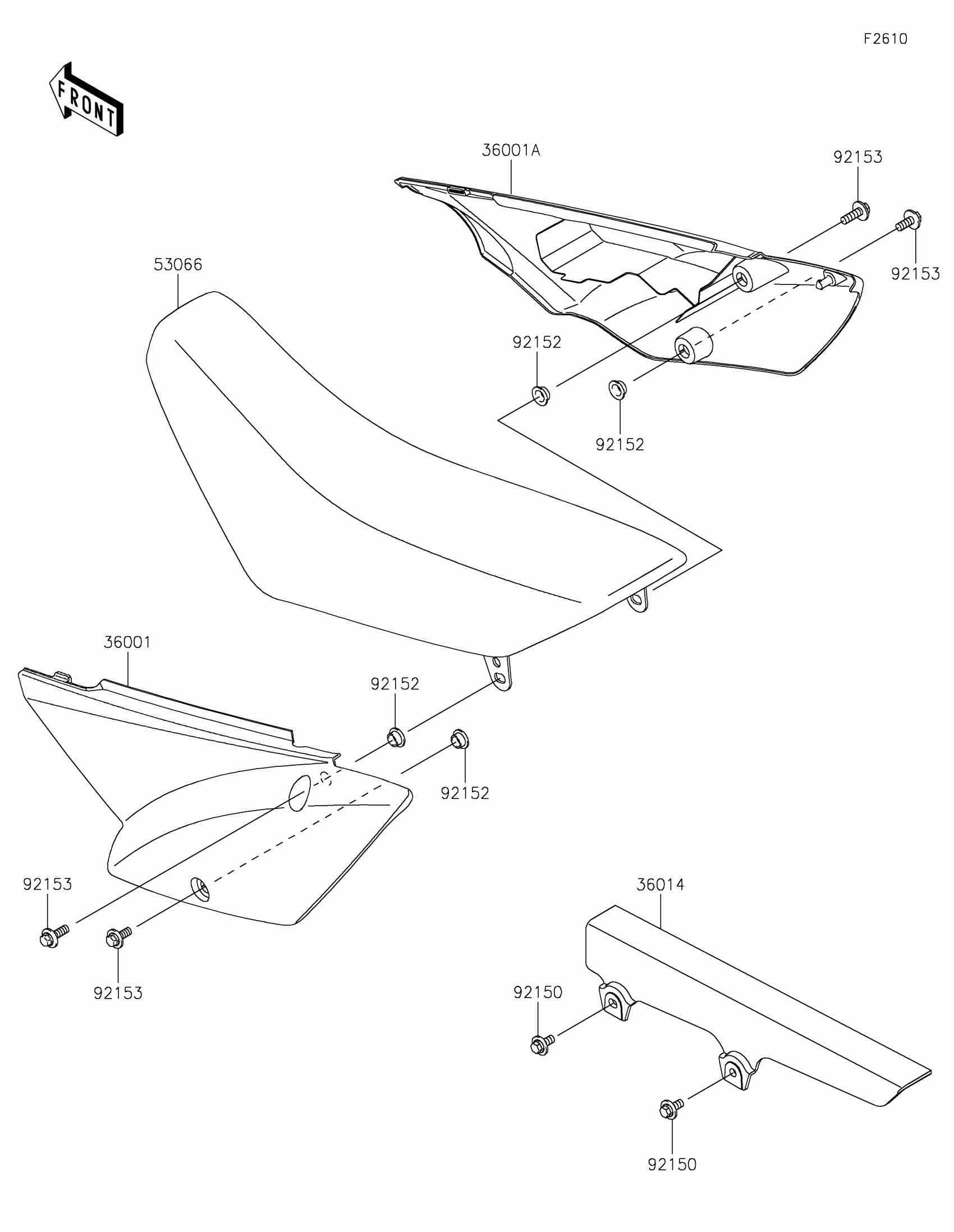

2022 Kawasaki KLX110L Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001

COVER-SIDE,LH,B.WHITE

36001-0204-266

1

$45.63

In stock

36001A

COVER-SIDE,RH,B.WHITE

36001-0205-266

1

$45.63

In stock

36014

CASE-CHAIN

36014-1258

1

$60.35

In stock

53066

SEAT-ASSY,GREEN/BLACK

53066-0456-49F

1
Out of stock

92150

BOLT,FLANGED,6X14

92150-1689

1
Out of stock

92152

COLLAR

92152-0789

1
Out of stock

92153

BOLT,6X20

92153-0502

1
Out of stock
