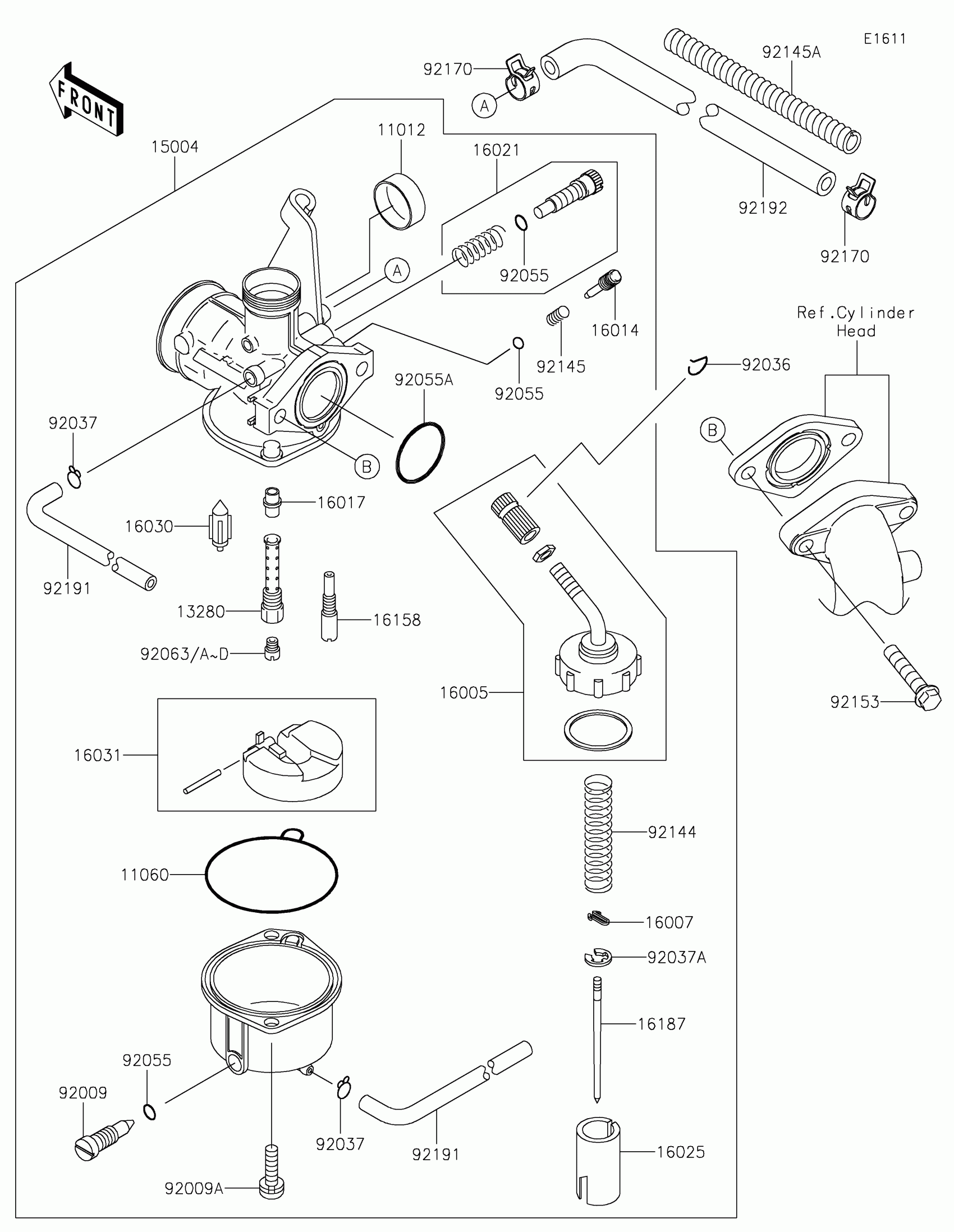

Kawasaki KLX110L Carburetor Diagram

#

Description
Price

11012

CAP,CHOKE

11012-1940

Unavailable

11060

GASKET,FLOAT CHAMBER

11060-1700

$16.00

13280

HOLDER,NEEDLE JET

13280-0359

$29.08

15004

CARBURETOR-ASSY,PB18

15004-0065

$166.76

16005

TOP-CHAMBER

16005-1091

$19.29

16007

SEAT-SPRING

16007-1103

$5.55

16014

SCREW-PILOT AIR

16014-0011

$14.37

16017

JET-NEEDLE

16017-1434

$48.05

16021

SCREW-THROTTLE STOP

16021-1241

$16.39

16025

VALVE-THROTTLE,CA3.0

16025-1209

$100.82

16030

VALVE-FLOAT,FLOAT

16030-0002

Unavailable

16031

FLOAT

16031-1088

$53.57

16158

JET-SLOW,#40

16158-0005

$12.91

16187

NEEDLE-JET,NCFA

16187-1228

$36.62

92009

SCREW,DRAIN

92009-1057

$7.71

92009A

SCREW

92009-1750

$3.92

92036

RING-SNAP

92036-018

$2.97

92037

CLAMP,TUBE

92037-1142

$3.29

92037A

CLAMP,JET NEEDLE

92037-1401

$3.29

92055

RING-O

92055-1053

$3.24

92055A

RING-O

92055-1541

$1.96

92063

JET-MAIN,#78

92063-1393

$12.68

92063A

JET-MAIN,#72

92063-1394

Unavailable

92063B

JET-MAIN,#75

92063-1395

Unavailable

92063C

JET-MAIN,#80

92063-1396

Unavailable

92063D

JET-MAIN,#82

92063-1397

Unavailable

92144

SPRING,THROTTLE

92144-1875

$15.36

92145

SPRING

92145-0004

$5.27

92145A

SPRING,HOSE PROTECTER

92145-1481

$4.61

92153

BOLT,FLANGED-SMALL,6X28

92153-1309

$2.42

92170

CLAMP

92170-1872

$3.05

92191

TUBE,3.5X6.5X418

92191-1735

$13.73

92192

TUBE,5.8X10.8X277

92192-0583

$75.97
