2022 Kawasaki KLX110L Brake Pedal Diagram

← All diagrams

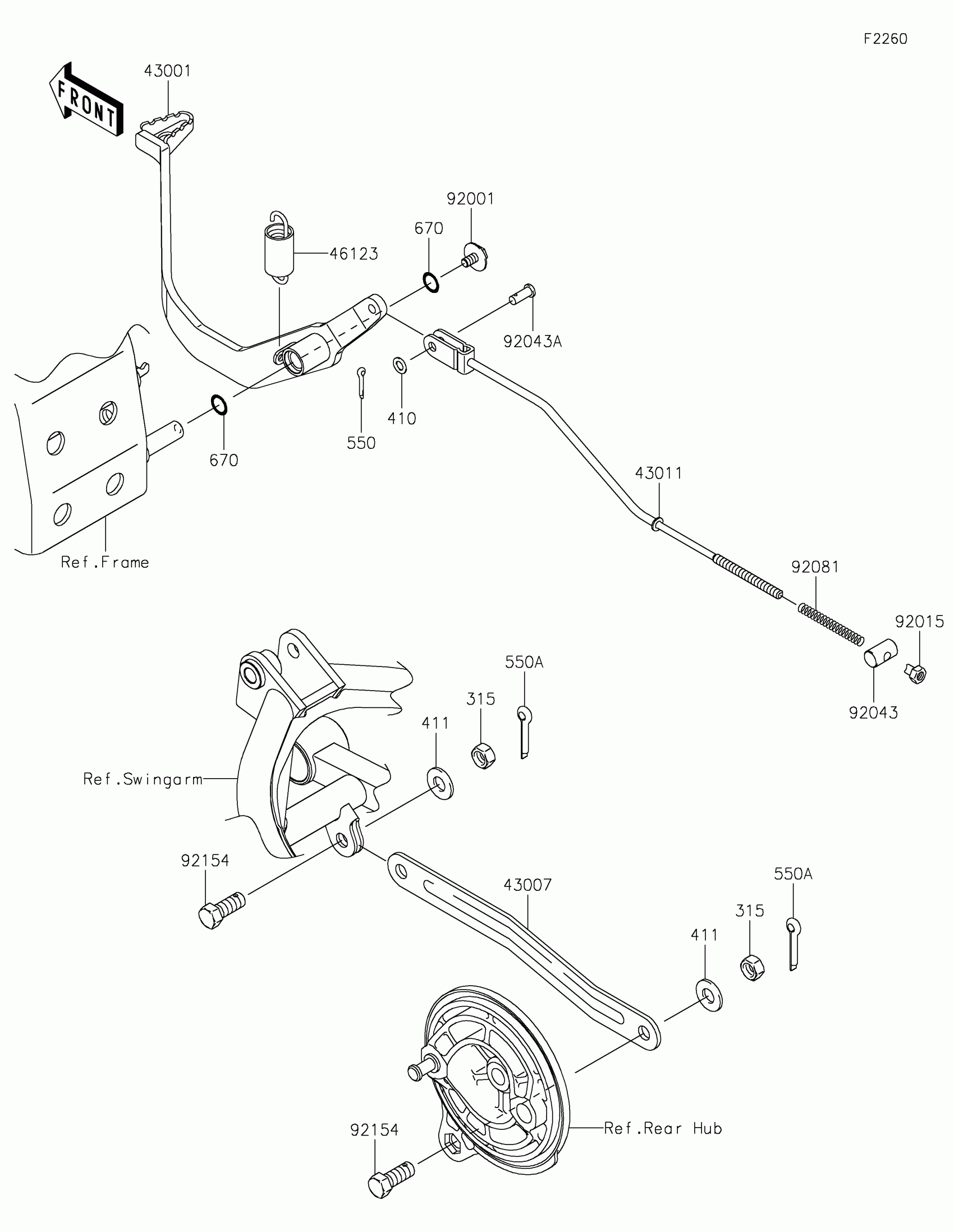

Find the part on the Brake Pedal diagram for your 2022 Kawasaki KLX110L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki KLX110L Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43001

LEVER-BRAKE,PEDAL

43001-0122

1
Out of stock

43007

ROD-TORQUE

43007-0015

1
Out of stock

43011

ROD-BRAKE

43011-0010

1
Out of stock

46123

SPRING-COMP,BRAKE PEDAL RETURN

46123-1060

1
Out of stock

92001

BOLT,FLANGED,6X10

92001-1034

1
Out of stock

92015

NUT,BRAKE ROD

92015-042

1
Out of stock

92043

PIN,BRAKE ROD

92043-0147

1
Out of stock

92043A

PIN,6X12.8

92043-1542

1
Out of stock

92081

SPRING,BRAKE ROD

92081-1688

1
Out of stock

92154

BOLT,10X25

92154-4368

1
Out of stock

315

NUT-HEX-FINE,10MM

315BA1000

1
Out of stock

410

WASHER-PLAIN-SMALL

410AA0600

1
Out of stock

411

WASHER-PLAIN,10MM

411AA1000

1
Out of stock

550

PIN-COTTER,2.0X15

550AA2015

1
Out of stock

550A

PIN-COTTER,2.0X20

550AA2020

1
Out of stock

670

O RING,12MM

670B2012

1
Out of stock
