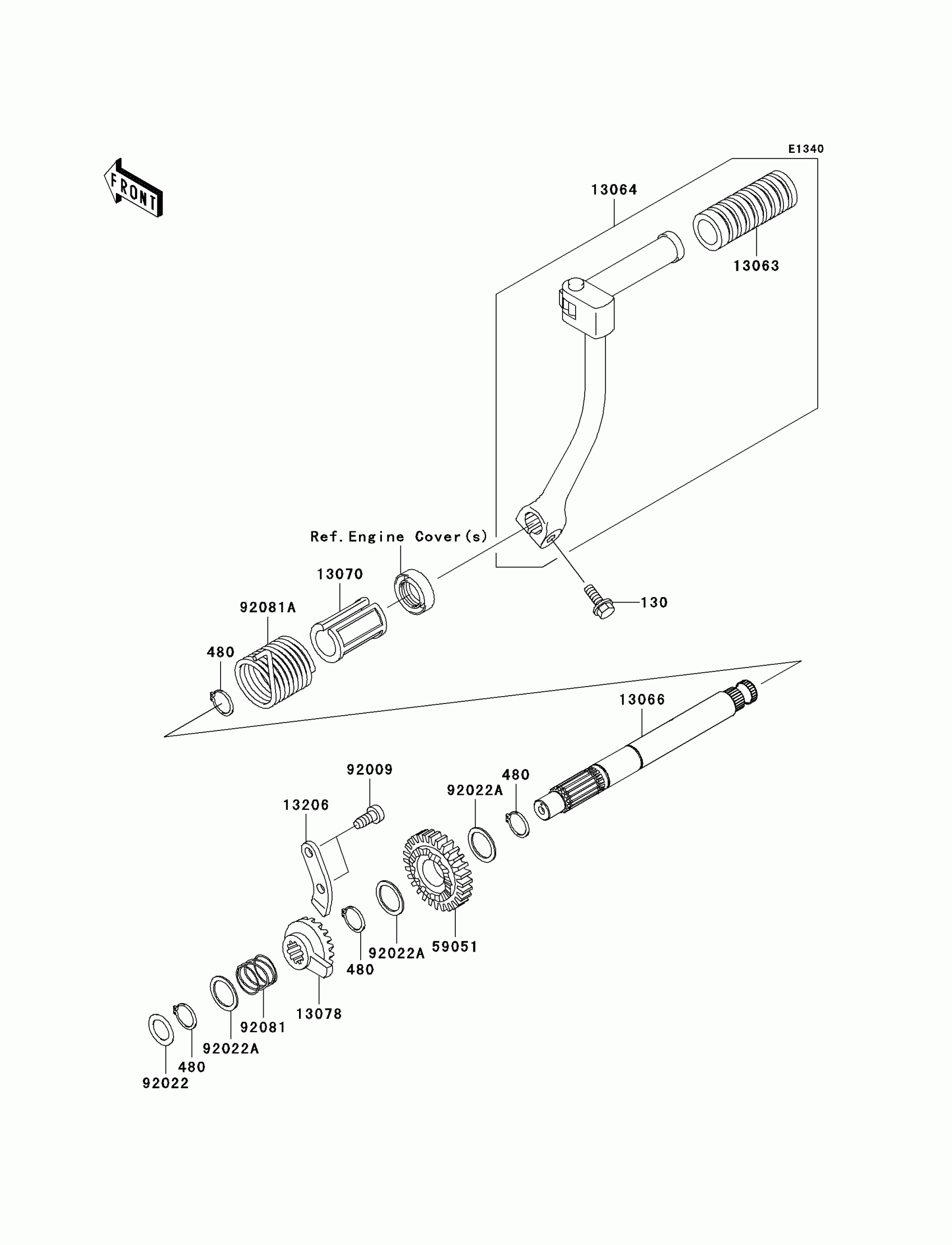

Kawasaki KLX110 Kickstarter Mechanism(A1) Diagram

Description

Price

130

BOLT-FLANGED

130P0622

Unavailable

480

CIRCLIP-TYPE-C,16MM

480J1600

$3.43

13063

DAMPER,PEDAL

13063-002

$3.58

13064

LEVER-ASSY-KICK

13064-1211

Unavailable

13066

SHAFT-KICK

13066-1089

$84.60

13070

GUIDE,KICK SHAFT

13070-1035

$7.81

13078

RATCHET

13078-1052

$67.80

13206

GUIDE-KICK

13206-1006

$7.81

59051

GEAR-SPUR,KICKSTARTER,23T

59051-1385

$41.42

92009

SCREW,TAPPING

92009-1104

$3.15

92022

WASHER,13.2X20X0.5

92022-1224

$3.43

92022A

WASHER,16.8X22X0.5

92022-315

$4.93

92081

SPRING,RATCHET

92081-122

$6.98

92081A

SPRING,KICK STARTER

92081-1276

$10.27
