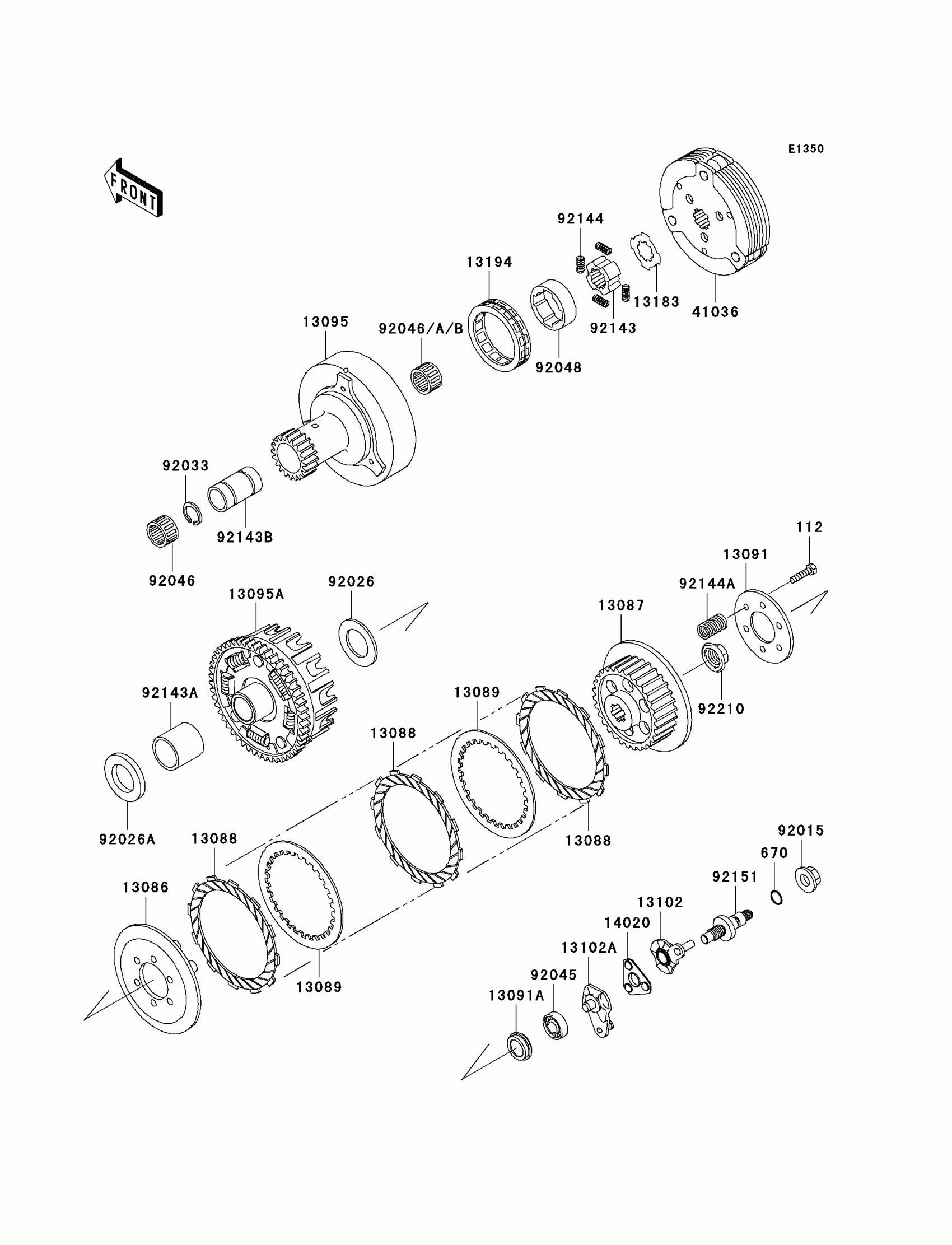

Kawasaki KLX110 Clutch(A1) Diagram

#

Description
Price

112

BOLT-UPSET

112G0520

Unavailable

670

O RING,8MM

670B1508

$1.00

13086

WHEEL-CLUTCH

13086-1065

$26.05

13087

HUB-CLUTCH

13087-1151

$41.45

13088

PLATE-FRICTION

13088-1111

$14.49

13089

PLATE-CLUTCH

13089-1087

$9.73

13091

HOLDER,CLUTCH

13091-1782

$7.76

13091A

HOLDER

13091-1787

$9.82

13095

HOUSING-COMP-CLUTCH

13095-1309

$410.61

13095A

HOUSING-COMP-CLUTCH

13095-1413

Unavailable

13102

RELEASE-COMP-CLUTCH

13102-1135

$56.07

13102A

RELEASE-COMP-CLUTCH

13102-1136

$48.51

13183

PLATE

13183-1480

$10.97

13194

CLUTCH-ONEWAY

13194-1103

Unavailable

14020

RETAINER

14020-1100

$13.29

41036

HUB-ASSY,CLUTCH

41036-1153

$227.32

92015

NUT,FLANGED,8MM

92015-1408

$4.07

92026

SPACER,17.3X30X2.0

92026-1415

$7.90

92026A

SPACER

92026-1464

$7.95

92033

RING-SNAP

92033-1240

$4.24

92045

BEARING-BALL,#628

92045-1123

$18.83

92046

BEARING-NEEDLE,BLUE

92046-1223

$16.59

92046A

BEARING-NEEDLE,RED

92046-1224

$15.19

92046B

BEARING-NEEDLE,WHITE

92046-1225

$15.19

92048

RACE

92048-1074

$38.96

92143

COLLAR

92143-1661

$43.06

92143A

COLLAR

92143-1663

$36.51

92143B

COLLAR

92143-1696

$44.49

92144

SPRING

92144-1556

$4.10

92144A

SPRING,CLUTCH

92144-1880

$5.73

92151

BOLT,CLUTCH RELEASE

92151-1069

$7.84

92210

NUT,14MM

92210-1374

$7.39
