Description

Price

11012

CAP,CHOKE

11012-1940

Unavailable

11060

GASKET,FLOAT CHAMBER

11060-1700

$16.00

13280

HOLDER,NEEDLE JET

13280-1092

$11.41

15003

CARBURETOR-ASSY

15003-1694

$168.22

16005

TOP-CHAMBER

16005-1091

$22.03

16007

SEAT-SPRING

16007-1103

$5.78

16014

SCREW-PILOT AIR

16014-1093

$15.69

16017

JET-NEEDLE

16017-1434

$48.05

16021

SCREW-THROTTLE STOP

16021-1241

$16.39

16025

VALVE-THROTTLE,CA3.0

16025-1209

$100.82

16030

VALVE-FLOAT,FLOAT

16030-0002

Unavailable

16031

FLOAT

16031-1088

$53.57

16158

JET-SLOW,#38

16158-1063

$11.79

16187

NEEDLE-JET,NCFA

16187-1228

$36.62

92009

SCREW,DRAIN

92009-1057

$7.71

92009A

SCREW

92009-1750

$3.92

92036

RING-SNAP

92036-018

$3.10

92037

CLAMP,TUBE

92037-1142

$3.43

92037A

CLAMP,JET NEEDLE

92037-1401

$3.43

92055

RING-O

92055-1053

$3.38

92055A

RING-O

92055-1541

$2.27

92055B

RING-O

92055-1542

$3.43

92063

JET-MAIN,#85

92063-1326

$14.63

92063A

JET-MAIN,#78

92063-1393

$10.54

92063B

JET-MAIN,#75

92063-1395

$12.00

92063C

JET-MAIN,#80

92063-1396

$12.00

92063D

JET-MAIN,#82

92063-1397

$12.00

92144

SPRING,THROTTLE

92144-1875

$15.36

92144A

SPRING

92144-1876

$5.27

92145

SPRING,HOSE PROTECTER

92145-1481

$4.84

92153

BOLT,FLANGED,6X30

92153-1187

$2.92

92170

CLAMP

92170-1872

$3.18

92191

TUBE,FUEL

92191-1700

$12.86

92191A

TUBE,3.5X6.5X418

92191-1735

$14.31

92200

WASHER

92200-1270

$2.05

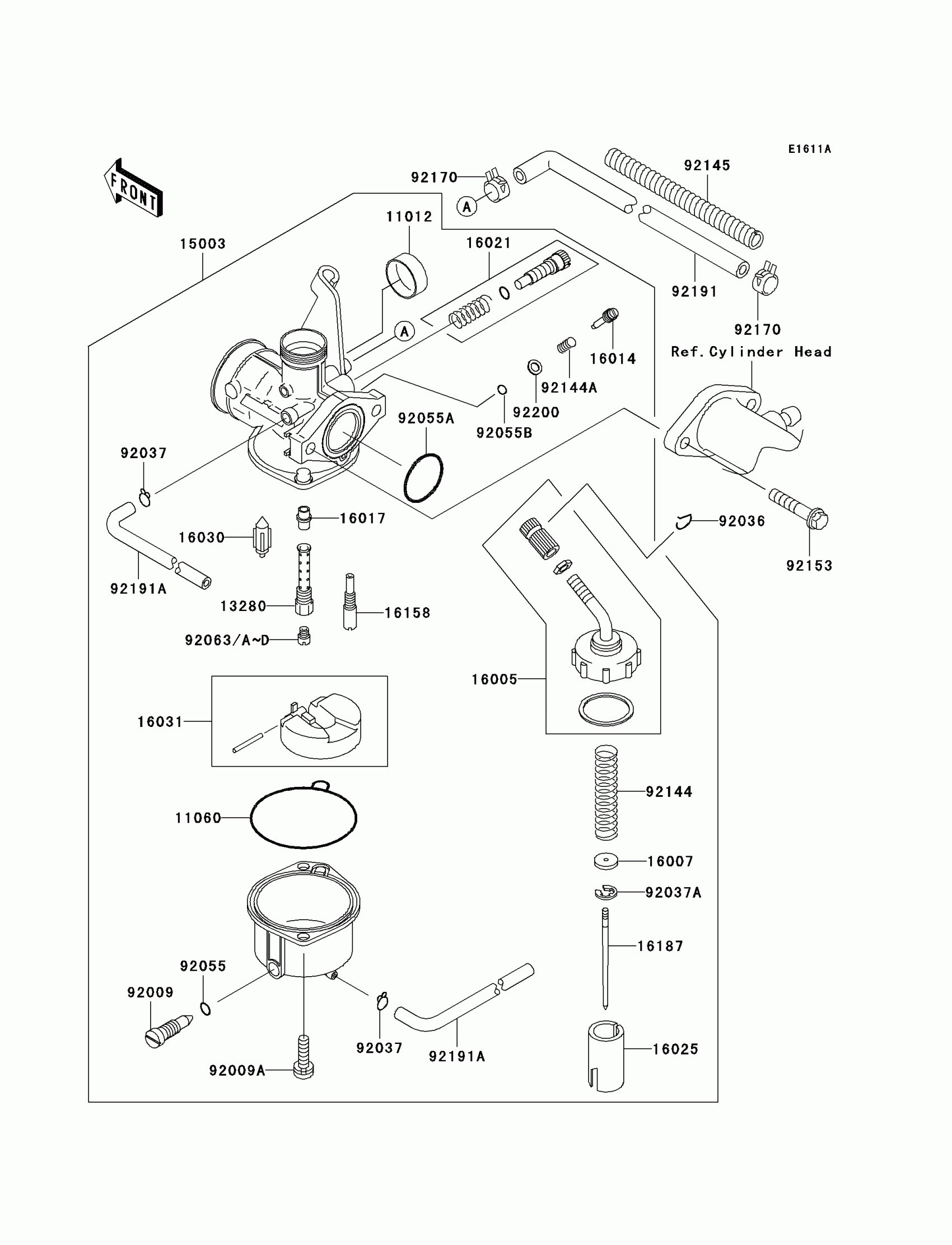

Kawasaki KLX110 Carburetor(A6F/A7F)(CN) Diagram

CAP,CHOKE

VALVE-FLOAT,FLOAT
