Partiron

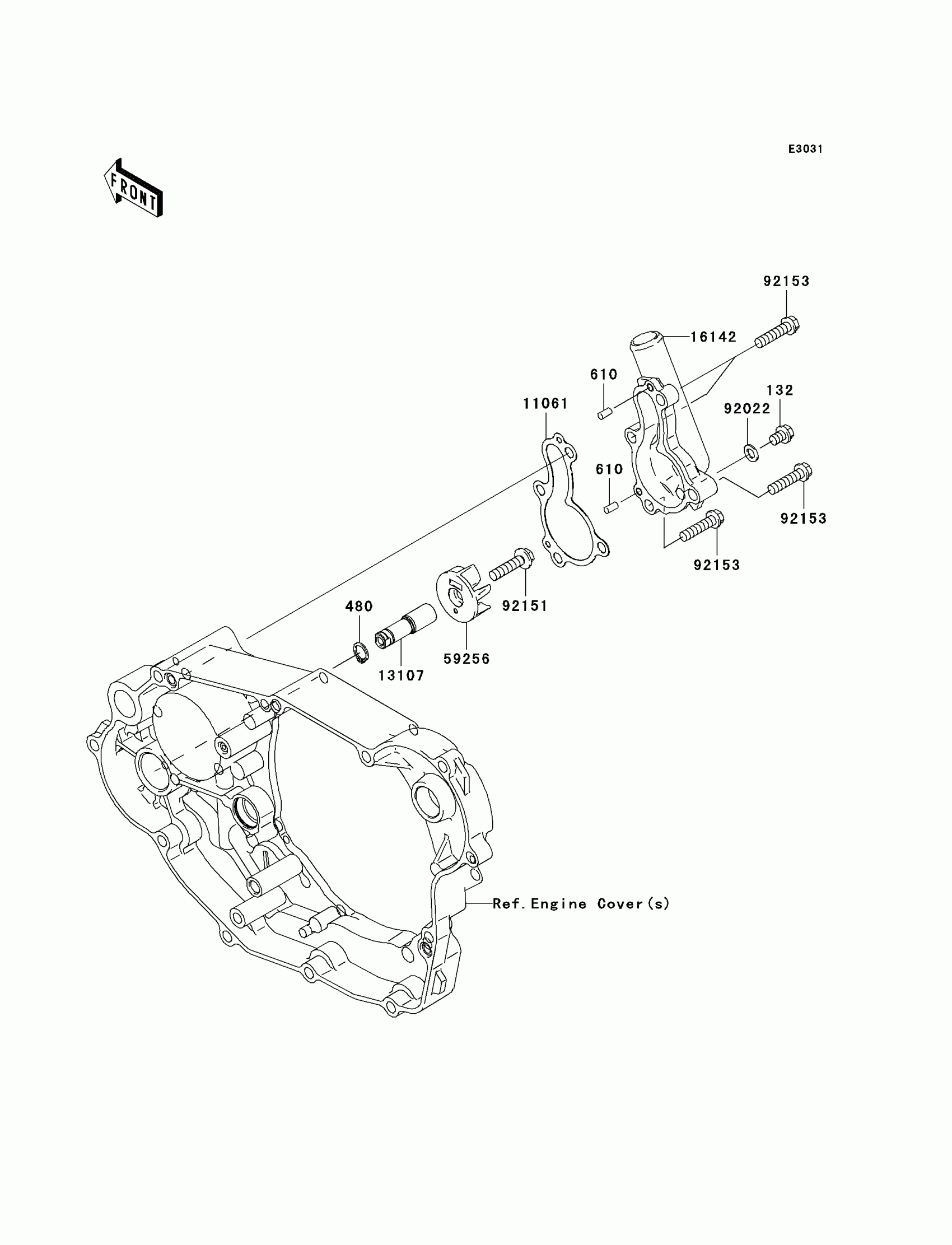

Kawasaki KLX®450R Water Pump Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X8

132BB0608

$3.24

480

CIRCLIP-TYPE-C,10MM

480J1000

$0.57

610

ROLLER,4X8

610A0408

$3.29

11061

GASKET,WATER PUMP COVER

11061-0225

$4.55

13107

SHAFT,WATER PUMP

13107-0135

$49.07

16142

COVER-PUMP,WATER

16142-0029

Unavailable

59256

IMPELLER

59256-0003

$41.09

92022

WASHER,6.2X11X1

92022-304

$2.76

92151

BOLT,FLANGED,6X25

92151-1546

$1.70

92153

BOLT,FLANGED-SMALL,6X25

92153-1784

Unavailable
