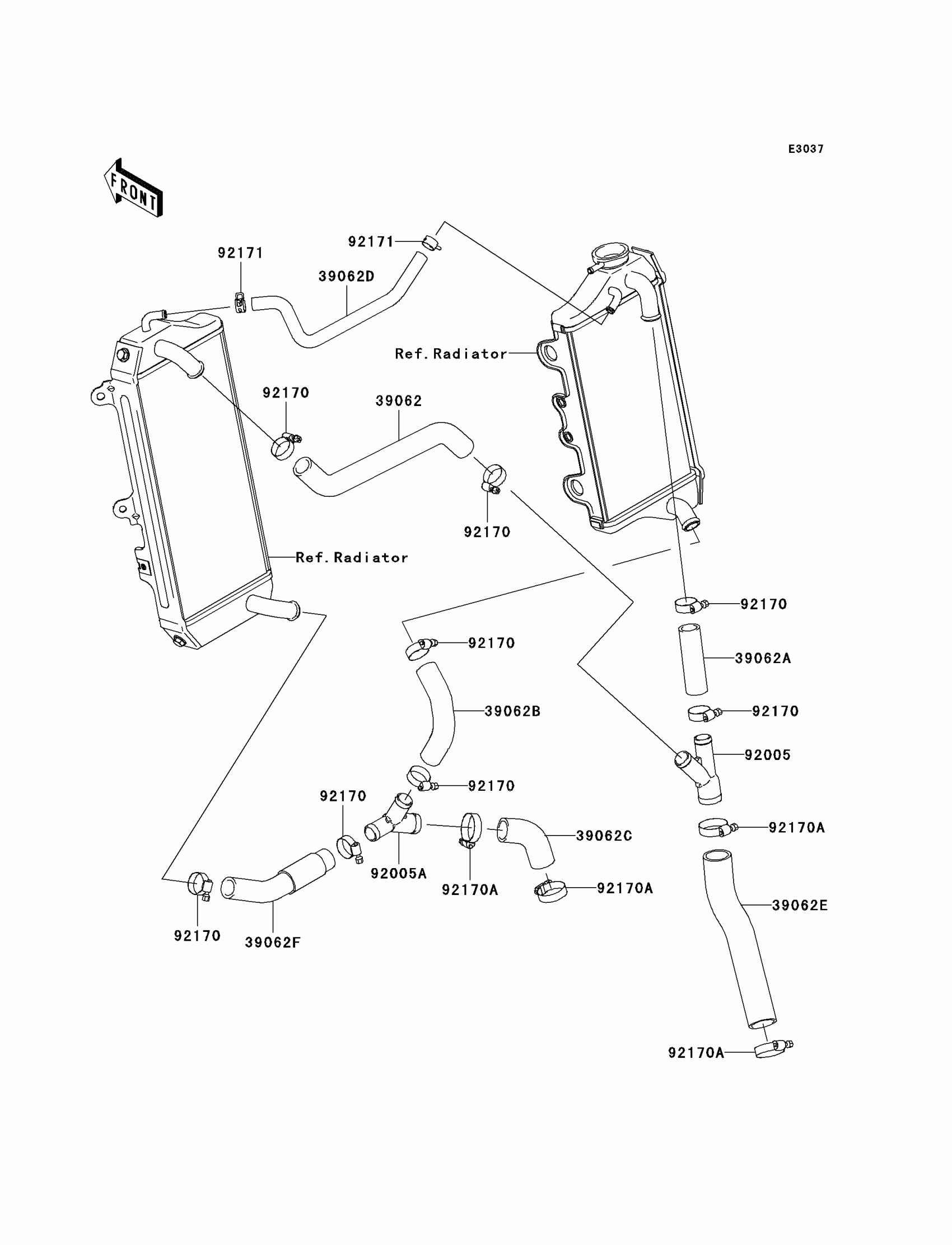

Kawasaki KLX®450R Water Pipe Diagram

Description

Price

39062

HOSE-COOLING,FIT.-RAD. LH UPP

39062-0084

$30.39

39062A

HOSE-COOLING,FIT.-RAD. RH UPP

39062-0085

$9.56

39062B

HOSE-COOLING,RAD.RH LOW-FIT.

39062-0087

$12.68

39062C

HOSE-COOLING,W/P-FIT.

39062-0088

$12.83

39062D

HOSE-COOLING,RAD. LH-RAD. RH

39062-0089

$19.88

39062E

HOSE-COOLING,HEAD-FIT.

39062-0216

$16.51

39062F

HOSE-COOLING,RAD.LH LOW-FIT.

39062-0224

$25.88

92005

FITTING,3WAY,HEAD-RAD

92005-0066

$31.36

92005A

FITTING,3WAY,RAD-W/P

92005-0067

$31.36

92170

CLAMP,HOSE,26MM

92170-1077

$6.37

92170A

CLAMP,HOSE,32MM

92170-1286

Unavailable

92171

CLAMP,CLIP,12.5MM

92171-0372

$2.71
