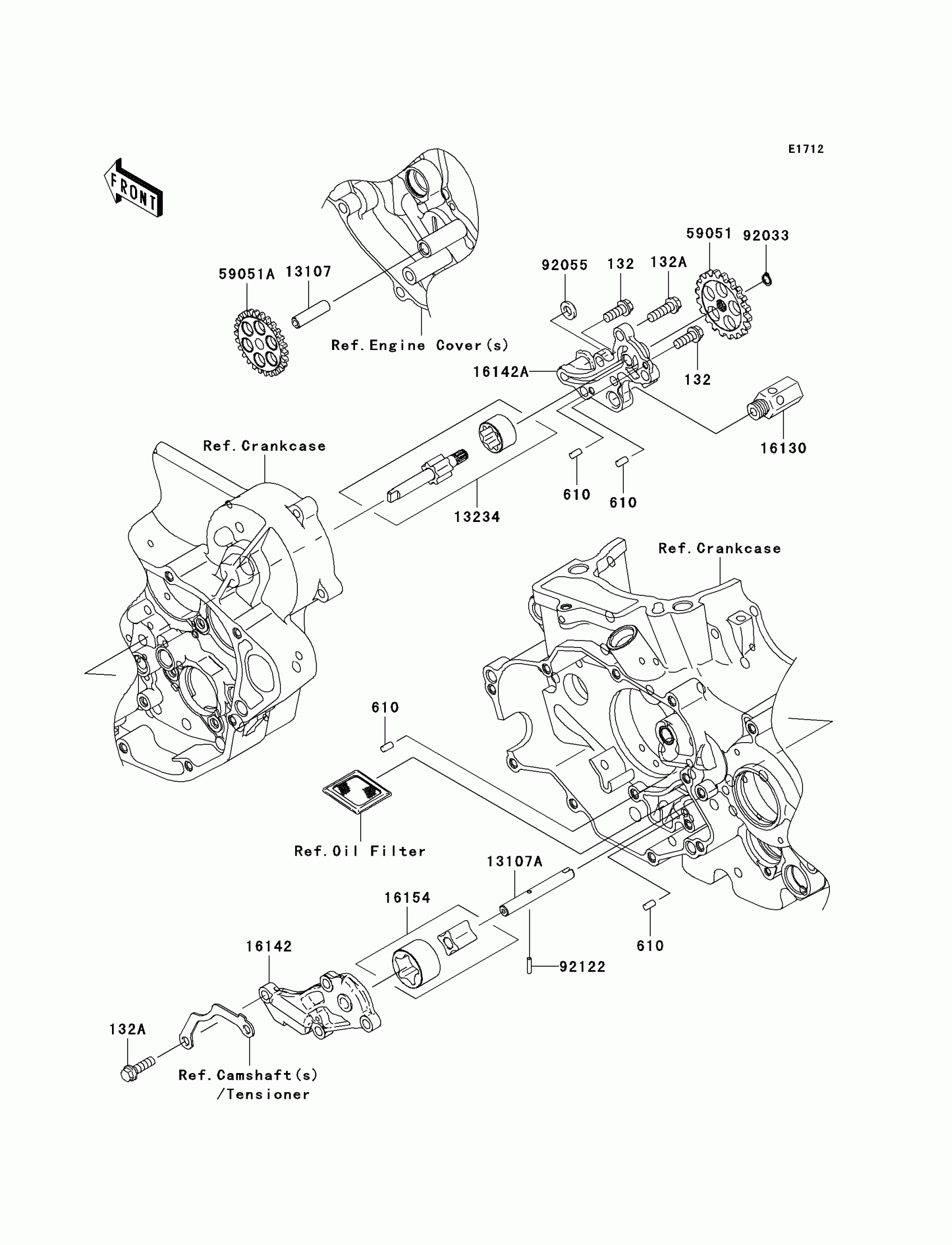

Kawasaki KLX®450R Oil Pump Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.16

132A

BOLT-FLANGED-SMALL,6X20

132BA0620

$1.77

610

ROLLER,4X8

610A0408

$3.29

13107

SHAFT

13107-0056

$7.61

13107A

SHAFT,OIL PUMP,SCAVENGE

13107-0134

$32.46

13234

SHAFT-COMP,FEED

13234-0036

$101.43

16130

VALVE-ASSY-RELIEF

16130-1058

$37.32

16142

COVER-PUMP,OIL,LH

16142-0042

$41.29

16142A

COVER-PUMP,OIL,RH

16142-0049

$41.32

16154

ROTOR-PUMP,SCAVENGE

16154-0069

$28.61

59051

GEAR-SPUR,O/P DRIVEN,28T

59051-0044

$26.91

59051A

GEAR-SPUR,O/P IDLER,26T

59051-0045

$41.29

92033

RING-SNAP

92033-0019

$1.04

92055

RING-O,OD=13

92055-074

$6.55

92122

ROLLER,2.5X11.8

92122-0021

$1.85
