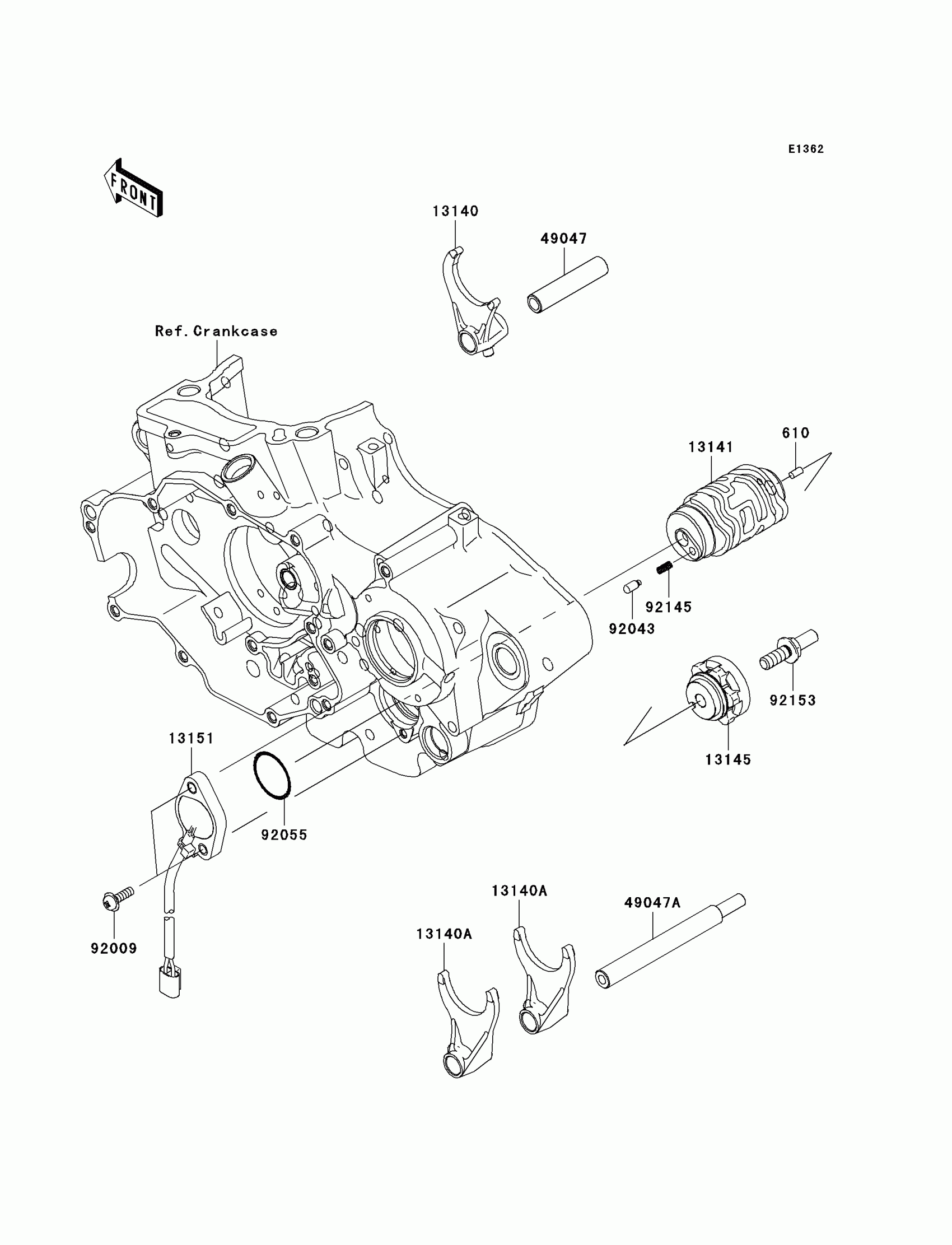

Kawasaki KLX®450R Gear Change Drum/Shift Fork(s) Diagram

Description

Price

610

ROLLER,4X8

610A0408

$3.29

13140

FORK-SHIFT,IN

13140-0043

$95.58

13140A

FORK-SHIFT,OUT

13140-0047

$95.58

13141

DRUM-CHANGE

13141-0028

$109.46

13145

CAM-CHANGE DRUM

13145-0031

$67.96

13151

SWITCH-COMP,NEUTRAL

13151-0037

$68.80

49047

ROD-SHIFT,IN

49047-0017

$15.78

49047A

ROD-SHIFT,OUT

49047-0028

$38.22

92009

SCREW,5X16

92009-1571

$2.19

92043

92043-1654

$2.84

92055

RING-O,27.7X2.4

92055-091

$4.67

92145

SPRING

92145-1414

$3.03

92153

BOLT,8X20

92153-0530

$5.39
