2009 Kawasaki KLX®450R Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2009 Kawasaki KLX®450R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

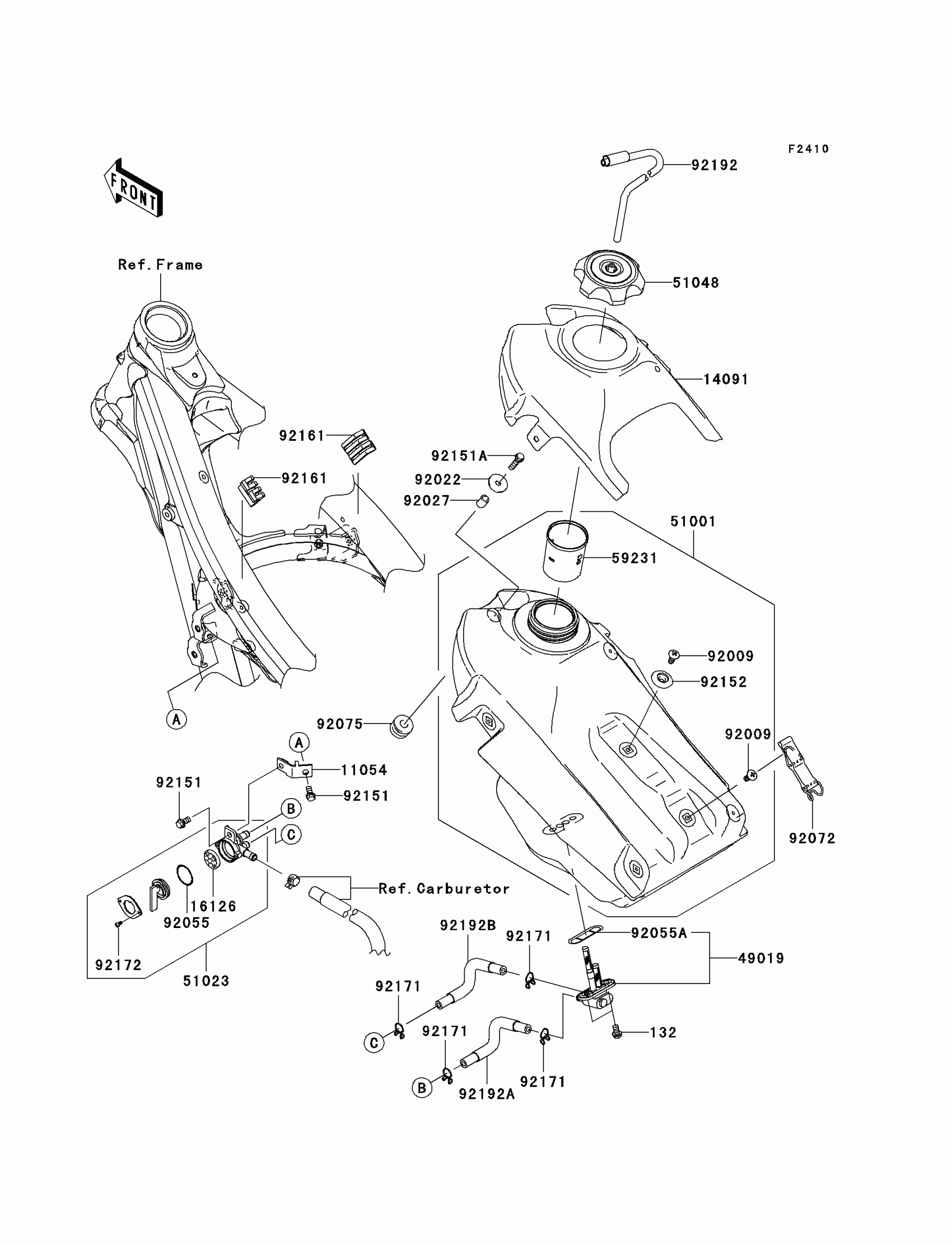

2009 Kawasaki KLX®450R Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.73

In stock

11054

BRACKET,FUEL TAP

11054-1092

1

$9.93

In stock

14091

COVER,FUEL TANK,F.BLACK

14091-0843-6Z

1
Out of stock

16126

VALVE

16126-0027

1
Out of stock

49019

FILTER-FUEL

49019-0005

1
Out of stock

51001

TANK-COMP-FUEL,F.BLACK

51001-0153-6Z

1
Out of stock

51023

TAP-ASSY,FUEL

51023-0026

1
Out of stock

51048

CAP-ASSY-TANK,FUEL

51048-0009

1
Out of stock

59231

FILLER

59231-0019

1
Out of stock

92009

SCREW,6MM

92009-1971

1
Out of stock

92022

WASHER,6.5X24X2

92022-1690

1
Out of stock

92027

COLLAR,6.8X10X14

92027-1966

1
Out of stock

92055

RING-O

92055-0111

1
Out of stock

92055A

RING-O,FUEL TAP PACKING

92055-1348

1
Out of stock

92072

BAND,FUEL TANK

92072-0045

1
Out of stock

92075

DAMPER

92075-1787

1
Out of stock

92151

BOLT,6X12

92151-1133

1
Out of stock

92151A

BOLT,FLANGED-SMALL,6X25

92151-1930

1
Out of stock

92152

COLLAR

92152-1346

1
Out of stock

92161

DAMPER,FUEL TANK,SIDE

92161-0254

1
Out of stock

92171

CLAMP

92171-0149

1

$3.29

In stock

92172

SCREW,3X6

92172-0259

1
Out of stock

92192

TUBE

92192-0161

1
Out of stock

92192A

TUBE,ON

92192-0409

1
Out of stock

92192B

TUBE,RESERVE

92192-0503

1
Out of stock
