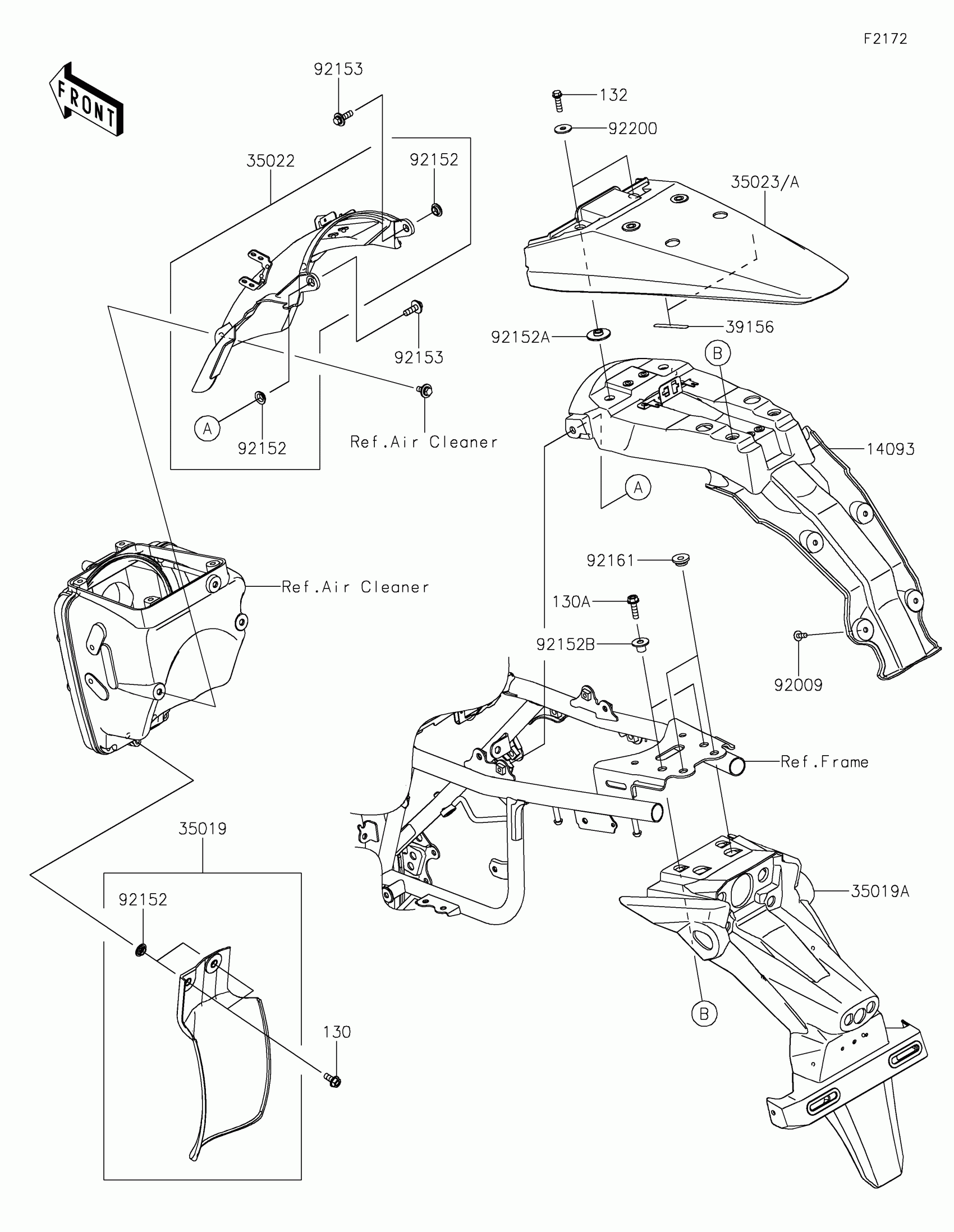

Kawasaki KLX®300SM Rear Fender(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X22

132BA0622

$1.66

35019

FLAP,RR FENDER,FR

35019-0004

$8.46

35019A

FLAP,RR

35019-0691

$68.93

35022

FENDER-COMP-REAR,RR,O.BLUE

35022-0039-274

$79.90

35022A

FENDER-COMP-REAR,RR,L.GREEN

35022-0039-290

$75.69

35022B

FENDER-COMP-REAR,FR

35022-0114

$36.68

92027

COLLAR,6.5X10X14.1

92027-1183

$4.18

92037

CLAMP,SPEED,L=58

92037-1163

$4.93

92075

DAMPER,10X24X12

92075-1690

$3.81

92143

COLLAR

92143-1196

$3.57

92150

BOLT,FLANGED,6X16

92150-1506

$3.81

92152

COLLAR,8.8X11.2X4

92152-0909

$4.27

92153

BOLT,6X20

92153-0502

$1.98

92154

BOLT,FLANGED,6X30

92154-1080

$0.95

92160

DAMPER

92160-1303

$0.80

92210

NUT,6MM

92210-0474

$4.18
