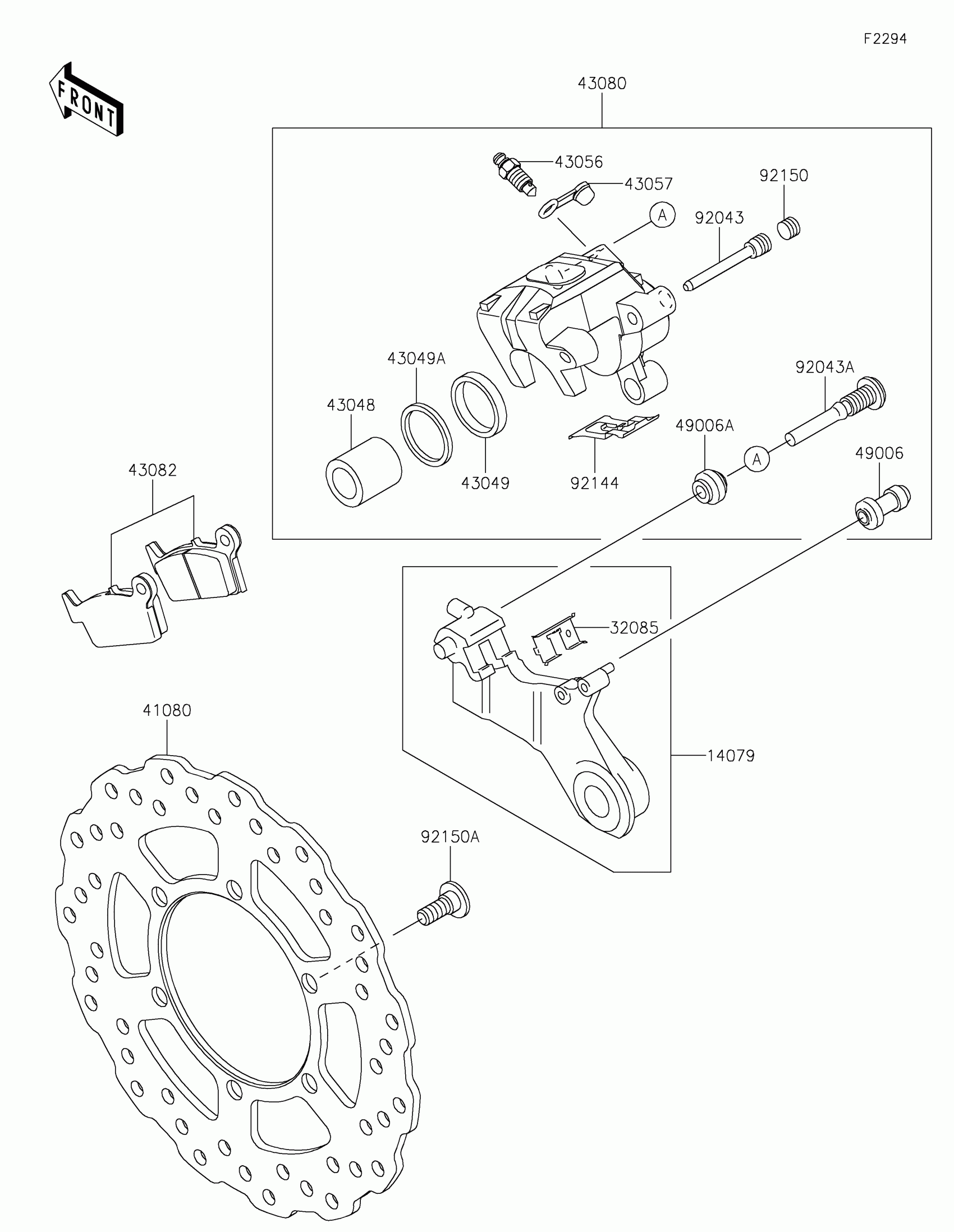

Kawasaki KLX®300SM Rear Brake Diagram

Description

Price

14079

HOLDER-ASSY,REAR CALIPER

14079-0030

$160.14

32085

STOPPER,PAD

32085-1386

$6.75

41080

DISC,RR,BLACK

41080-0116-11H

$296.10

43048

PISTON-CALIPER

43048-1068

$83.43

43049

PACKING,PISTON SEAL

43049-1060

$14.67

43049A

PACKING,PISTON SEAL

43049-1061

$8.04

43056

BREATHER-BRAKE

43056-0004

$12.83

43057

CAP-BREATHER

43057-1001

$3.73

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0069-25S

$356.42

43082

PAD-ASSY-BRAKE

43082-0090

$74.33

49006

BOOT,CALIPER

49006-1088

$8.83

49006A

BOOT,CALIPER

49006-1242

$4.14

92043

PIN,HANGER

92043-1507

$10.44

92043A

92043-1508

$10.44

92144

SPRING,PAD

92144-1819

$6.13

92150

BOLT,PLUG

92150-1692

$5.99

92150A

BOLT,DISC PLATE,8X15

92150-1811

$3.81
