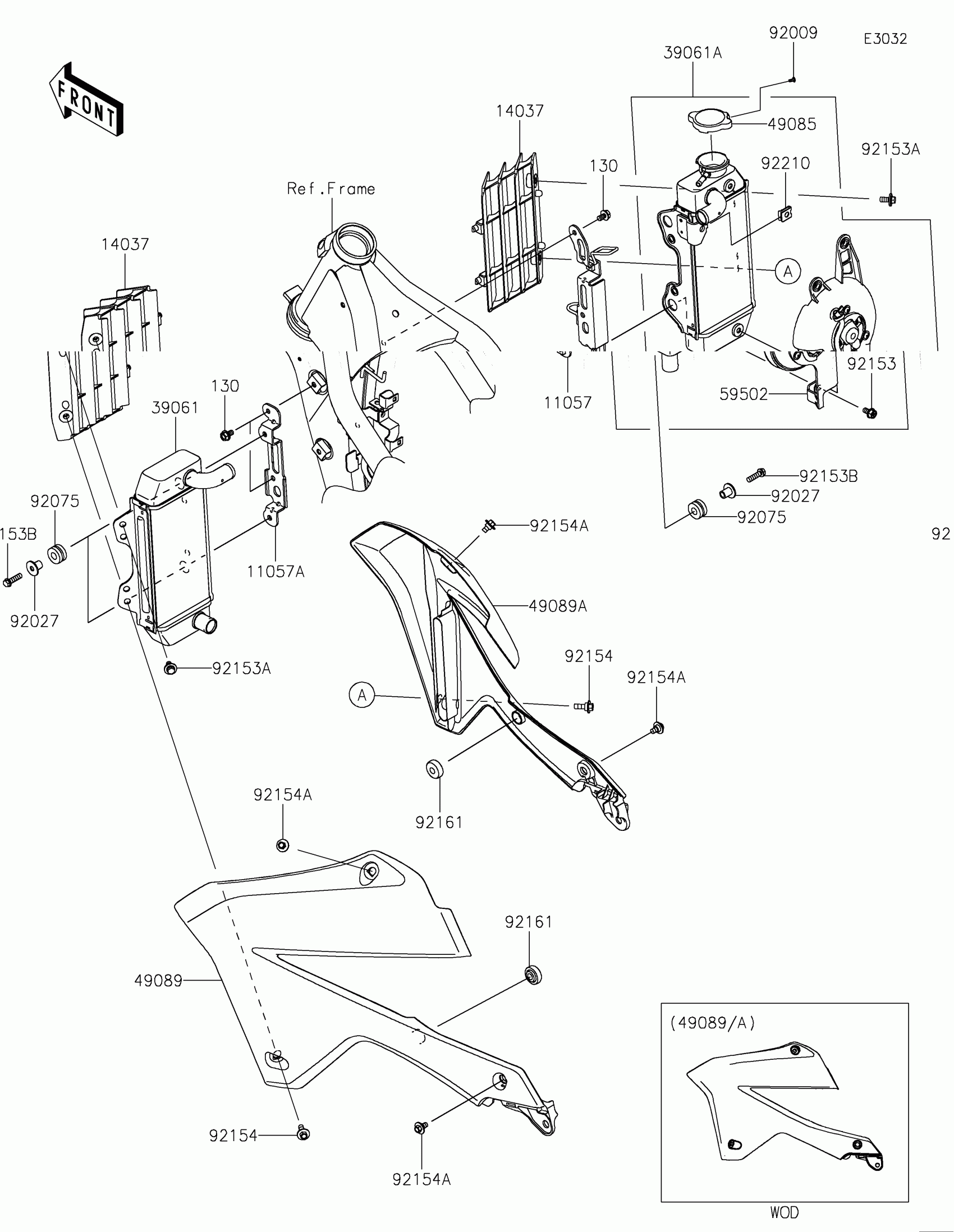

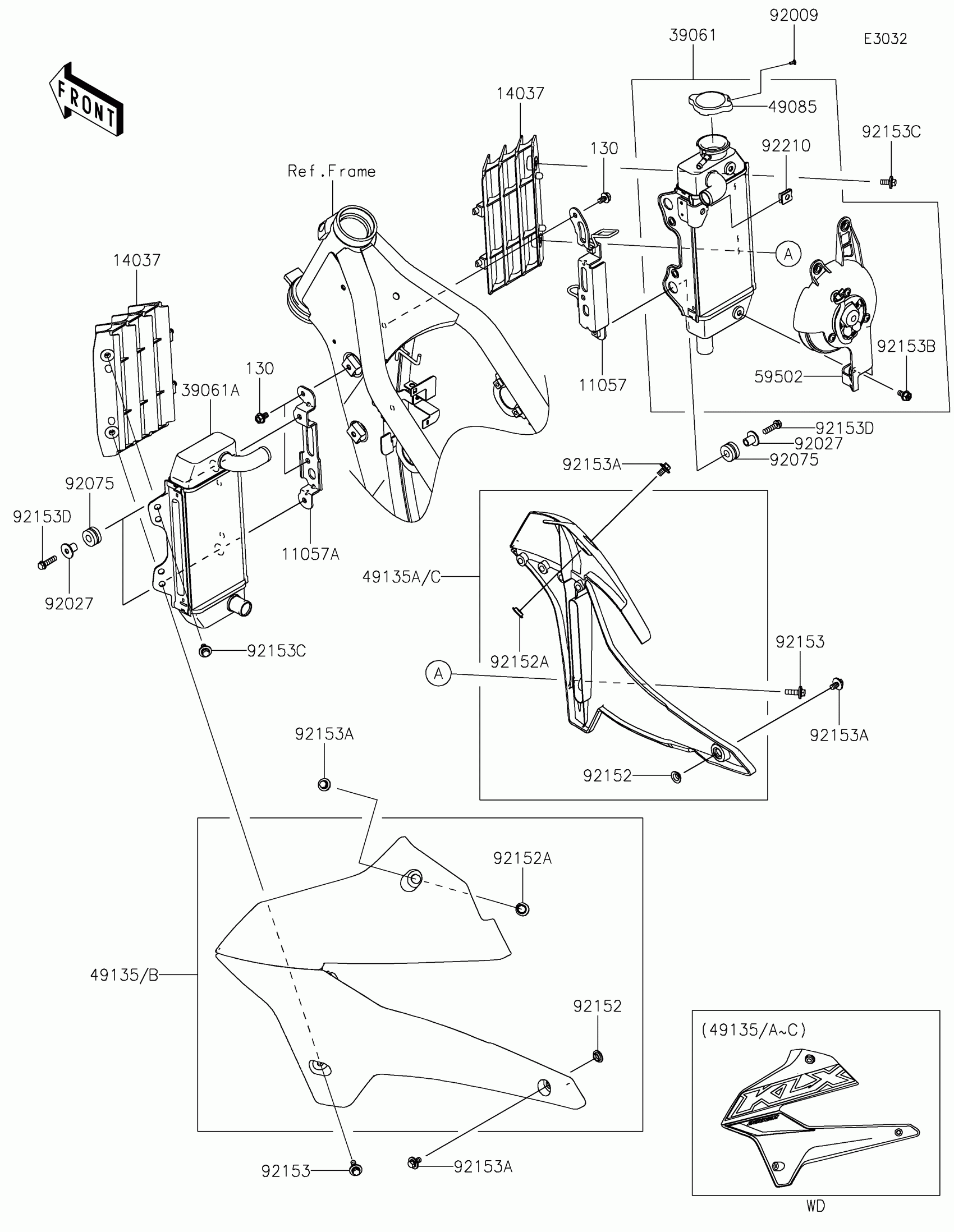

Kawasaki KLX®300SM Radiator Diagram

#

Description
Price

11057

BRACKET,RADIATOR,RH

11057-4251

$28.75

11057A

BRACKET,RADIATOR,LH

11057-4252

$16.24

130

BOLT-FLANGED,6X10

130BA0610

$0.97

14037

SCREEN,RADIATOR

14037-0814

$24.17

39061

RADIATOR-ASSY,RH

39061-0823

$475.68

39061A

RADIATOR-ASSY,LH

39061-0825

Unavailable

49085

CAP-ASSY-PRESSURE

49085-0018

$44.37

49135

SHROUD-ENGINE,LH,EBONY+EBY

49135-5252-25L

$198.64

49135A

SHROUD-ENGINE,RH,EBONY+EBY

49135-5253-25L

$198.64

49135B

SHROUD-ENGINE,LH,EBONY+EBY

49135-5258-25L

$198.64

49135C

SHROUD-ENGINE,RH,EBONY+EBY

49135-5259-25L

$198.64

59502

FAN-ASSY

59502-0636

$582.91

92009

SCREW,TAPPING,3X6

92009-1844

$0.71

92027

COLLAR,6.5X10X14.1

92027-1183

$4.18

92075

DAMPER RUBBER,RR FENR

92075-209

$3.57

92152

COLLAR,8.8X11.2X4

92152-0909

$4.27

92152A

COLLAR

92152-1235

$3.15

92153

BOLT,6X20

92153-0502

$1.98

92153A

BOLT,6X12

92153-0503

$1.98

92153B

BOLT

92153-0531

$1.85

92153C

BOLT,FLANGED,6X14

92153-0936

$2.09

92153D

BOLT,FLANGED-SMALL,6X22

92153-1560

$1.81

92210

NUT

92210-1323

$3.19
