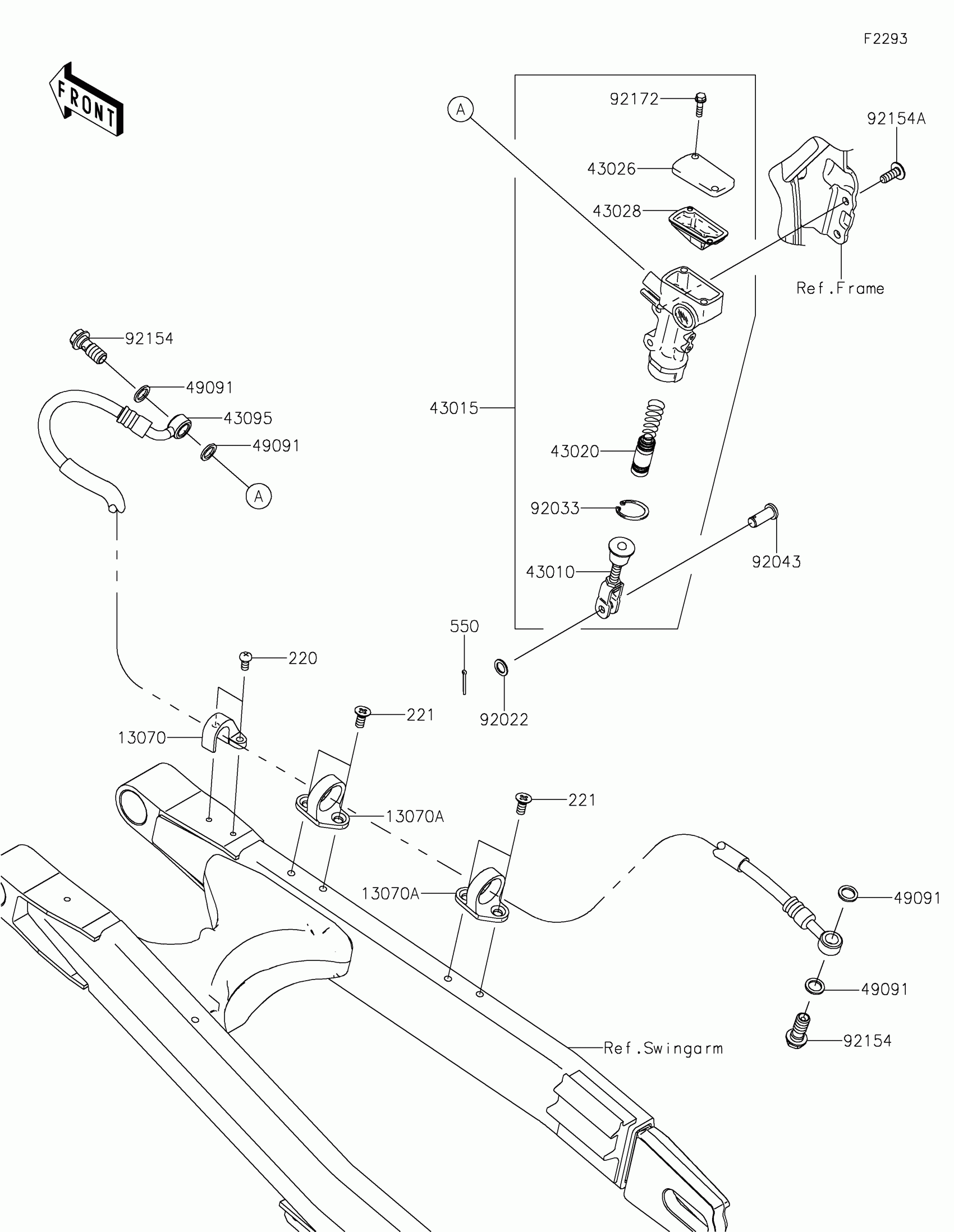

Kawasaki KLX®300R Rear Master Cylinder Diagram

Description

Price

13070

GUIDE,BRAKE HOSE

13070-0826

$1.93

13070A

GUIDE,HOSE

13070-1144

$6.13

220

SCREW-PAN-CROS,5X10

220AA0510

$0.65

221

SCREW-CSK-CROS,6X10

221AA0610

$2.79

43010

ROD-ASSY-BRAKE

43010-1087

$55.97

43015

CYLINDER-ASSY-MASTER

43015-0168

$316.44

43020

PISTON-COMP-BRAKE

43020-1094

$58.51

43026

CAP-BRAKE

43026-0023

$15.32

43028

DIAPHRAGM

43028-1092

$16.80

43095

HOSE-BRAKE,M/CYLINDER-CALIPER

43095-1643

$96.47

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

550

PIN-COTTER,2.0X15

550AA2015

$0.90

92022

WASHER,8.5X13X1

92022-1028

$2.99

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$5.94

92043

92043-0004

$8.49

92154

BOLT,FLANGED,10X23

92154-0732

$3.85

92154A

BOLT,SOCKET,6X16

92154-1678

$1.27

92172

SCREW

92172-1064

$1.54
