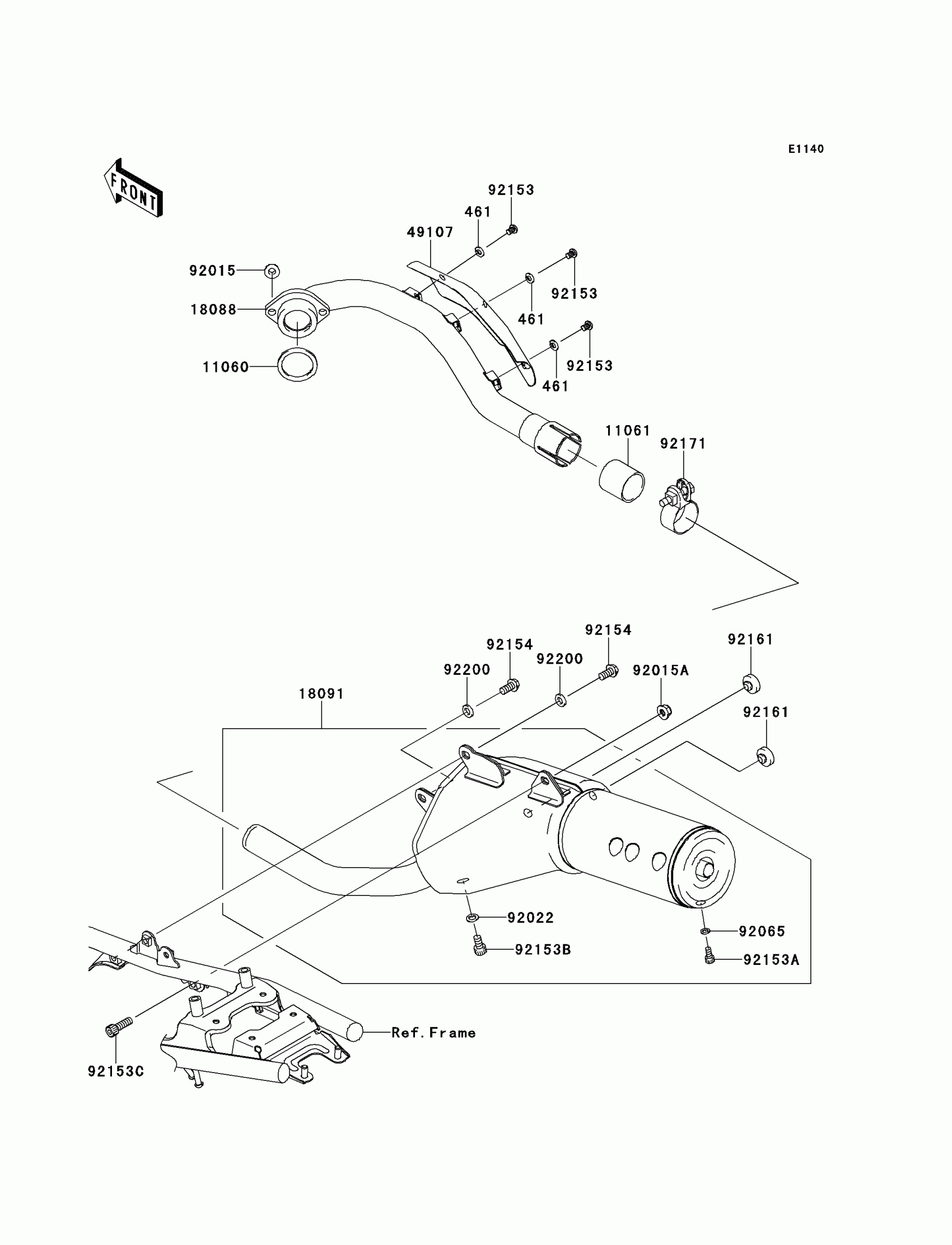

Kawasaki KLX®250SF Muffler(s) Diagram

Description

Price

461

WASHER-SPRING,6MM

461S0600

$0.84

11060

GASKET,EXHAUST PIPE

11060-1203

$8.22

11061

GASKET,EXHAUST PIPE CONNECTING

11061-1055

$12.52

18088

PIPE-EXHAUST

18088-0512

$180.57

18091

BODY-COMP-MUFFLER

18091-0581

$645.01

49107

COVER-EXHAUST PIPE

49107-0062

$45.14

92015

NUT,8MM

92015-1402

$3.57

92015A

NUT,8MM

92015-1432

$4.93

92022

WASHER,8.2X14X1.0

92022-1488

$4.34

92065

GASKET

92065-096

$3.54

92153

BOLT,6X8

92153-0578

$1.81

92153A

BOLT,SOCKET,6X12

92153-1347

$2.42

92153B

BOLT,SOCKET,8X14

92153-1348

$3.14

92153C

BOLT,SOCKET,8X25

92153-1350

$2.71

92154

BOLT,FLANGED,8X16

92154-0059

$1.81

92161

DAMPER

92161-0336

$4.27

92171

CLAMP

92171-0631

$17.75

92200

WASHER,8.1X15X2.3

92200-0449

$3.27
