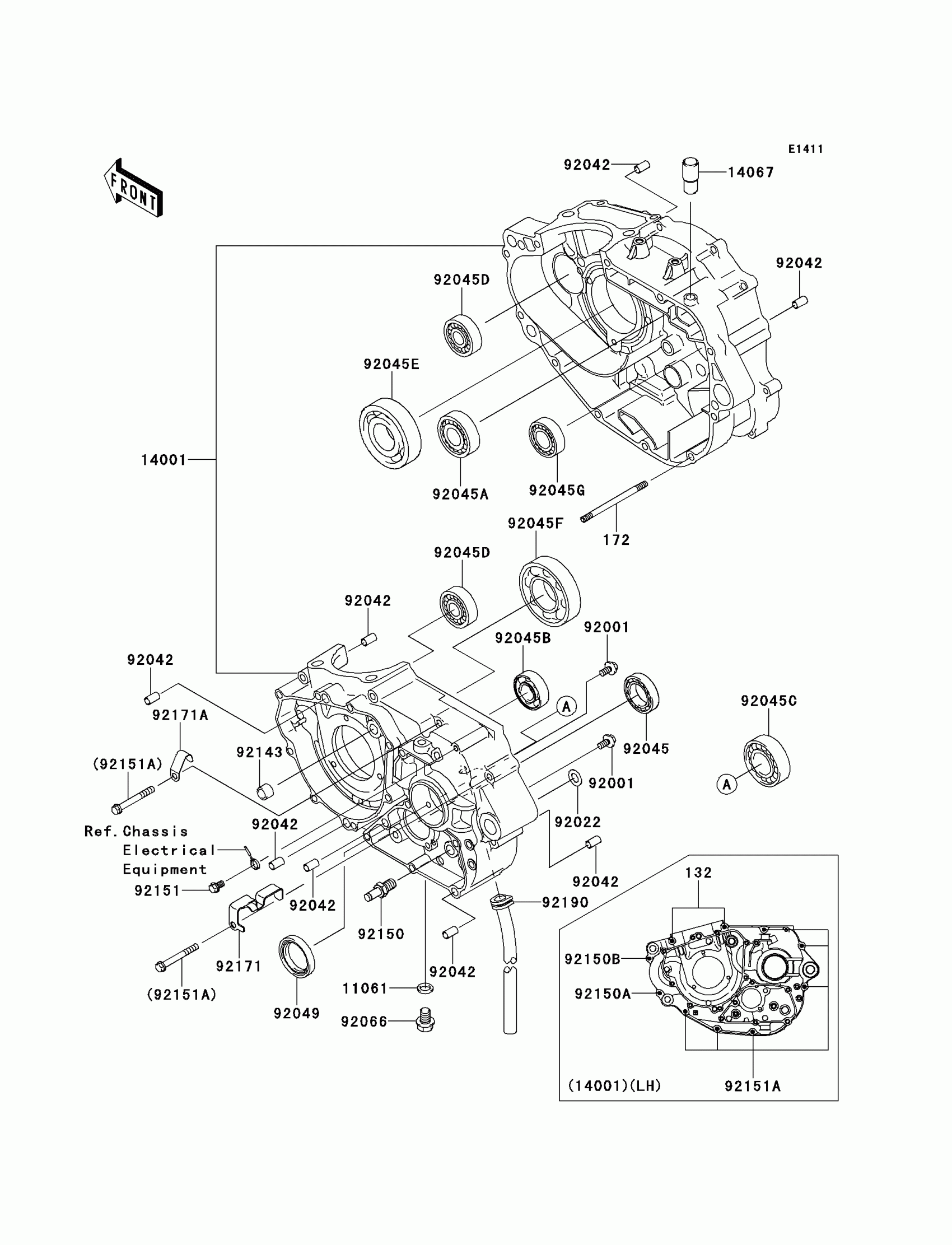

Kawasaki KLX®250SF Crankcase Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X70

132BC0670

$3.51

172

BOLT-STUD,6X80

172BA0680

$1.95

11061

GASKET,10.5X16X2

11061-0222

$4.24

14001

SET-CRANKCASE

14001-0138

$800.64

14067

FITTING,BREATHER

14067-006

$19.78

92001

BOLT,W/WASHER,6X14

92001-1829

$3.53

92022

WASHER,10.2X18X1.0,SK5

92022-1415

$4.17

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92045

BEARING-BALL,#6905

92045-036

$22.57

92045A

BEARING-BALL,TMB204 JR

92045-1041

$32.85

92045B

BEARING-BALL,TMB203LU

92045-1287

$21.29

92045C

BEARING-BALL,TMB205LU

92045-1288

$35.37

92045D

BEARING-BALL,TMB302JR2

92045-1346

$17.61

92045E

BEARING-BALL,TMB306JR2

92045-1347

$40.89

92045F

BEARING-BALL,3TM-6207CJR2

92045-1348

$39.13

92045G

BEARING-BALL,DG204012

92045-1414

$29.10

92049

SEAL-OIL,TC32457

92049-1577

$6.56

92066

PLUG,DRAIN

92066-0070

$2.79

92143

COLLAR

92143-1263

$3.71

92150

BOLT,RETURN SPRING

92150-1803

$9.22

92150A

BOLT,SOCKET,6X50

92150-1874

$4.97

92150B

BOLT,SOCKET,6X35

92150-1875

$4.66

92151

BOLT,FLANGED,6X10

92151-1233

$1.68

92151A

BOLT,6X50

92151-1234

$2.03

92171

CLAMP

92171-1823

$7.47

92171A

CLAMP

92171-1918

$8.53

92190

TUBE

92190-1493

$11.19
