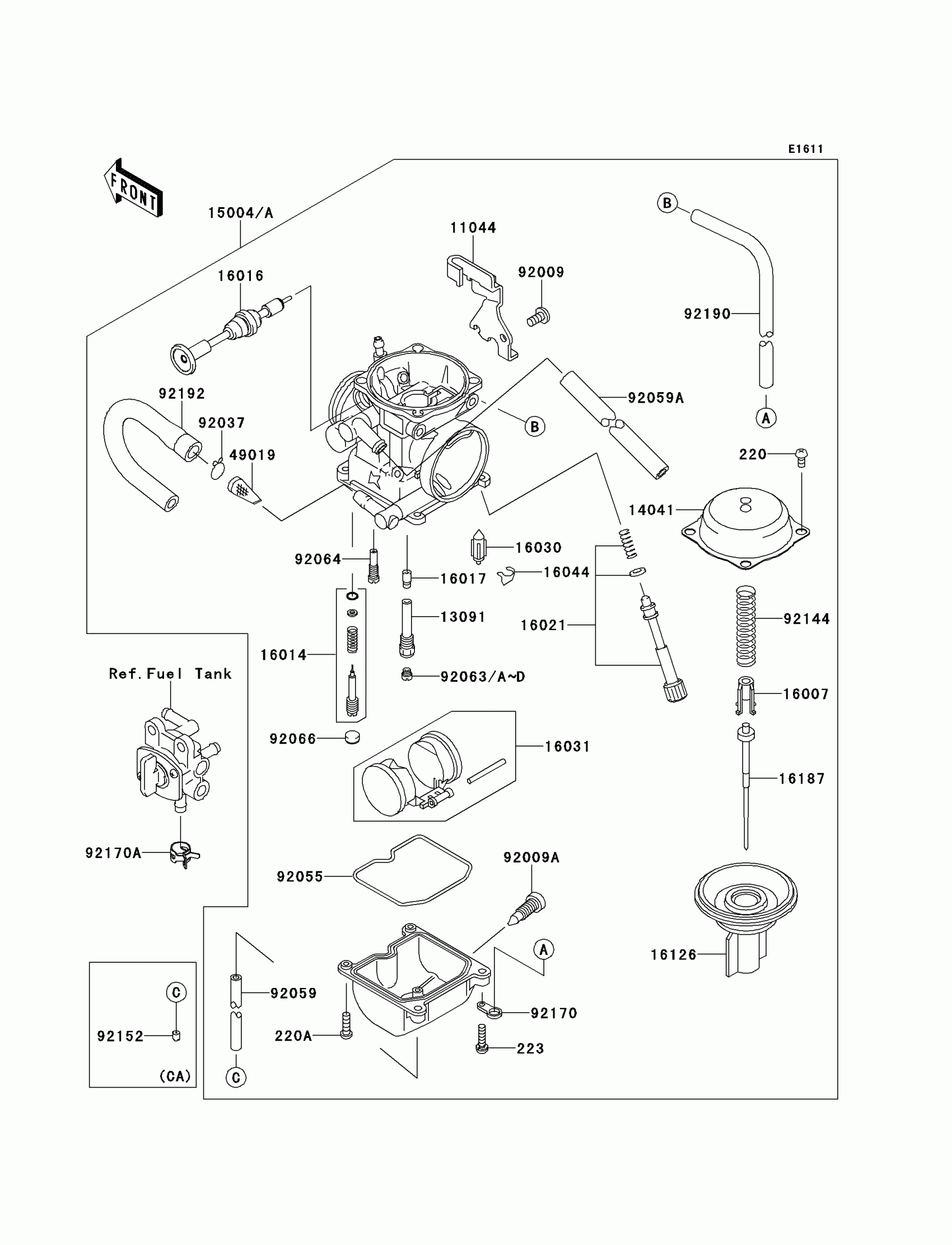

Kawasaki KLX®250SF Carburetor Diagram

#

Description
Price

11044

BRACKET,THROTTLE CABLE

11044-1353

$60.78

13091

HOLDER,NEEDLE JET

13091-1332

$31.12

14041

COVER-COMP,MIXING,INSIDE

14041-1061

$73.52

16007

SEAT-SPRING,VALVE

16007-1117

$20.29

16014

SCREW-PILOT AIR

16014-1081

$19.94

16016

PLUNGER,STARTER

16016-0013

$43.03

16017

JET-NEEDLE

16017-1439

$44.30

16021

SCREW-THROTTLE STOP

16021-1201

$47.83

16030

VALVE-FLOAT

16030-1007

$42.48

16031

FLOAT

16031-1077

$47.31

16044

CLAMP,FLOAT VALVE

16044-007

$6.04

16126

VALVE,VACUUM

16126-1339

$186.82

16187

NEEDLE-JET,NNLA

16187-0284

$39.52

49019

FILTER-FUEL

49019-1097

$7.03

92009

SCREW,5X10

92009-1365

$5.61

92009A

SCREW,DRAIN,M6X0.75

92009-1551

$7.54

92037

CLAMP,FUEL TUBE

92037-1075

$3.03

92055

RING-O,FLOAT CHAMBER

92055-1222

$13.15

92059

TUBE,3.5X6.5X330

92059-1110

Unavailable

92059A

TUBE,6.5X9.5X350

92059-1237

$22.39

92063

JET-MAIN,#118

92063-1071

$14.02

92063A

JET-MAIN,#120

92063-1072

Unavailable

92063B

JET-MAIN,#122

92063-1073

Unavailable

92063C

JET-MAIN,#112

92063-1117

Unavailable

92063D

JET-MAIN,#115

92063-1118

Unavailable

92064

JET-PILOT,#35

92064-1209

$33.84

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$3.85

92144

SPRING,VACUUM VALVE

92144-1538

$21.44

92170

CLAMP,TUBE

92170-1496

$12.42

92170A

CLAMP

92170-1872

$3.05

92190

TUBE,5X8X430

92190-1560

$21.03

220

SCREW-PAN-CROS,4X8

220AA0408

$0.63

220A

SCREW-PAN-CROS,4X14

220AA0414

$3.51

223

SCREW-PAN-WS-CROS,4X16

223AA0416

$0.63

92192

TUBE,FUEL,L=150

92192-0742

$15.47

15004

CARBURETOR-ASSY,CVK34

15004-0023

$596.60

15004A

CARBURETOR-ASSY,CVK34

15004-0029

$596.60

92152

COLLAR,0.8X4.2X5.0

92152-0218

$2.51
