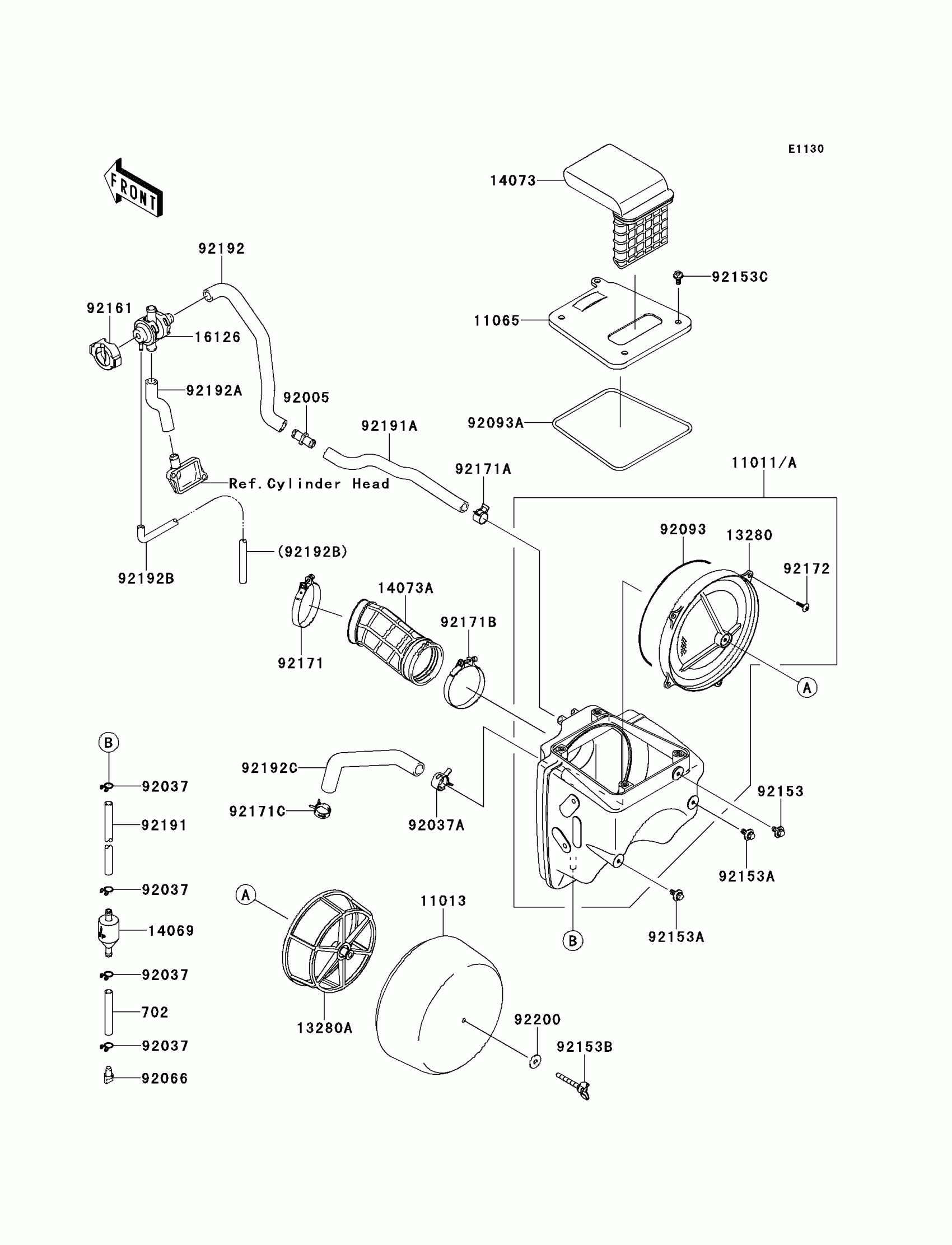

Kawasaki KLX®250SF Air Cleaner Diagram

#

Description
Price

702

TUBE-RUBBER,7X10X70

702A0770

$5.37

11013

ELEMENT-AIR FILTER

11013-0030

$44.27

11065

CAP,AIR FILTER

11065-0232

$30.79

13280

HOLDER

13280-0252

$53.54

13280A

HOLDER

13280-0263

$55.87

14069

BREATHER

14069-1051

$7.76

14073

DUCT,INTAKE

14073-0185

$54.09

14073A

DUCT,AIR FILTER

14073-1790

$39.57

16126

VALVE,AIR SWITING

16126-0032

$94.68

92005

FITTING

92005-1379

$4.66

92037

CLAMP,TUBE

92037-147

$5.61

92037A

CLAMP

92037-1860

Unavailable

92066

PLUG,DRAIN

92066-1211

$6.48

92093

SEAL,3X520

92093-0101

$29.01

92093A

SEAL,4X535

92093-0102

$12.44

92153

BOLT,6X12

92153-0503

$1.98

92153A

BOLT,FLANGED,6X14

92153-0936

$2.09

92153B

BOLT,WING,6X45

92153-1921

$7.76

92153C

BOLT,FLANGED,6X12

92153-1922

$1.81

92161

DAMPER

92161-0482

$7.25

92171

CLAMP

92171-0643

$11.75

92171A

CLAMP

92171-1441

$4.07

92171B

CLAMP,62MM

92171-1687

$8.25

92171C

CLAMP

92171-1890

$9.10

92172

SCREW,5X14

92172-0324

$3.27

92191

TUBE,7X10X300

92191-1556

$10.39

92191A

TUBE,AIR SWITCH-AIR FILTER

92191-1663

$23.63

92192

TUBE,ASV-FITTING

92192-0555

$13.02

92192A

TUBE,ASV-HEAD

92192-0556

$7.75

92192B

TUBE,ASV-CARBURETOR

92192-0557

$11.58

92192C

TUBE,BREATHER

92192-0594

$9.63

92200

WASHER,6.5X20X1.6

92200-0411

$3.27

11011

CASE-AIR FILTER

11011-0096

$152.55

11011A

CASE-AIR FILTER

11011-0097

$152.55
