2013 Kawasaki KLX®250S Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2013 Kawasaki KLX®250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

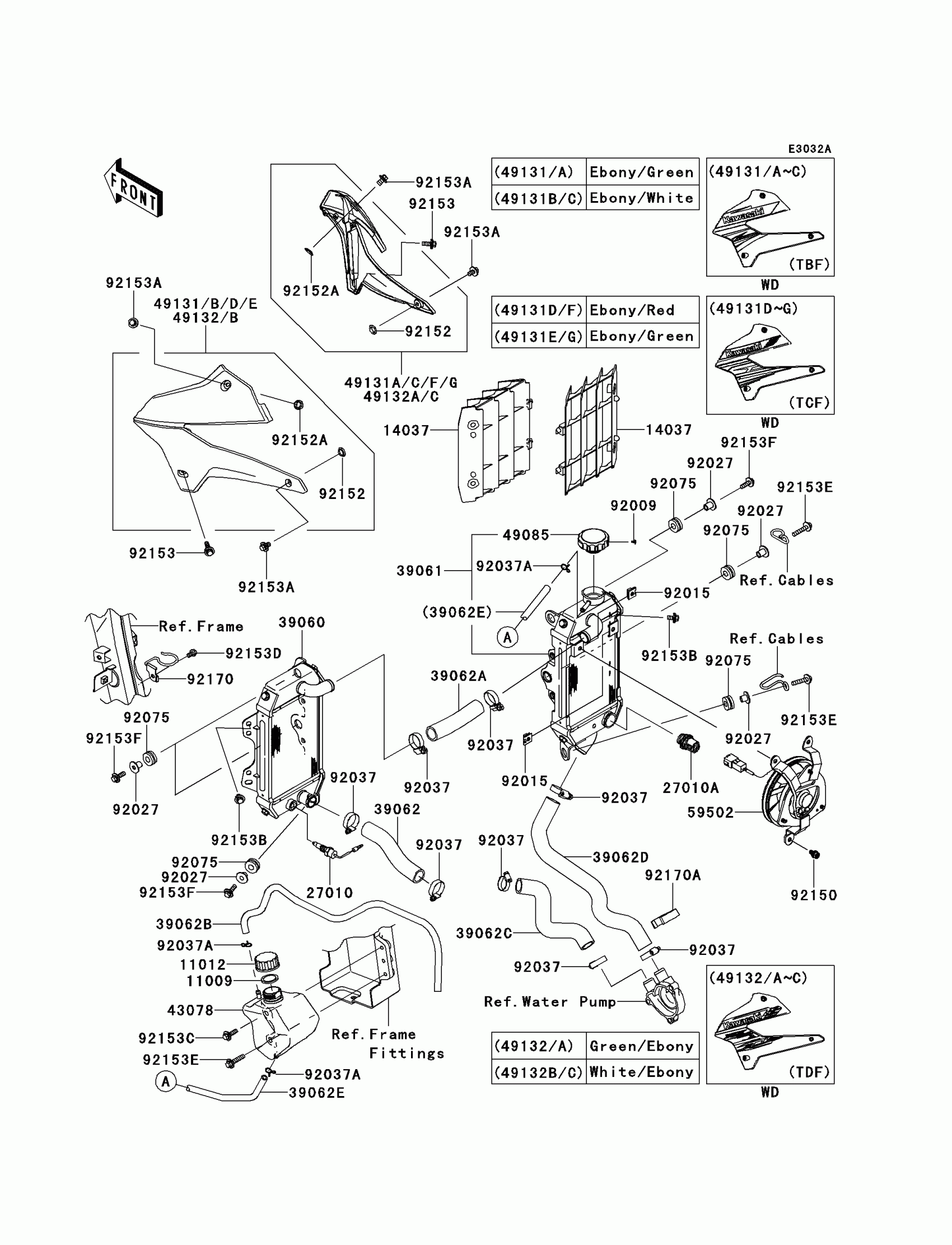

2013 Kawasaki KLX®250S Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11012

CAP

11012-1084

1

$1.31

In stock

14037

SCREEN,EBONY

14037-0067-6C

1

$24.17

In stock

27010

SWITCH,WARNING

27010-1199

1

$141.13

In stock

27010A

SWITCH

27010-1443

1

$132.85

In stock

39060

RADIATOR

39060-0045

1

$348.88

In stock

39061

RADIATOR-ASSY

39061-0184

1

$456.58

In stock

39062

1

$21.34

In stock

39062A

1

$21.34

In stock

39062B

1

$18.19

In stock

39062C

1

$29.37

In stock

39062D

1

$43.44

In stock

39062E

1

$13.90

In stock

43078

RESERVOIR

43078-0044

1

$44.11

In stock

49085

CAP-ASSY-PRESSURE

49085-1075

1

$44.37

In stock

49132

1

$121.75

In stock

49132A

1

$121.75

In stock

49132B

1

$121.75

In stock

49132C

1

$121.75

In stock

59502

FAN-ASSY

59502-0028

1

$582.91

In stock

92009

SCREW,TAPPING,3X6

92009-1844

1
Out of stock

92015

NUT

92015-1487

1

$3.80

In stock

92027

COLLAR,6.5X10X14.1

92027-1183

1

$4.37

In stock

92037

CLAMP,COOLING HOSE

92037-1589

1

$14.60

In stock

92037A

CLAMP

92037-1712

1

$3.97

In stock

92075

1

$3.72

In stock

92150

BOLT,6X12

92150-1186

1

$2.92

In stock

92152

COLLAR,8.8X11.2X4

92152-0909

1

$4.47

In stock

92152A

COLLAR

92152-1235

1

$3.29

In stock

92153

BOLT,6X20

92153-0502

1
Out of stock

92153A

BOLT,6X12

92153-0503

1
Out of stock

92153B

BOLT,FLANGED,6X14

92153-0936

1
Out of stock

92153C

BOLT,FLANGED,6X22

92153-0950

1
Out of stock

92153D

BOLT,FLANGED,6X10

92153-1354

1
Out of stock

92153E

BOLT,FLANGED,6X30

92153-1457

1
Out of stock

92153F

1

$1.81

In stock

92170

CLAMP

92170-1357

1

$14.29

In stock

92170A

CLAMP

92170-1419

1

$4.85

In stock
