2010 Kawasaki KLX®250S Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2010 Kawasaki KLX®250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

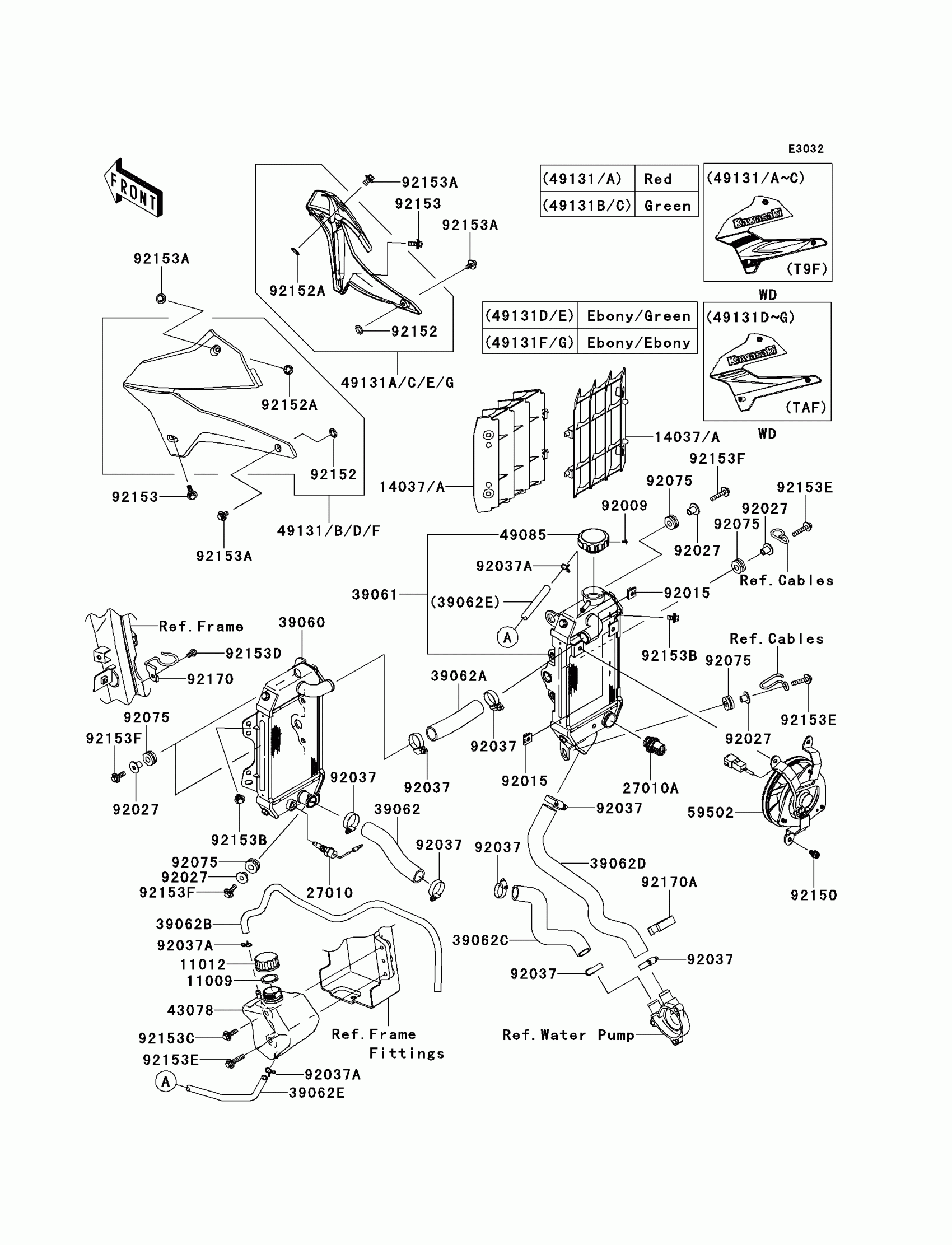

2010 Kawasaki KLX®250S Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,RESERVOIR TANK CAP

11009-1145

1
Out of stock

11012

CAP

11012-1084

1
Out of stock

14037A

SCREEN,EBONY

14037-0067-6C

1
Out of stock

27010

SWITCH,WARNING

27010-1199

1
Out of stock

27010A

SWITCH

27010-1443

1
Out of stock

39060

RADIATOR

39060-0045

1
Out of stock

39061

RADIATOR-ASSY

39061-0184

1
Out of stock

39062

HOSE-COOLING,HEAD-RAD.LH

39062-0199

1
Out of stock

39062A

HOSE-COOLING,RAD.LH-RAD.RH

39062-0200

1
Out of stock

39062B

HOSE-COOLING,OVERFLOW

39062-0204

1
Out of stock

39062C

HOSE-COOLING,PUMP-CYLINDER

39062-1563

1
Out of stock

39062D

HOSE-COOLING,RADIATOR-PUMP

39062-1564

1
Out of stock

39062E

HOSE-COOLING,RESERVOIR

39062-1786

1
Out of stock

43078

RESERVOIR

43078-0044

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-1075

1
Out of stock

49131D

SHROUD-ENGINE,LH,EBONY/GREEN

49131-5275-27W

1
Out of stock

49131E

SHROUD-ENGINE,RH,EBONY/GREEN

49131-5276-27W

1
Out of stock

49131F

SHROUD-ENGINE,LH,EBONY/EBONY

49131-5277-25L

1
Out of stock

49131G

SHROUD-ENGINE,RH,EBONY/EBONY

49131-5278-25L

1
Out of stock

59502

FAN-ASSY

59502-0028

1
Out of stock

92009

SCREW,TAPPING,3X6

92009-1844

1
Out of stock

92015

NUT

92015-1487

1
Out of stock

92027

COLLAR,6.5X10X14.1

92027-1183

1
Out of stock

92037

CLAMP,COOLING HOSE

92037-1589

1
Out of stock

92037A

CLAMP

92037-1712

1
Out of stock

92075

DAMPER RUBBER,RR FENR

92075-209

1
Out of stock

92150

BOLT,6X12

92150-1186

1
Out of stock

92152

COLLAR,8.8X11.2X4

92152-0909

1
Out of stock

92152A

COLLAR

92152-1235

1
Out of stock

92153

BOLT,6X20

92153-0502

1
Out of stock

92153A

BOLT,6X12

92153-0503

1
Out of stock

92153B

BOLT,FLANGED,6X14

92153-0936

1
Out of stock

92153C

BOLT,FLANGED,6X22

92153-0950

1
Out of stock

92153D

BOLT,FLANGED,6X10

92153-1354

1
Out of stock

92153E

BOLT,FLANGED,6X30

92153-1457

1
Out of stock

92153F

BOLT,FLANGED-SMALL,6X22

92153-1560

1
Out of stock

92170

CLAMP

92170-1357

1
Out of stock

92170A

CLAMP

92170-1419

1
Out of stock
