2013 Kawasaki KLX®250S Brake Pedal Diagram

← All diagrams

Find the part on the Brake Pedal diagram for your 2013 Kawasaki KLX®250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

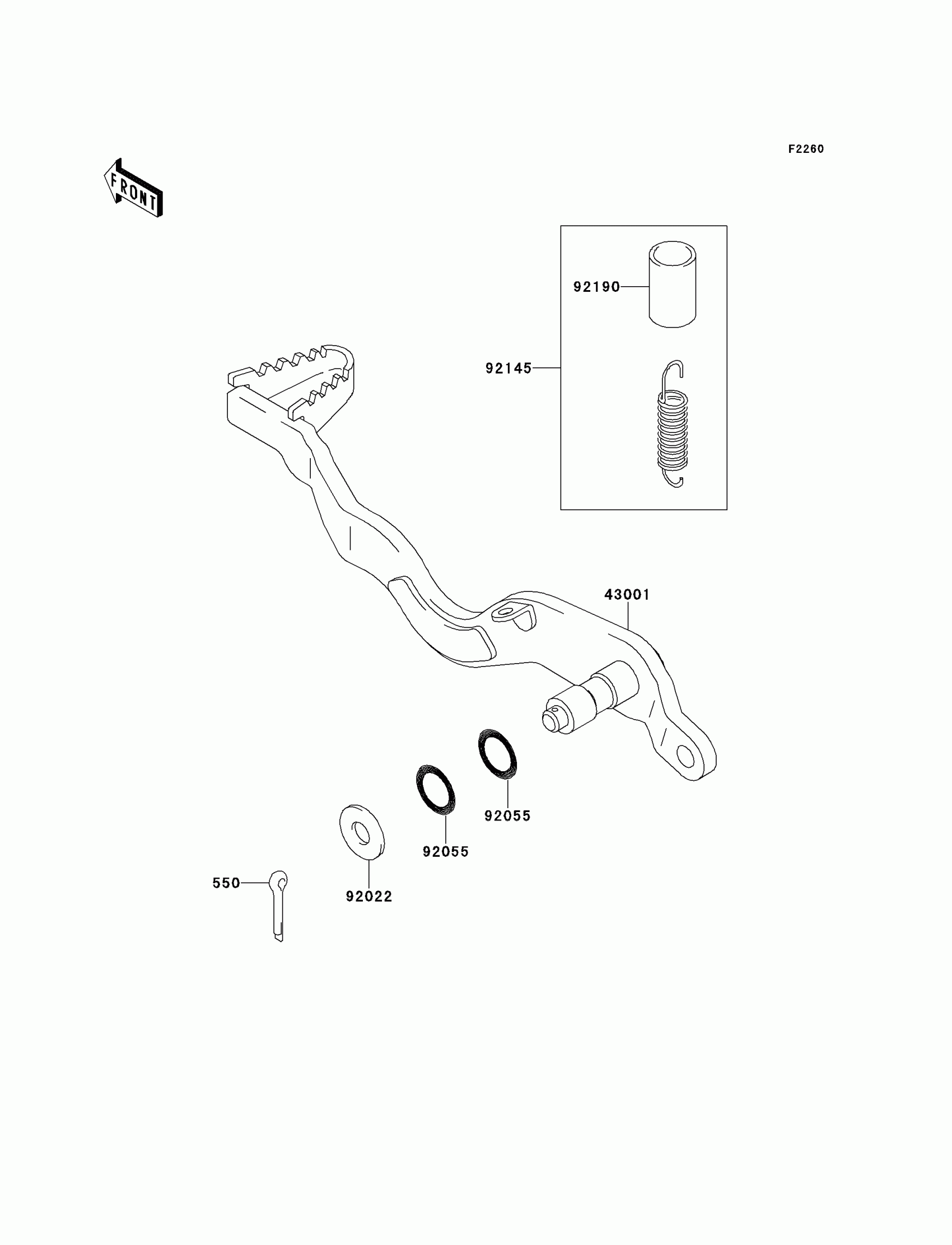

2013 Kawasaki KLX®250S Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

550

PIN-COTTER,2.5X25

550AA2525

1
Out of stock

43001

LEVER-BRAKE,PEDAL

43001-0110

1
Out of stock

92022

WASHER,8.5X20X1.6

92022-1561

1
Out of stock

92055

RING-O,OD=18.5

92055-0168

1
Out of stock

92145

SPRING,BRAKE PEDAL RETURN

92145-0684

1
Out of stock

92190

TUBE,13X16X25

92190-1488

1
Out of stock
