2013 Kawasaki KLX®250S Air Cleaner Diagram

← All diagrams

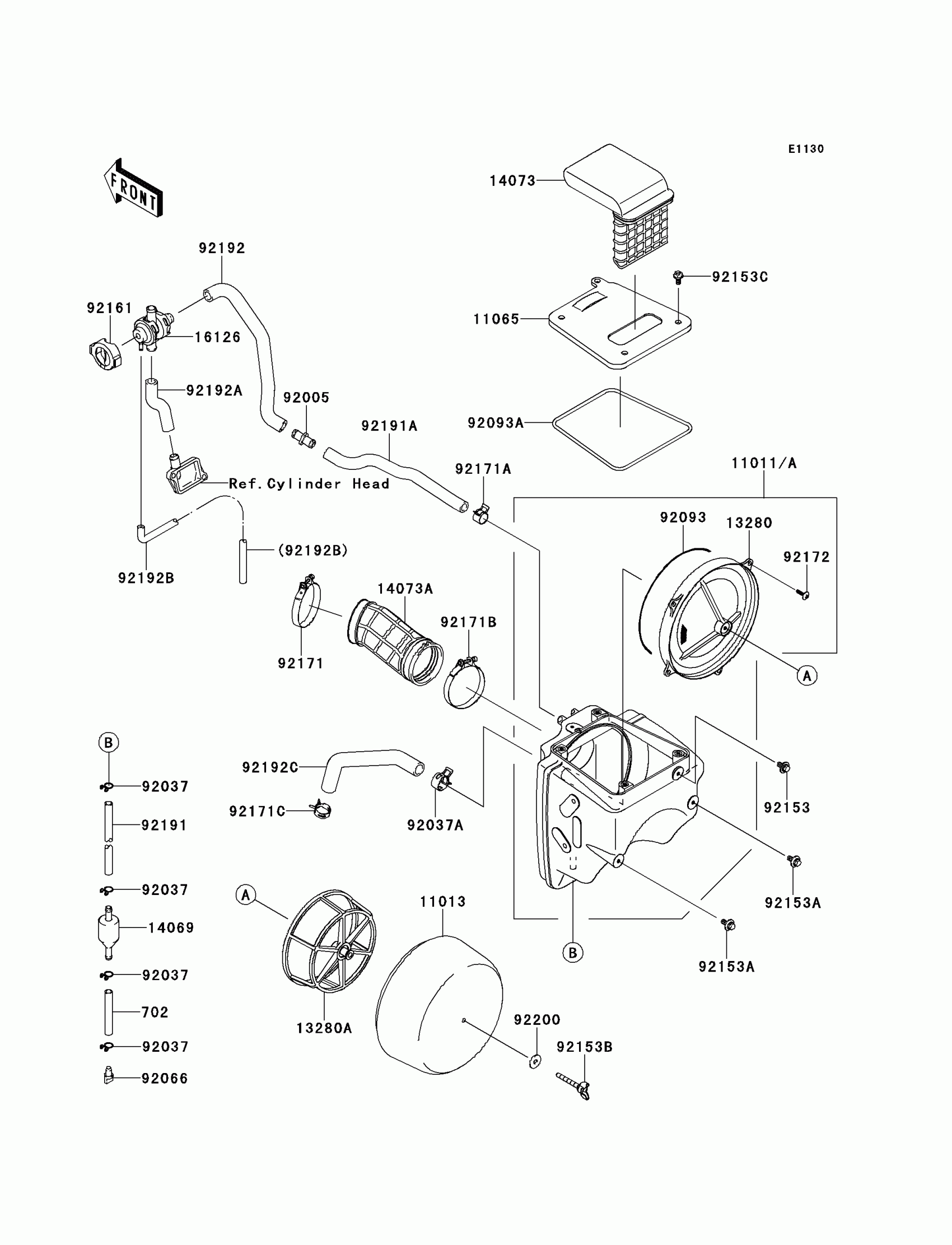

Find the part on the Air Cleaner diagram for your 2013 Kawasaki KLX®250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Kawasaki KLX®250S Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

702

1

$5.37

In stock

11013

ELEMENT-AIR FILTER

11013-0030

1

$45.32

In stock

11065

CAP,AIR FILTER

11065-0232

1

$30.79

In stock

13280

HOLDER

13280-0252

1

$53.54

In stock

13280A

HOLDER

13280-0263

1

$55.87

In stock

14069

BREATHER

14069-1051

1

$8.09

In stock

14073

DUCT,INTAKE

14073-0185

1

$54.09

In stock

14073A

DUCT,AIR FILTER

14073-1790

1

$39.57

In stock

16126

VALVE,AIR SWITING

16126-0032

1

$94.68

In stock

92005

FITTING

92005-1379

1
Out of stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92037A

CLAMP

92037-1860

1
Out of stock

92066

PLUG,DRAIN

92066-1211

1

$6.75

In stock

92093

SEAL,3X520

92093-0101

1

$29.01

In stock

92093A

SEAL,4X535

92093-0102

1

$12.44

In stock

92153

BOLT,6X12

92153-0503

1
Out of stock

92153A

BOLT,FLANGED,6X14

92153-0936

1
Out of stock

92153B

BOLT,WING,6X45

92153-1921

1

$7.76

In stock

92153C

BOLT,FLANGED,6X12

92153-1922

1

$2.10

In stock

92161

DAMPER

92161-0482

1

$7.25

In stock

92171

CLAMP

92171-0643

1

$11.75

In stock

92171A

CLAMP

92171-1441

1

$4.07

In stock

92171B

CLAMP,62MM

92171-1687

1

$8.25

In stock

92171C

CLAMP

92171-1890

1

$9.10

In stock

92172

SCREW,5X14

92172-0324

1

$3.27

In stock

92191

TUBE,7X10X300

92191-1556

1

$10.39

In stock

92191A

TUBE,AIR SWITCH-AIR FILTER

92191-1663

1
Out of stock

92192

TUBE,ASV-FITTING

92192-0555

1
Out of stock

92192A

TUBE,ASV-HEAD

92192-0556

1
Out of stock

92192B

TUBE,ASV-CARBURETOR

92192-0557

1
Out of stock

92192C

TUBE,BREATHER

92192-0594

1
Out of stock

92200

WASHER,6.5X20X1.6

92200-0411

1
Out of stock

11011

CASE-AIR FILTER

11011-0096

1

$152.55

In stock

11011A

CASE-AIR FILTER

11011-0097

1

$152.55

In stock
