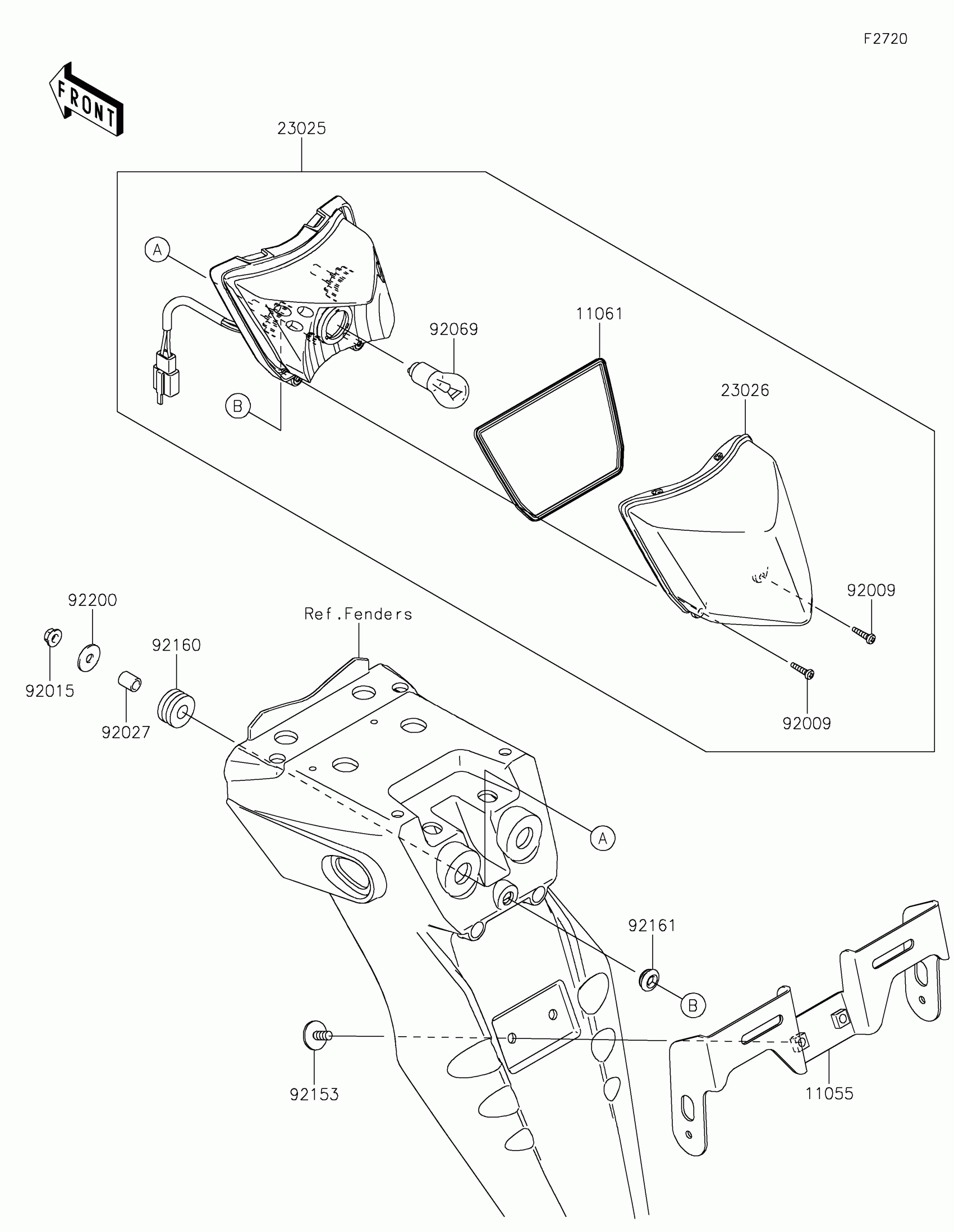

Kawasaki KLX®250 Taillight(s) Diagram

Description

Price

11055

BRACKET,LICENSE

11055-1187

$37.49

11061

GASKET,TAIL LAMP LENS

11061-0326

$11.07

23025

LAMP-TAIL

23025-0051

$118.36

23026

LENS,TAIL LAMP

23026-0012

$25.00

92009

SCREW,TAPPING,4X16

92009-1605

$3.17

92015

NUT,FLANGED,6MM

92015-1367

$2.93

92027

COLLAR,6.8X10X12

92027-162

$5.21

92069

BULB,12V 21/5W

92069-1084

$5.84

92153

BOLT,6X16

92153-0684

$3.56

92160

DAMPER

92160-1162

$3.97

92161

DAMPER

92161-0631

$5.87

92200

WASHER,6.5X20X1.6

92200-1962

$2.97
