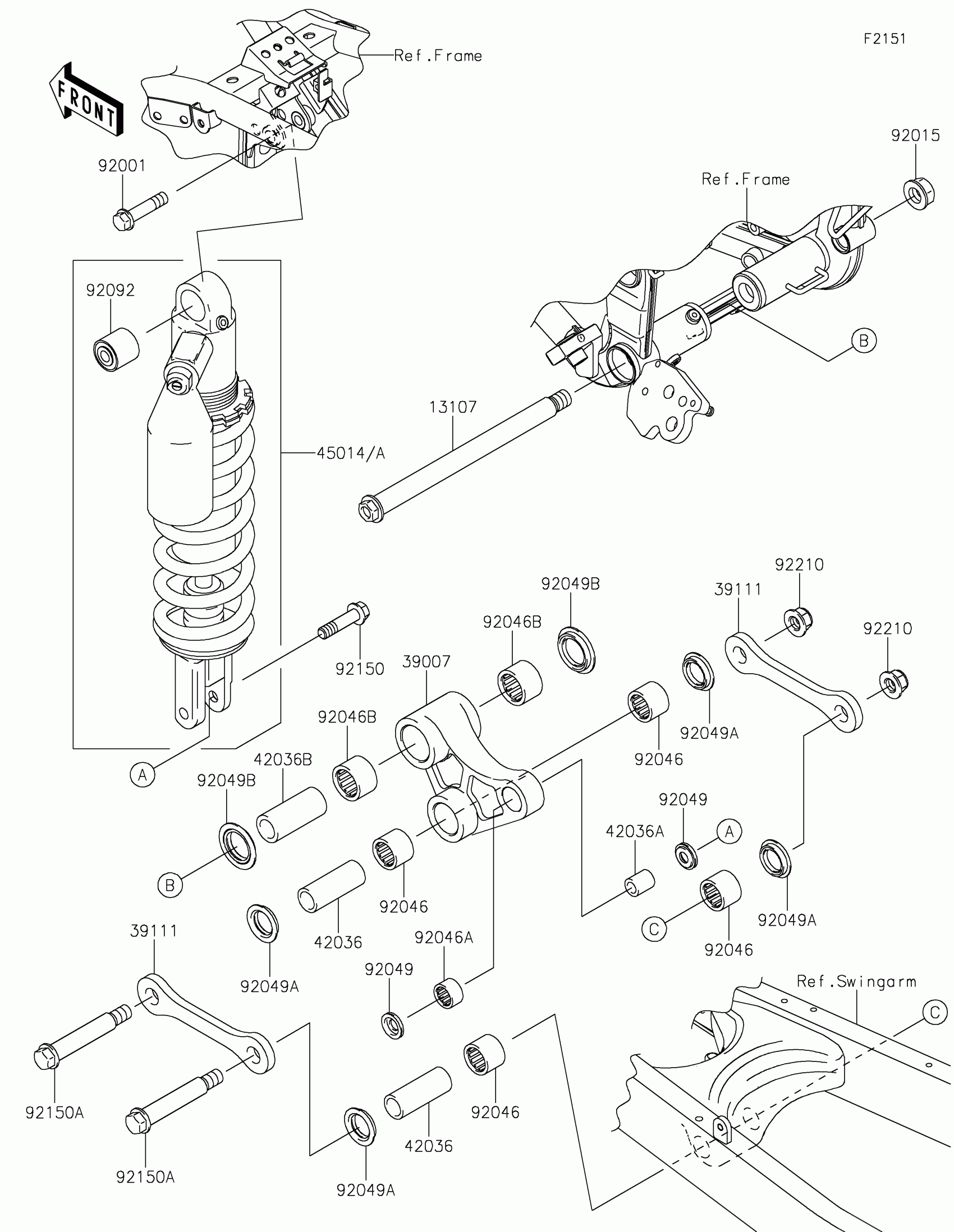

Kawasaki KLX®250 Suspension/Shock Absorber Diagram

Description

Price

13107

SHAFT,ARM,14MM

13107-0198

$57.59

39007

ARM-SUSP,UNI TRAK

39007-0100

$319.80

39111

ROD-TIE,SUSPENSION

39111-0053

$73.03

42036

SLEEVE,15X22X57

42036-1245

$19.97

42036A

SLEEVE,10X16X19

42036-1248

$7.86

42036B

SLEEVE,17X25X57

42036-1318

$19.97

45014

SHOCKABSORBER,SPG GRN+BODY BLK

45014-0246-37X

$1,561.60

92001

BOLT,FLANGED,10X44

92001-1499

$4.37

92015

NUT,14MM

92015-1407

$7.86

92046

BEARING-NEEDLE,F-2220

92046-1162

$19.68

92046A

BEARING-NEEDLE,16BM2212

92046-1192

$14.31

92046B

BEARING-NEEDLE,BM2520

92046-1228

$19.92

92049

SEAL-OIL

92049-0069

$9.74

92049A

SEAL-OIL,MHA22 28 5.7F

92049-1254

$7.38

92049B

SEAL-OIL,MF025N1

92049-1426

$9.92

92092

BUSHING-RUBBER,SHOCKABSORBER

92092-1062

$29.37

92150

BOLT,FLANGED,10X40

92150-1711

$9.78

92150A

BOLT,ROD,12X90

92150-1812

$18.36

92210

NUT,LOCK,FLANGED,12MM

92210-0348

Unavailable
