2019 Kawasaki KLX®250 Rear Master Cylinder Diagram

← All diagrams

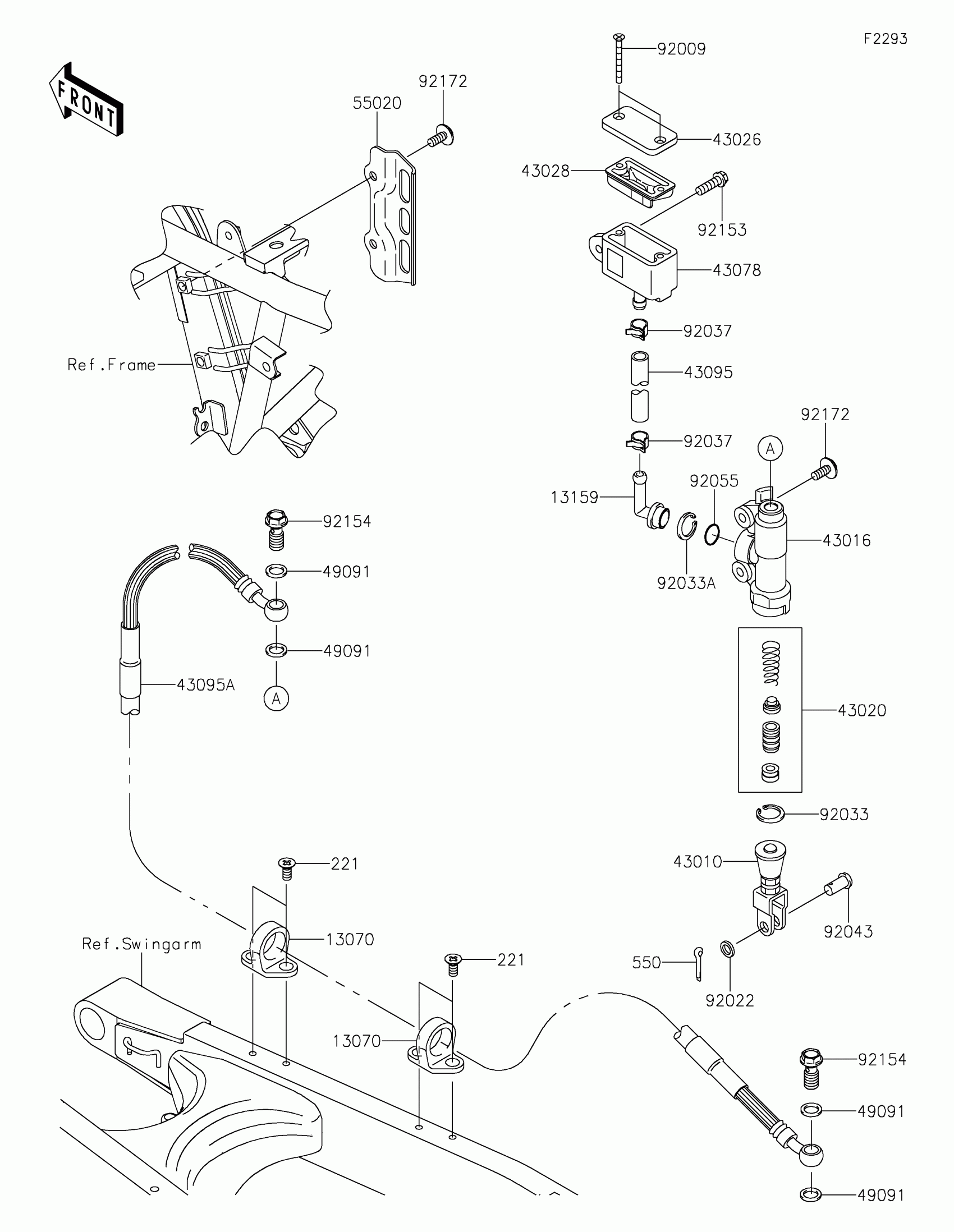

Find the part on the Rear Master Cylinder diagram for your 2019 Kawasaki KLX®250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Kawasaki KLX®250 Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE,HOSE

13070-1144

1
Out of stock

13159

CONNECTOR

13159-1056

1
Out of stock

43010

ROD-ASSY-BRAKE

43010-1068

1
Out of stock

43016

CYLINDER-MASTER

43016-1149

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1094

1
Out of stock

43026

CAP-BRAKE

43026-1075

1
Out of stock

43028

DIAPHRAGM

43028-1067

1
Out of stock

43078

RESERVOIR

43078-1189

1
Out of stock

43095

HOSE-BRAKE,RR MASTER CYLINDER

43095-0451

1
Out of stock

43095A

HOSE-BRAKE,RR

43095-0691

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

55020

GUARD,RR BRAKE RESERVOIR HOSE

55020-1489

1
Out of stock

92009

SCREW,4X40

92009-1596

1
Out of stock

92022

WASHER,8.5X13X1

92022-1028

1
Out of stock

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

1
Out of stock

92033A

RING-SNAP,20.5MM

92033-1186

1
Out of stock

92037

CLAMP

92037-1710

1
Out of stock

92043

PIN

92043-0004

1
Out of stock

92055

RING-O,14.8X2.4

92055-0741

1
Out of stock

92153

BOLT,6X20

92153-0502

1
Out of stock

92154

BOLT,FLANGED,10X23

92154-0732

1
Out of stock

92172

SCREW,6X14

92172-0401

1
Out of stock

221

SCREW-CSK-CROS,6X10

221AA0610

1
Out of stock

550

PIN-COTTER,2.0X15

550AA2015

1
Out of stock
