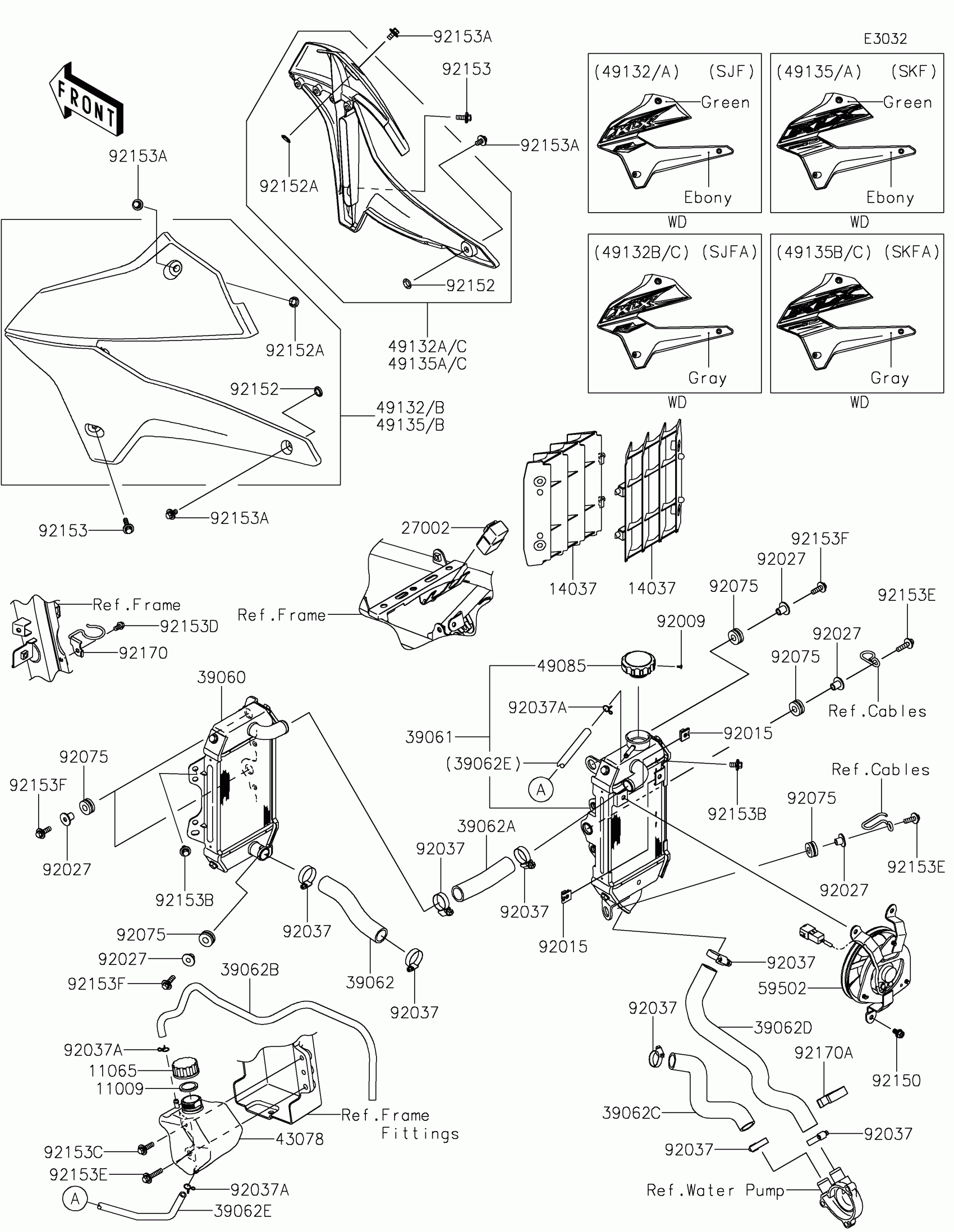

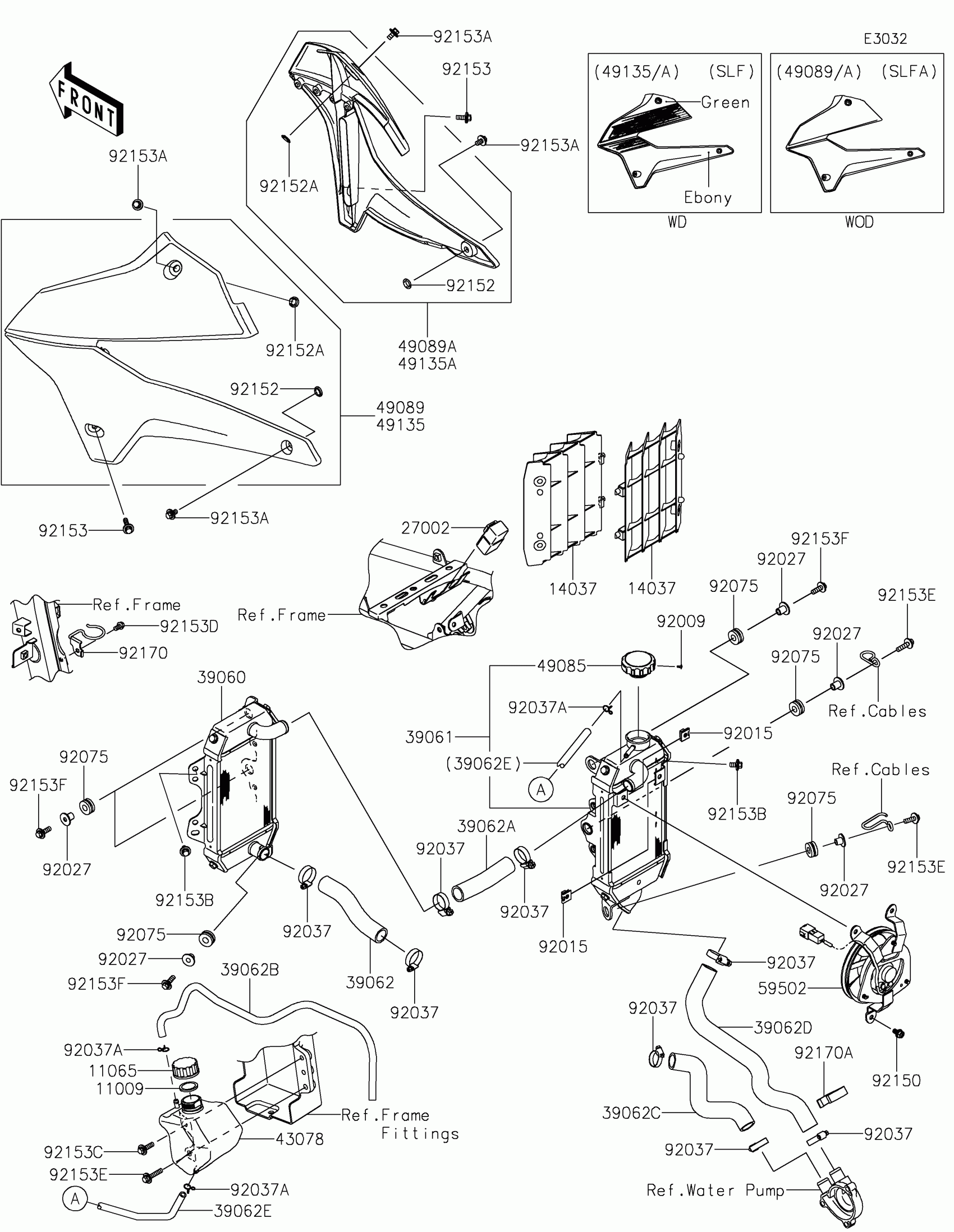

Kawasaki KLX®250 Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11065

CAP

11065-0969

$1.46

14037

SCREEN,EBONY

14037-0067-6C

$24.17

27002

RELAY-ASSY

27002-1086

$32.97

39060

RADIATOR,LH

39060-0038

$333.04

39061

RADIATOR-ASSY,RH

39061-0182

$463.13

39062

HOSE-COOLING,HEAD-RAD.LH

39062-0199

$21.34

39062A

HOSE-COOLING,RAD.LH-RAD.RH

39062-0200

$21.34

39062B

HOSE-COOLING,OVERFLOW

39062-0204

$18.19

39062C

HOSE-COOLING,PUMP-CYLINDER

39062-1563

$29.37

39062D

HOSE-COOLING,RADIATOR-PUMP

39062-1564

$43.44

39062E

HOSE-COOLING,RESERVOIR

39062-1786

$13.90

43078

RESERVOIR

43078-0044

$46.02

49085

CAP-ASSY-PRESSURE

49085-1075

$44.37

49135

SHROUD-ENGINE,LH,L.GREEN+EBY

49135-5041-25M

$252.64

49135A

SHROUD-ENGINE,RH,L.GREEN+EBY

49135-5042-25M

$252.64

59502

FAN-ASSY

59502-0028

$582.91

92009

SCREW,TAPPING,3X6

92009-1844

$0.71

92015

NUT

92015-1487

$3.64

92027

COLLAR,6.5X10X14.1

92027-1183

$4.18

92037

CLAMP,COOLING HOSE

92037-1589

$14.01

92037A

CLAMP

92037-1712

$3.82

92075

DAMPER RUBBER,RR FENR

92075-209

$3.57

92150

BOLT,6X12

92150-1186

$2.56

92152

COLLAR,8.8X11.2X4

92152-0909

$4.27

92152A

COLLAR

92152-1235

$3.19

92153

BOLT,6X20

92153-0502

$1.98

92153A

BOLT,6X12

92153-0503

$1.98

92153B

BOLT,FLANGED,6X14

92153-0936

$2.09

92153C

BOLT,FLANGED,6X22

92153-0950

$3.03

92153D

BOLT,FLANGED,6X10

92153-1354

$2.15

92153E

BOLT,FLANGED,6X30

92153-1457

$2.71

92153F

BOLT,FLANGED-SMALL,6X22

92153-1560

$1.81

92170

CLAMP

92170-1357

$14.29

92170A

CLAMP

92170-1419

$4.85
